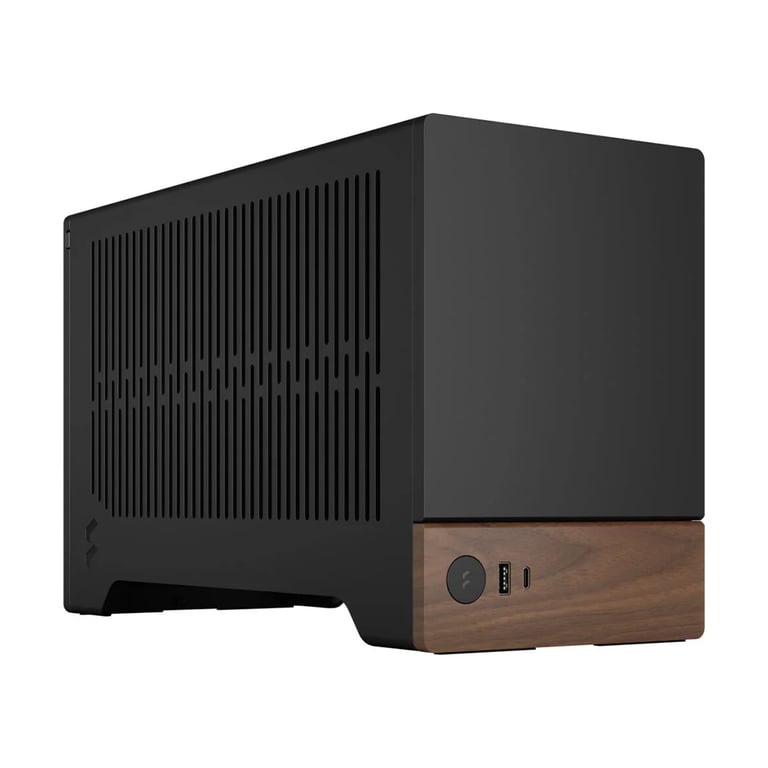

Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.
- • Install your choice of powerful GPU up to 322 mm in length, in a space-saving 10.4 L case
- • Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
- • Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
Elegantly crafted
Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front

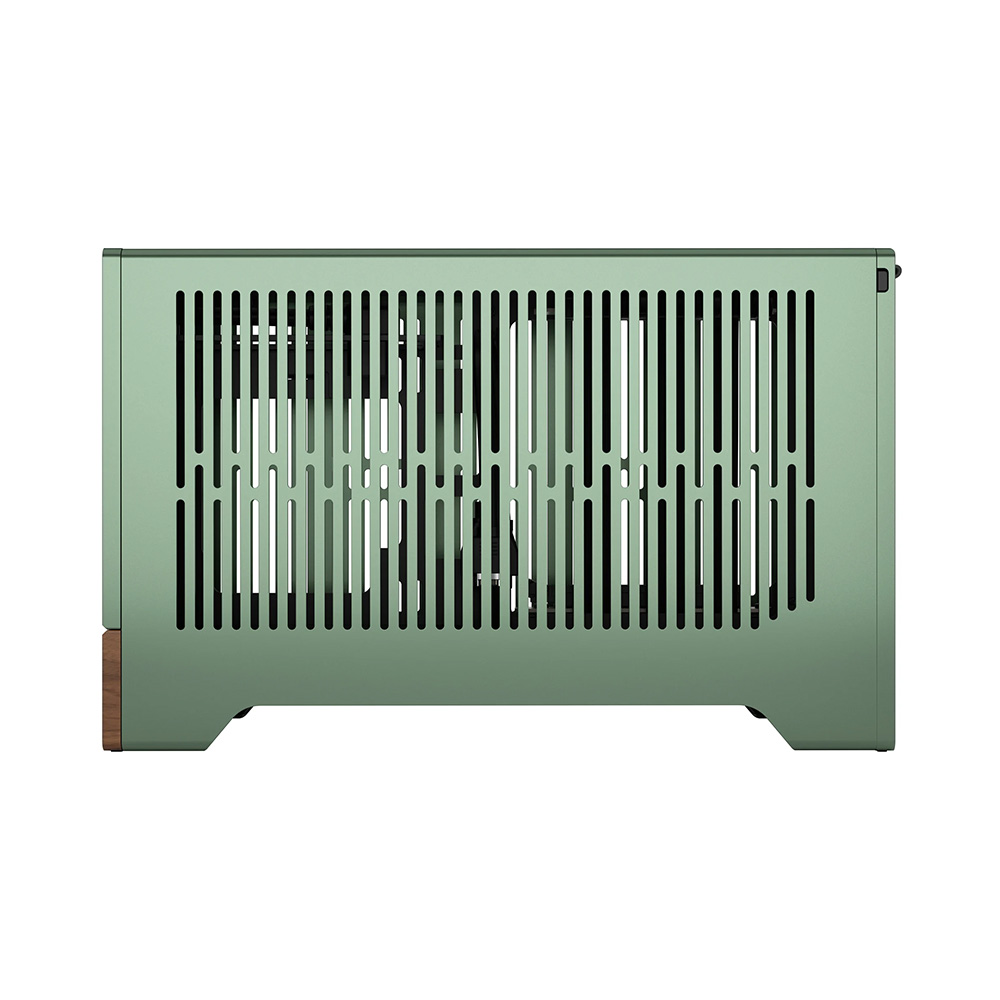

Make the most of natural airflow through the ventilated top, side and bottom panels
Engineered for SFF gaming
Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case
Get a head start on your build with the included PCIe 4.0 riser cable
Store up to two SSDs in the dedicated 2.5” drive mounts
Choose your accent

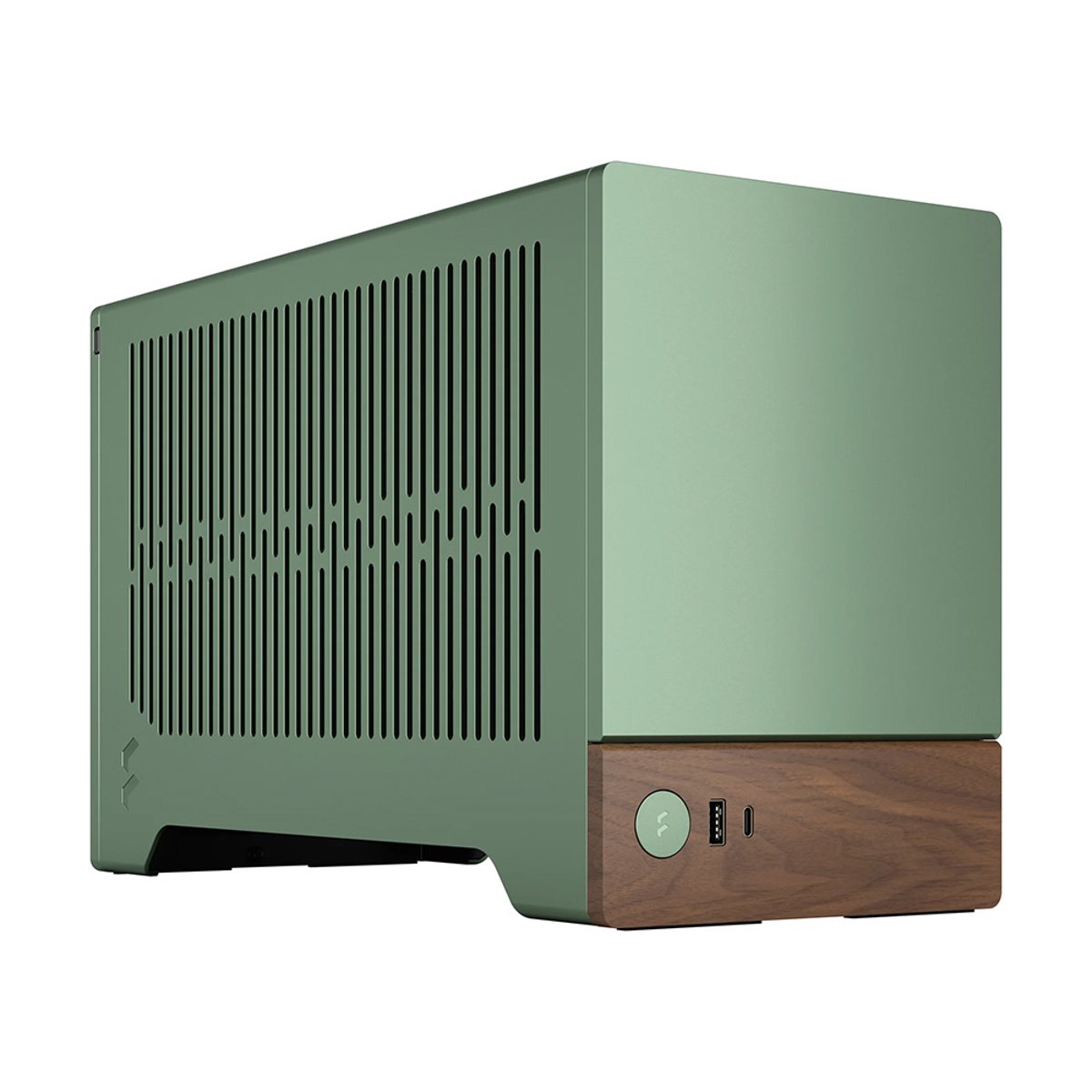

The Terra is available in your choice of three distinct anodized aluminum versions to perfectly complement and elevate your gaming space
Adjustable motherboard plate

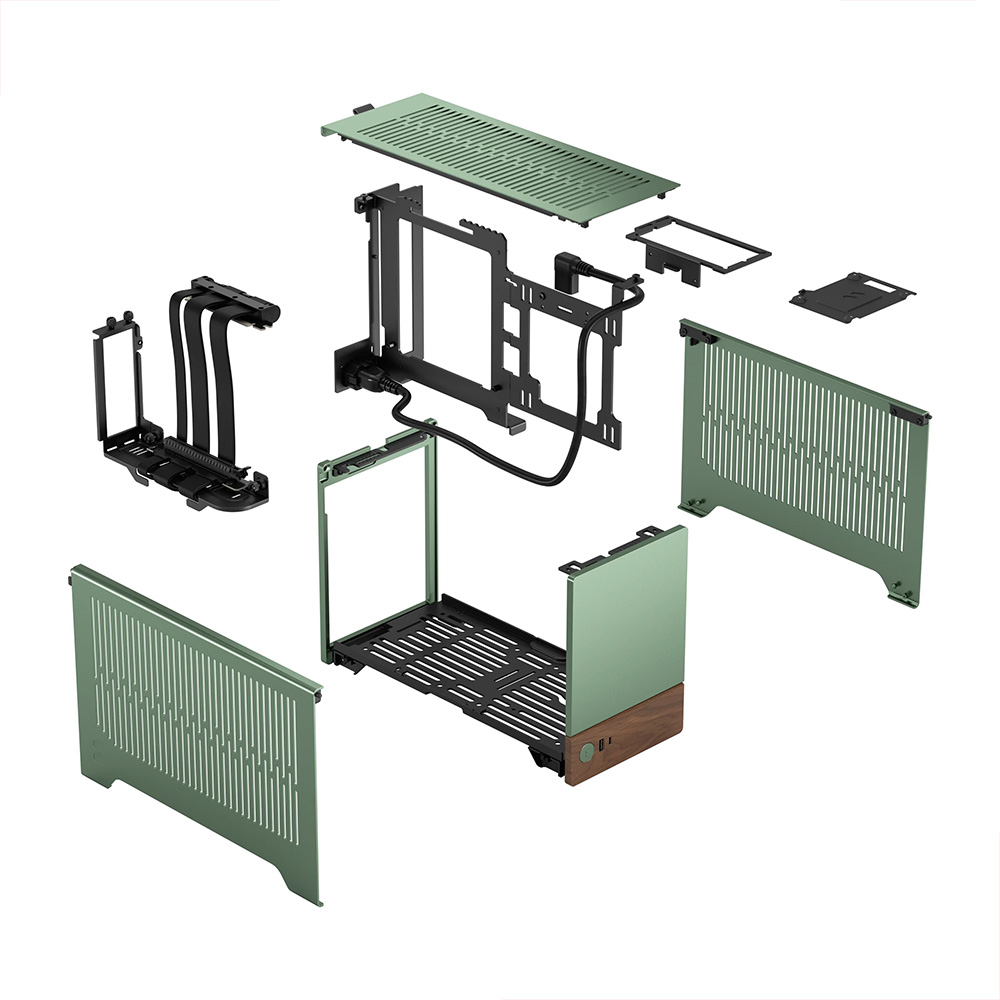

Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall
Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other
Natural material

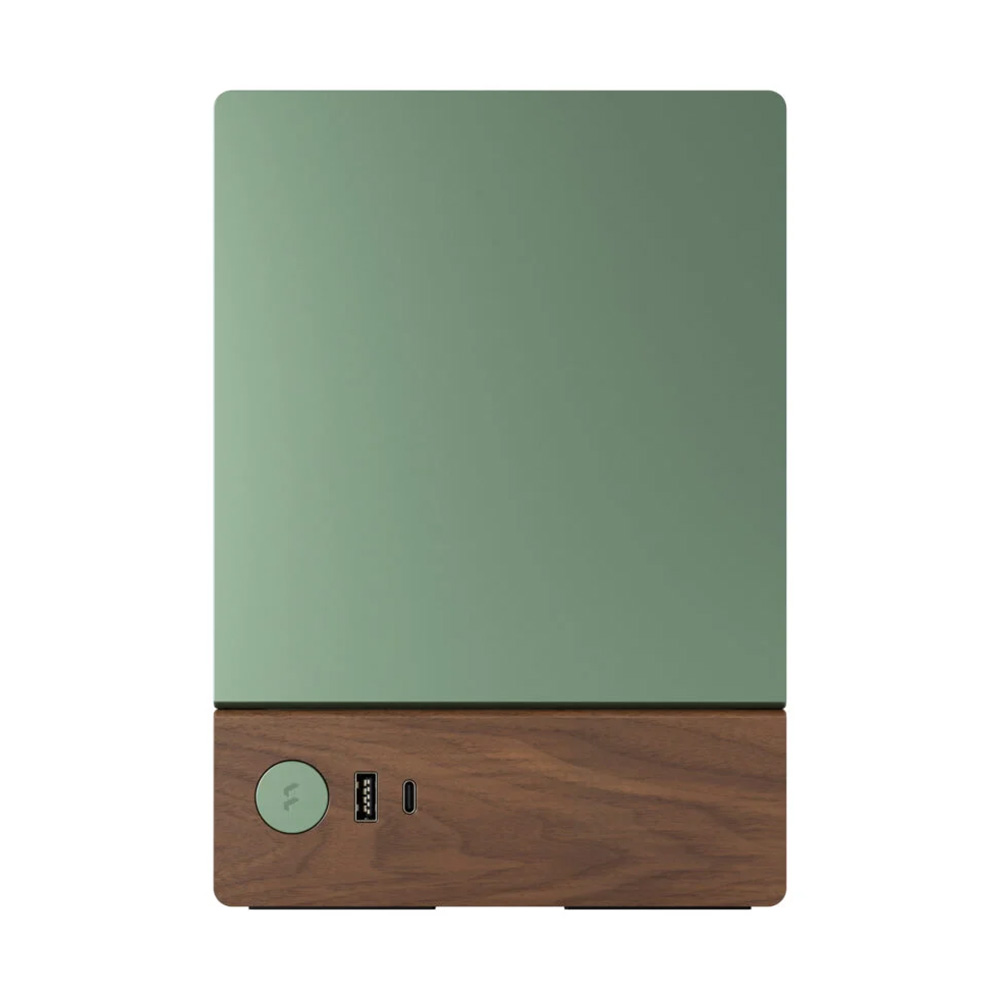

Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.
產品規格
Dedicated 2.5" drive mounts 2 (included)
Expansion slots 3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)
Front interface 1x USB Type-C 20Gbps (USB 3.2 Gen 2x2), 1x USB Type-A 5Gbps (USB 3.0), Power Button
Total fan mounts 1x 120 mm
Bottom fan 1x 120 mm
Tool-less push-to-lock Both side panels and top panel (can also be locked with screws)
Compatibility
Motherboard compatibility mITX
Power supply type SFX-L/ SFX
PSU max length 130 mm
Side radiator 1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)
GPU max length 322 mm
GPU max width (if GPU height is lower than 131 mm)
72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)
GPU max width (if GPU height 131-145mm)
62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)
GPU max height
145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)
*CPU cooler max height
48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)
*Additional comment
Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.
Dimensions
Case dimensions (LxWxH) 343 x 153 x 218 mm
Package dimensions (LxWxH) 394 x 215 x 292 mm
Net weight 3.1 kg
Gross weight 4.0 kg
Volume 10.4 liter
Other
Package Contents Case, Accessory box, Manual
Warranty 2 Years
