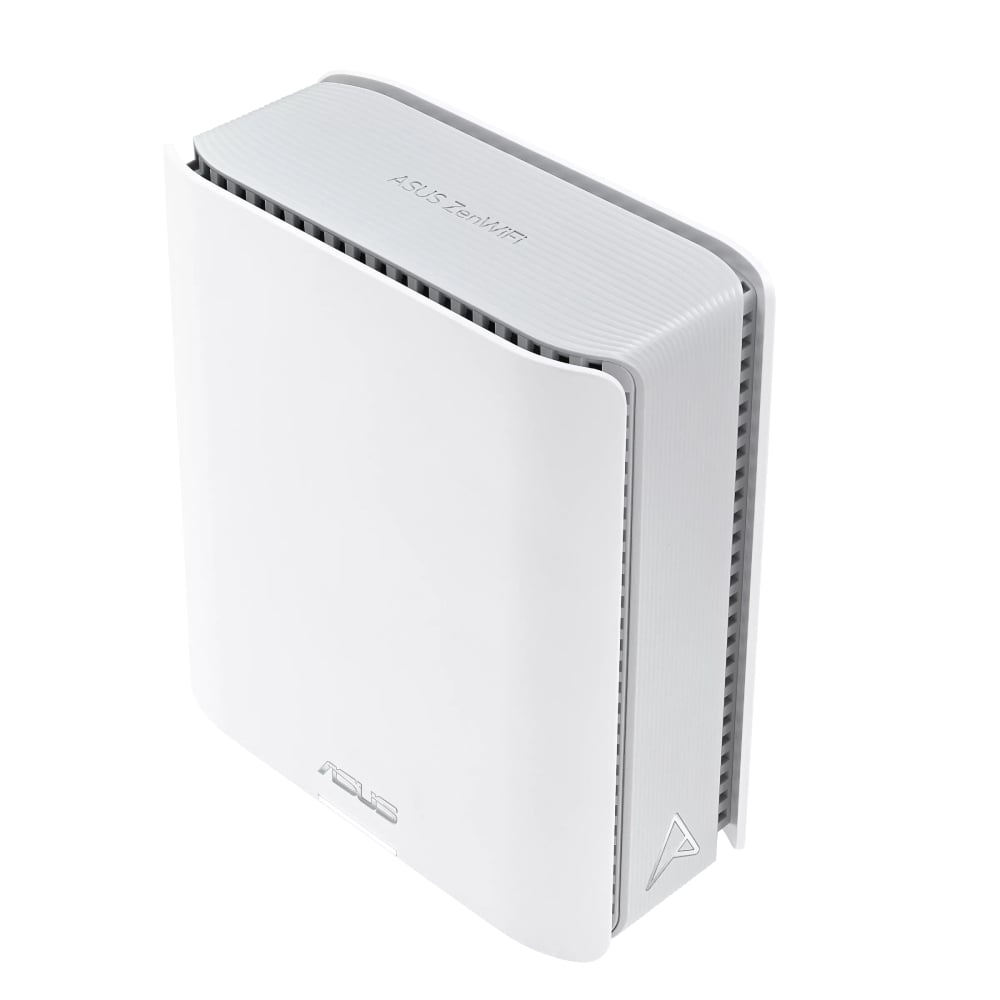

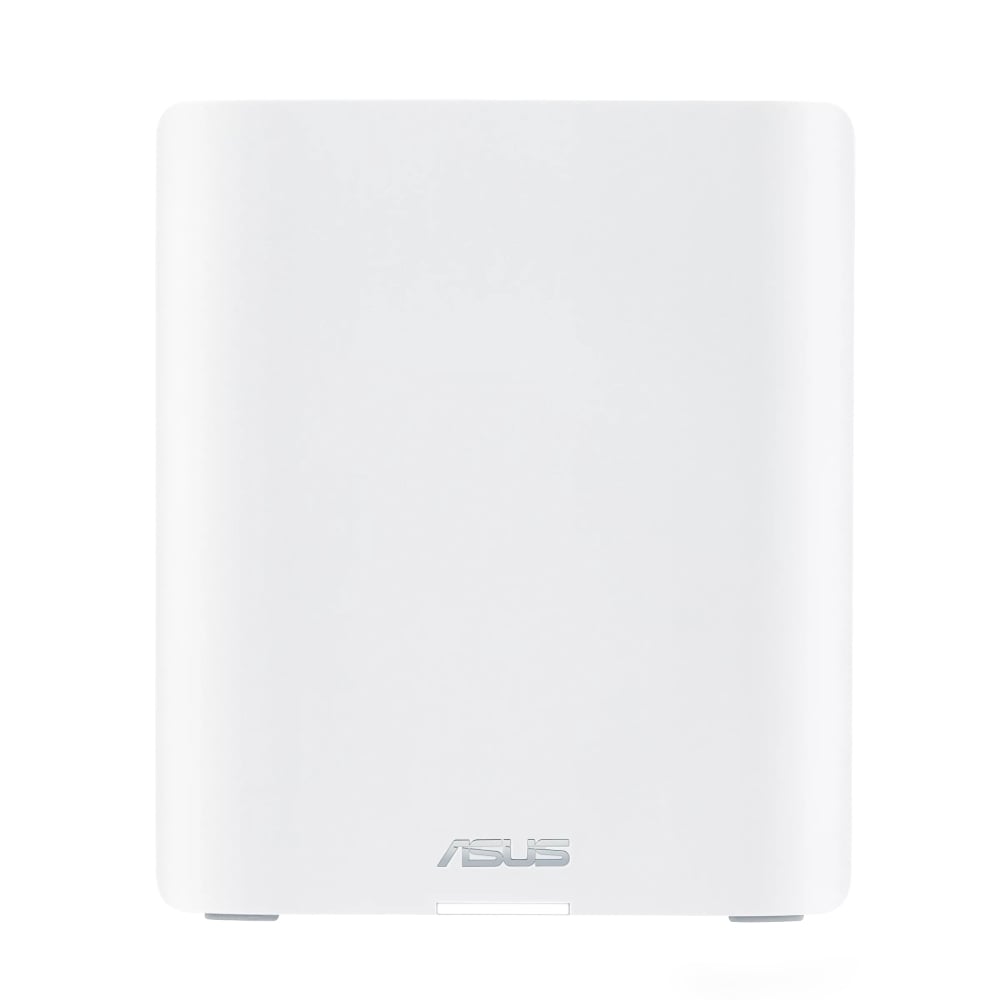

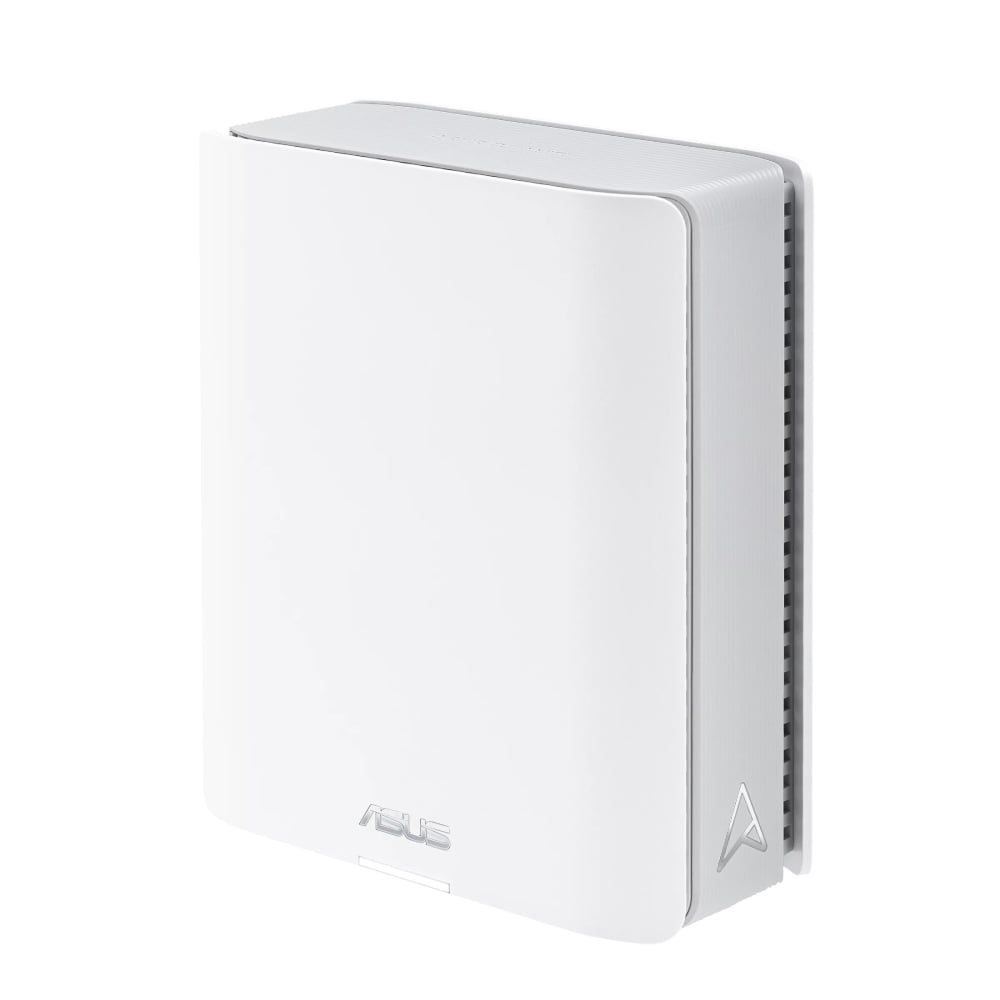

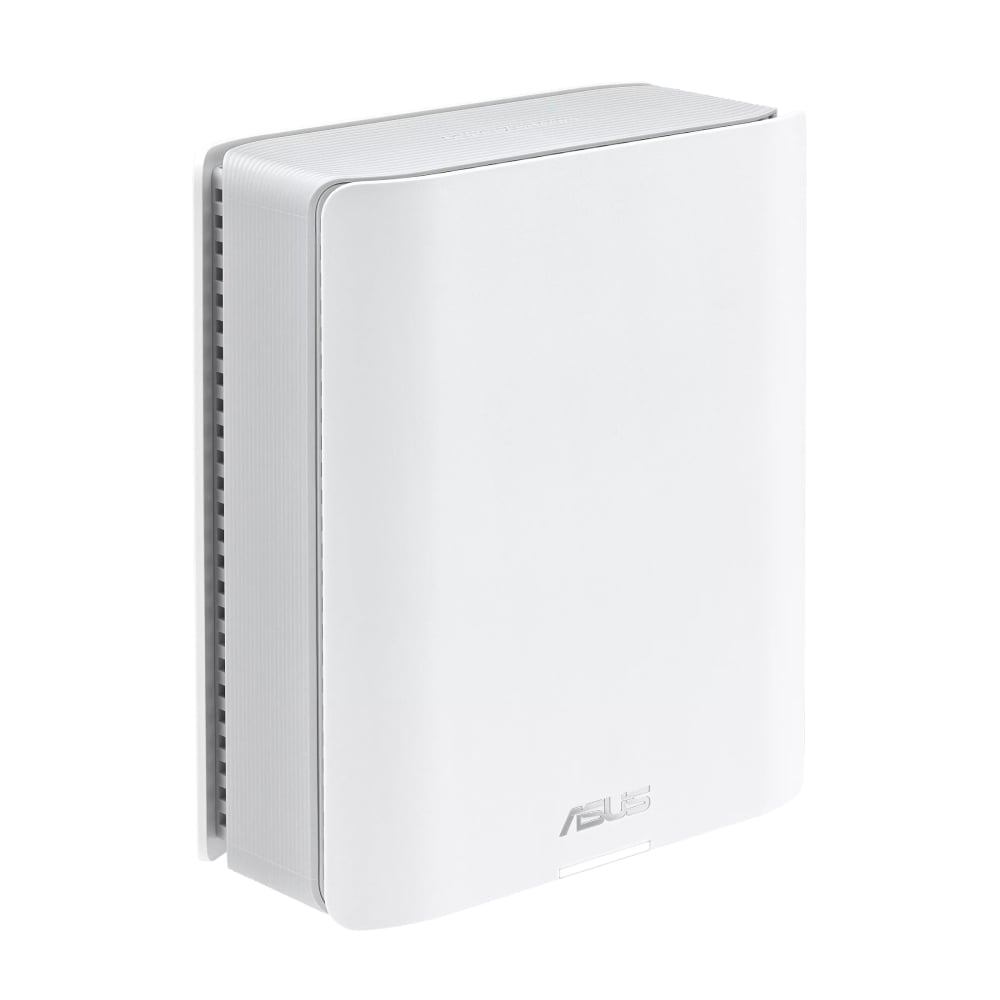

Tri-band WiFi 7 (802.11be) Smart AiMesh Extendable Router, 6 GHz WiFi, 14 Gbps, Coverage up to 5900 sq. ft. (2pk), Dual 2.5G Ports, Up to 3 SSIDs for IoT Devices, Parental Controls & VPNs, Advanced Network Security
- Tri-band WiFi 7 speeds up to 14 Gbps with 6 GHz WiFi, MLO, and 4K-QAM
- AI-powered Smart AiMesh boosts coverage up to 5900 sq. ft. (2-pack) and easy extendibility with compatible ASUS routers for seamless and secure whole home WiFi
- Seven internal antennas and eight high-power front-end modules eliminates WiFi dead zones
- 24/7 end-to-end protection with commercial-grade AiProtection and advanced VPNs
- IoT Network, parental controls & VPN easy setup on multiple devices with Smart Home Master SSIDs
- Flexible dual 2.5G Ethernet ports for superfast wired backhaul
- 4G LTE/5G Mobile Tethering for always-on internet
產品規格
Model
ASUS ZenWiFi BT8
Model Name
BT8(W-3-PK)
BT8(W-2-PK)
BT8(W-1-PK)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE14000 ultimate BE performance : 688+4323+8643 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 4323 Mbps
WiFi 7 (802.11be) (6GHz): up to 8643 Mbps
Antenna
Internal antennas x 7
Transmit / Receive
2.4GHz 2x2
5GHz 3x3
6GHz 3x3
Memory
RAM 1GB , Flash 128MB
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
6 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode

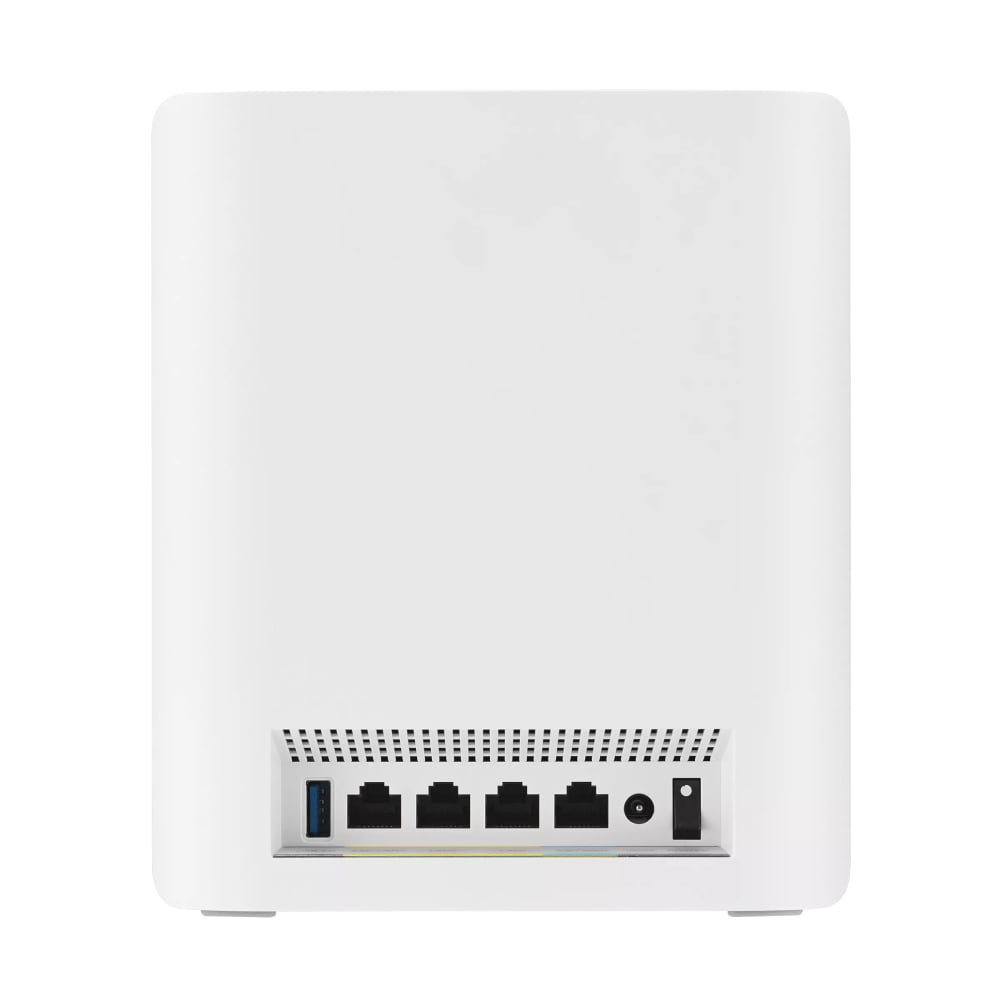

I/O Ports
2.5G WAN x 1
2.5G LAN x 1
1G LAN x 2
USB 3.0 x1
Buttons
WPS button, Reset button, Power switch
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 3A current
Package Content
ZenWiFi BT8
RJ45 cable
Power adapter
Warranty card
Quick start guide
Product Dimensions
159 x 72 x 186 mm
Remark
Content may vary in different regions and packages.
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Reward
Parental Control - Safe Browsing
Customized Internet Schedule
Router APP
APP: ASUS Router APP
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network
Security
AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall
AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
Traffic Analyzer
• Website History
WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS
Dual WAN
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
4G / 5G Auto Mobile Tethering
HDD Hibernation
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Administration
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Smart Home
Support Google Assistant
