產品規格
- AMD sTR5 插槽最高支援 96 核心 CPU:支援 AMD Ryzen™ Threadripper™ PRO 7000 WX 系列處理器和 AMD Ryzen Threadripper 7000 系列處理器。
- CPU 和記憶體超頻: 支援高達 1TB 的 ECC R-DIMM DDR5 記憶體 (1DPC)
- 強大的電源和散熱設計:36 功率級配備 8 針 PCIe 電源連接器供 CPU 使用、大尺寸 VRM、晶片組和 M.2 散熱器以及 M.2 散熱背板
- 超快連線:三個 PCIe® 5.0 x16 slots、10 Gb & 2.5 Gb LAN 連接埠、三個 M.2 插槽、前後面板 USB 20Gbps Type-C® 以及支援 SlimSAS NVMe。.
- 伺服器級 IPMI 遠端管理: 軟硬體支援 ASUS IPMI 擴充卡,附加即時監控和管理軟體 – ASUS Control Center Express
- 可靠的穩定性: 支援最新技術,具有可靠的 QVL 列表,經過全天候運行測試,證實具有廣泛的相容性
產品規格
型號

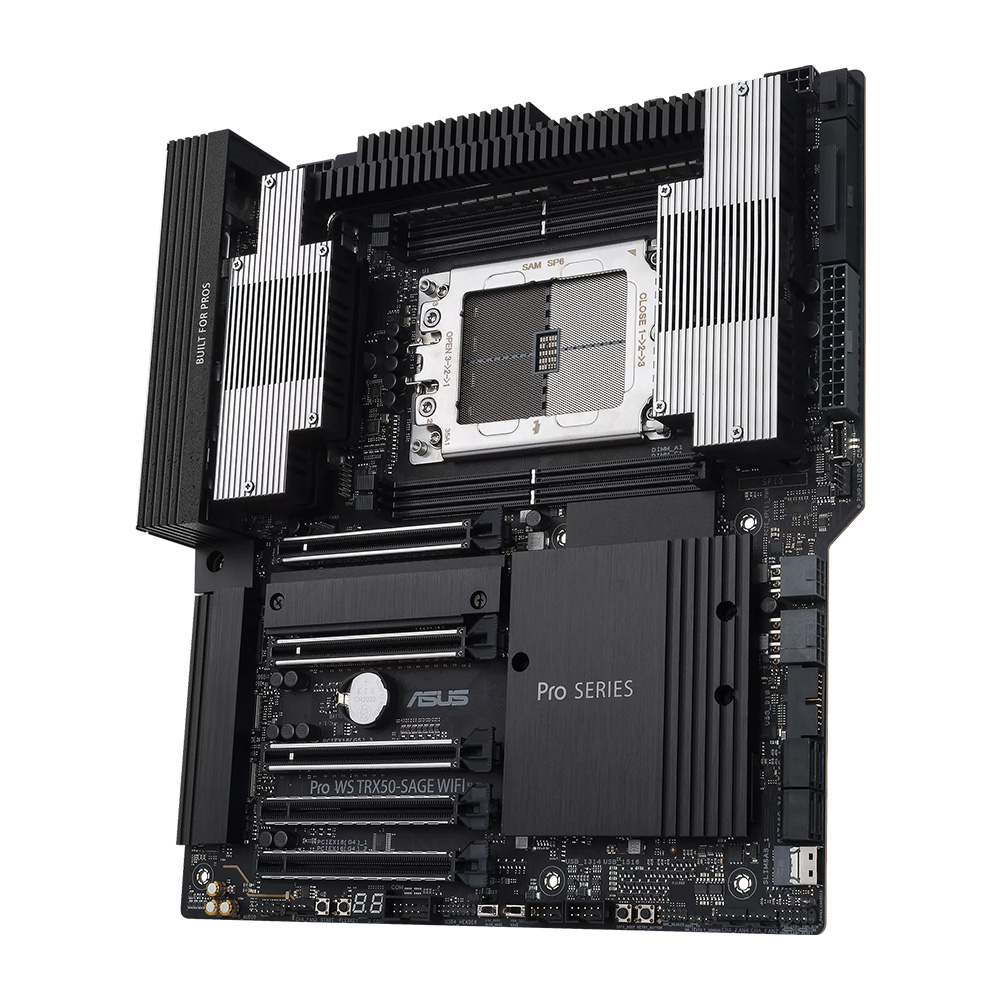

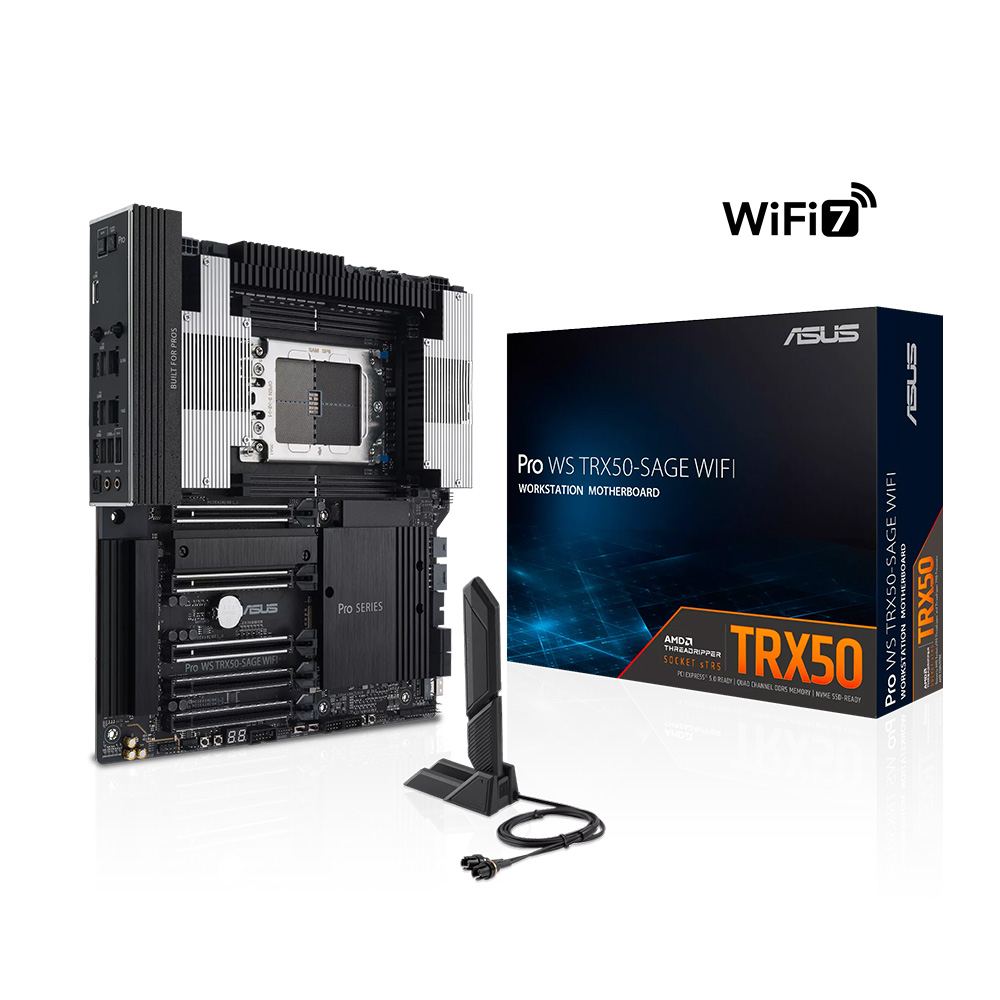

Pro WS TRX50-SAGE WIFI
CPU
AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors *
Chipset
AMD TRX50 Chipset
Memory
4 x DIMM slots, DDR5, ECC Registered Memory*
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Expansion Slots
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
Storage
Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® I226-LM 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate.
Bluetooth® v5.4****
* Compatible with Windows 11 or later.
** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 9 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A )
2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x BMC header1 x COM Port header
1 x USB4 header1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor header
Special Features
ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMMBespoke
Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
Software Features
ASUS Exclusive Software
Armoury Crate- Fan Xpert 4
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash UtilityFlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE (UEFI mode)

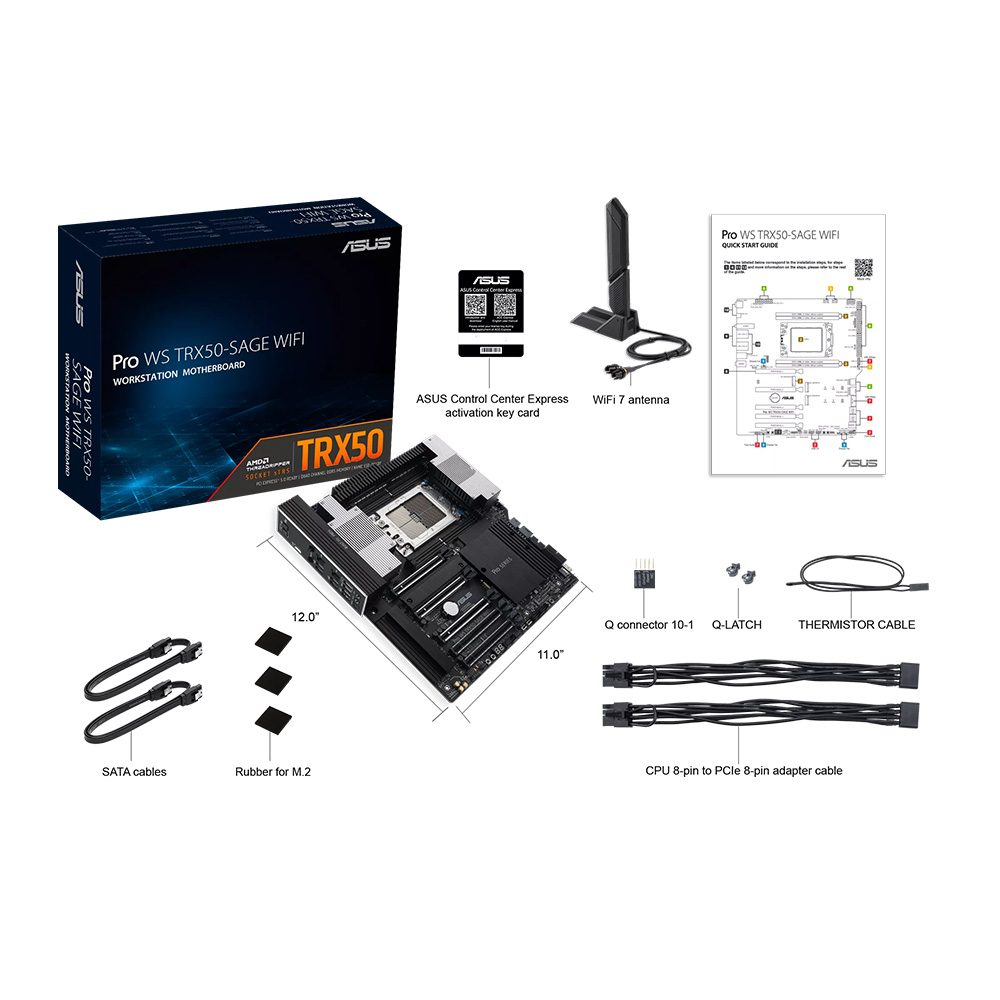

Accessories
Cables
2 x SATA 6Gb/s cables
1 x CPU 8-pin to PCIe 8-pin adapter cable package
1 x Thermistor cable pack
Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package(2 in 1)
2 x M.2 Rubber Packages
1 x Q-connectorDocumentation
1 x ACC Express Activation Key Card
1 x QSG
Operating System
Windows® 11 64-bit
Form Factor
CEB Form Factor
12 inch x 11 inch
(30.5 cm x 28.0 cm)
