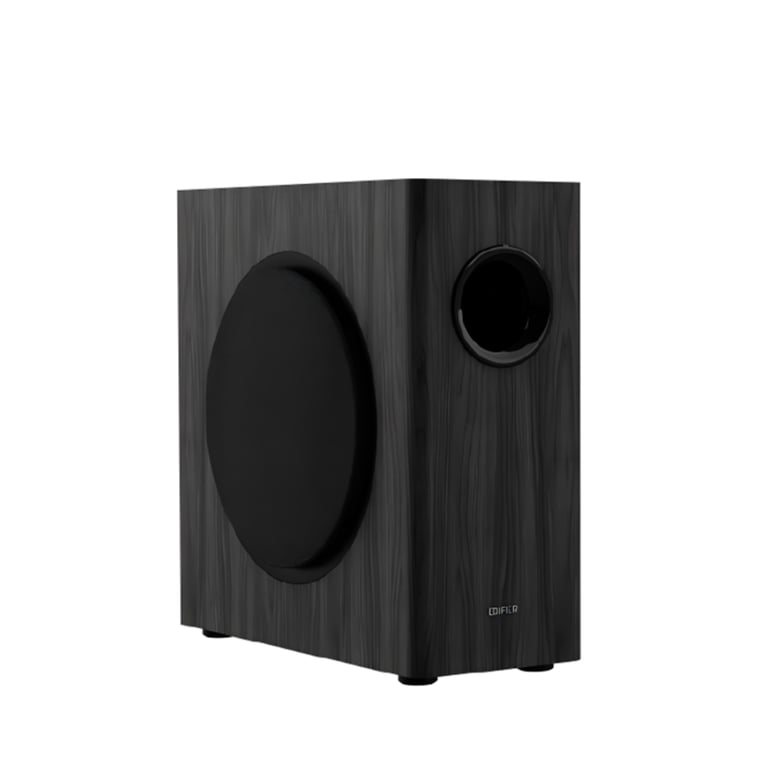

T5s – Powered subwoofer
Speaker Dimensions (W x H x D)
399mm x 410mm x 170mm
Speaker Dimensions (W x H x D)
399mm x 410mm x 170mm
Method 1:
If the main speaker system has a subwoofer port, connect it to the Signal In ports on the subwoofer, then connect the main speaker system to the audio source.
* Compatible EDIFIER speaker models:
R1280Ts, R1280DBs, R1700BTs, R1850DB, R1855DB, R2750DB, R2850DB, S880DB MKII, D12, QR65
Method 2:
If the main speaker system lacks a subwoofer port, connect its audio input to the subwoofer’s Signal Out ports, then connect the subwoofer’s Signal In ports to the audio source’s output.
產品名稱: | Edifier T5s |
顏 色: | 黑色 |
Driver Unit: | 8″Long-throw paper cone |
功率: | 70W RMS |
音頻輸入: | 模擬輸入 |
音頻輸出: | 模擬輸出 |
調節方式: | 旋鈕調節 |
頻響範圍: | 38Hz – 160Hz |
輸入靈敏度: | 50±20mV |
功率放大器信噪比: | ≥85dBA |
總詣波失真+噪聲: | ≤4mV |
尺寸: | 399(寬W)×410(高H)×170(深D)mm |
產品保固: | 1 年 |
由代理RAMBoxs Technology Ltd. 提供 1年 保用。
