產品介紹

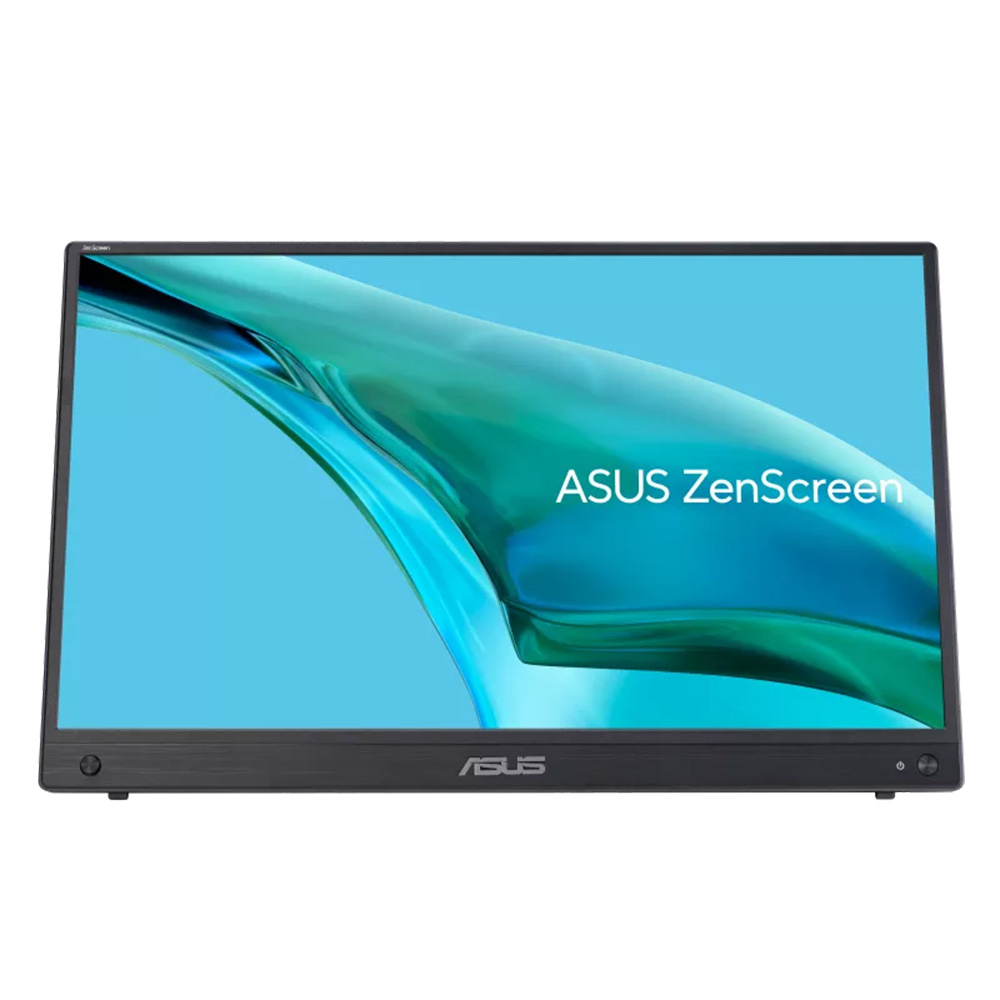

- 15.6-inch FHD (1920 x 1080) IPS portable monitor with 144Hz refresh rate designed for smooth motion pictures
- Two USB-C® (DP Alt mode) and mini HDMI® ports provide versatile connectivity with laptops and game consoles
- FreeSync Premium technology delivers a seamless, tear-free visual experience by enabling VRR (variable refresh rate)
- Fold-out kickstand supports multiple viewing positions in both landscape and portrait orientation
- Built-in ¼”-threaded socket for compatibility with a standard tripod

Fluid viewing experience with 144Hz Smooth Motion
ASUS ZenScreen MB16AHG with fast 144Hz refresh rate and Adaptive-Sync(FreeSync™) technology to eliminate screen tearing and choppy frame rates. It refreshes content on the display 2.4-time faster than the one with a standard 60Hz refresh rate, giving you more fluid animation in video, casual gaming, and day-to-day work, can all benefit from the smoother-than-ever experience. It is a great fit for augmenting what you can do with your laptop.

Sleek and portable design
ASUS ZenScreen MB16AHG is ideal for life on the road. This sleek portable display weighs 0.92kg and has a slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere. A sleeve included in the package helps protect the MB16AHG from dust and scratches while traveling.

Flexible viewing positions

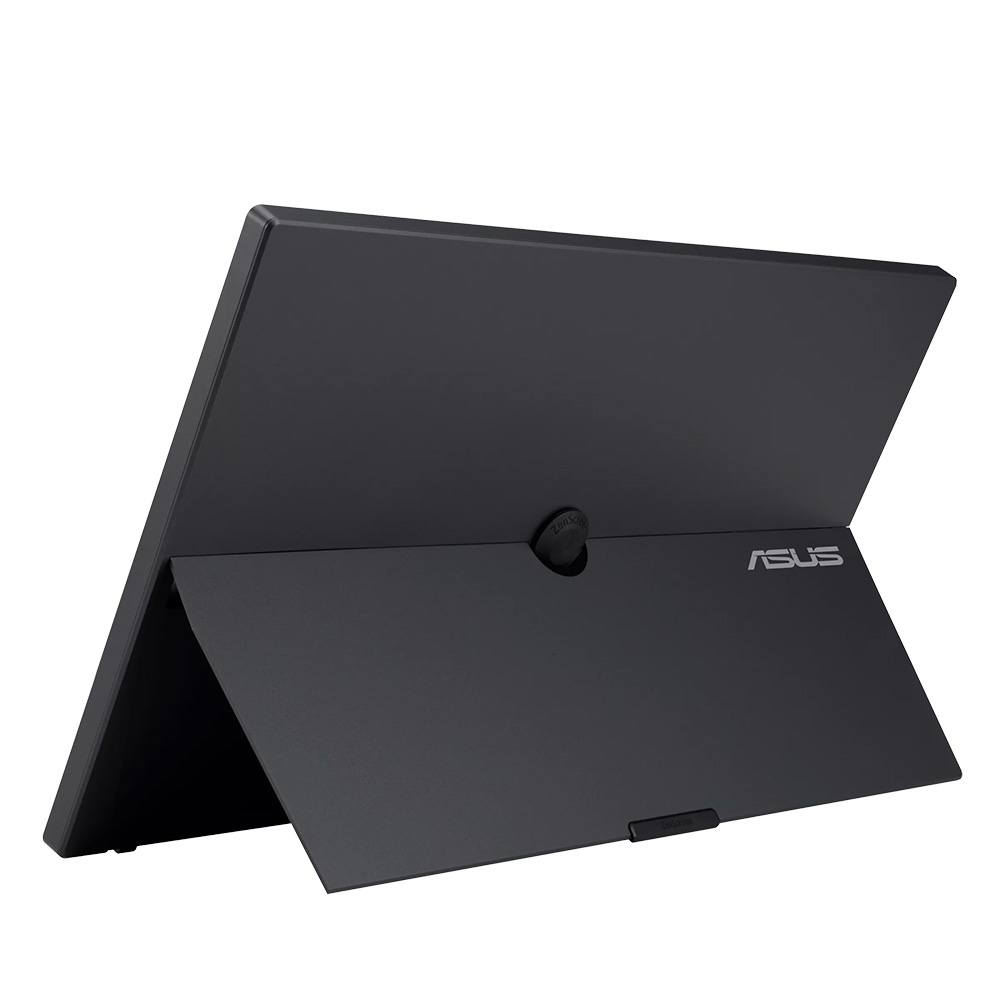

A fold-out kickstand props ASUS ZenScreen MB16AHG up on any flat surface and offers easy tilt adjustments to ensure comfortable viewing angles and working positions. In addition, a ¼ -inch threaded tripod socket at the rear lets you attach the monitor to a standard tripod* or table mount.
Automatic screen orientation

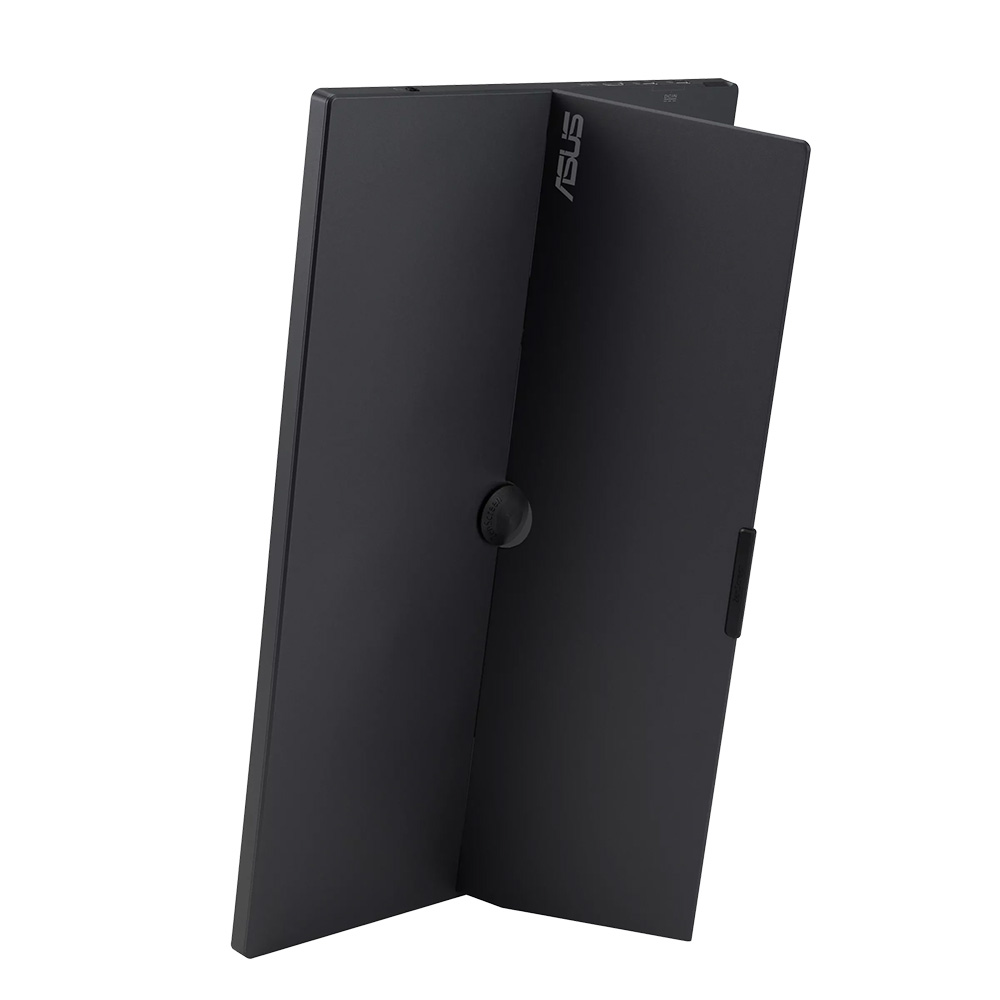

ASUS ZenScreen MB16AHG includes a G-sensor that can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your mobile devices. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.
產品規格
Display
Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16 x 193.59 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Color Space (sRGB) : 100%
Brightness (Typ.) : 300cd/?
Contrast Ratio (Typ.) : 1200:1
Display Colors : 16.7M
Response Time : 3ms(GTG)
Refresh Rate (Max) : 144Hz
Flicker-free : Yes
Video Feature
Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes (Photo/Alighment Grid)
HDCP : Yes, 1.4
VRR Technology : FreeSync™ Premium
DisplayWidget : Yes, DisplayWidget Lite
Low Blue Light : Yes

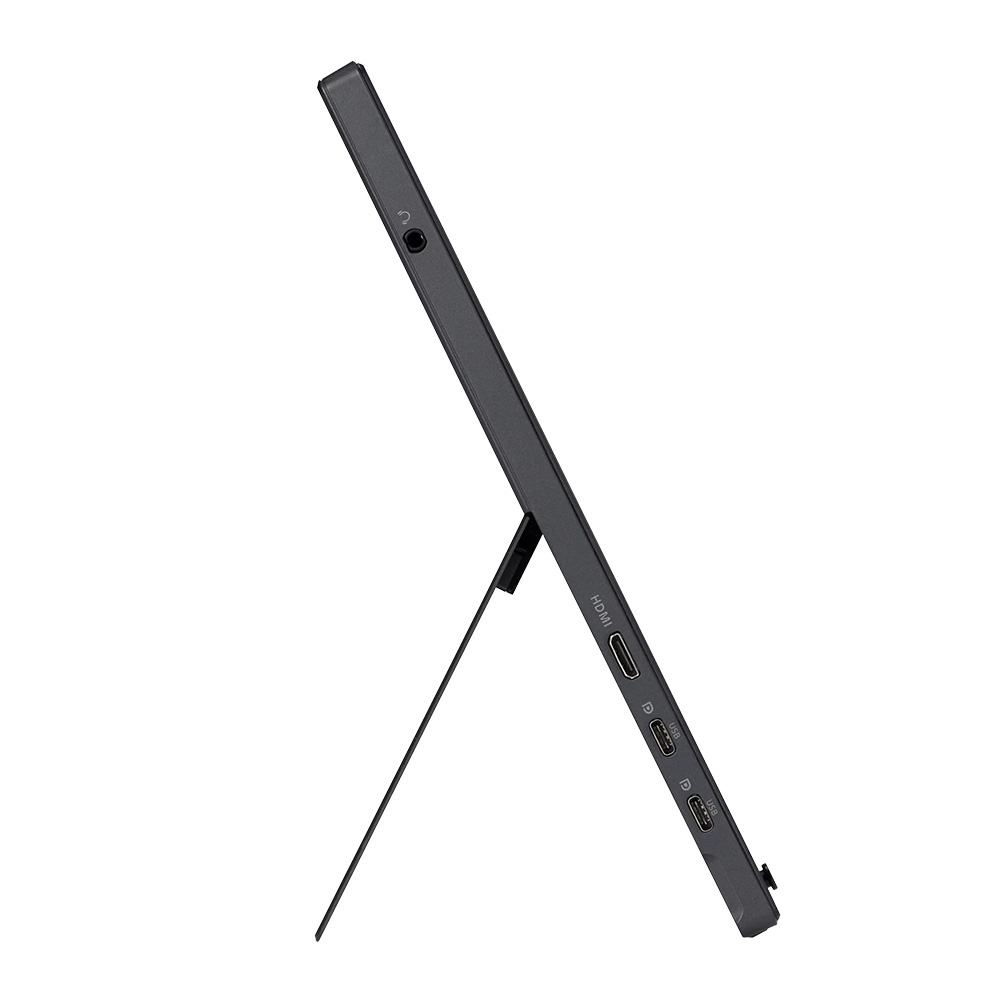

I/O Ports
USB-C x 2 (DP Alt Mode)
Mini HDMI x 1
Earphone Jack : Yes
Signal Frequency
Digital Signal Frequency : HDMI: 30-180 KHz(H) / 60-144Hz (V)
USB-C: 180 KHz(H) / 60-144Hz (V)
Power Consumption
Power Consumption : ≦17W*
Power Consumption : ?17W*
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Mechanical Design
Tilt : Yes (+15° ~ +35°)
Height Adjustment : No
1/4" Tripod Socket : Yes
Dimensions (Esti.)
Phys. Dimension without Stand (W x H x D) : 359.85 x 226.75 x 11.95 mm
Box Dimension (W x H x D) : 485 x 305 x 76 mm
Weight (Esti.)
Net Weight without Stand : 0.92 Kg
Gross Weight : 2.78 Kg
Accessories (vary by regions)
Mini HDMI to HDMI cable
Power adapter
Quick start guide
USB Type-C to A adapter
USB-C cable
USB-C to A cable
Warranty Card
ZenScreen sleeve
Operation Temperature / Humidity
Operation temperature : 0~40℃
Operation temperature : 0~40?
Operation humidity : 20-90% RH
Certificate
TÜV Flicker-free
TÜV Low Blue Light
AMD FreeSync Premium
