產品特色
GT-AXE16000 quad-band WiFi 6E (802.11ax) gaming router, new 6 GHz band, dual 10G ports, 2.5G WAN port, dual WAN, AiMesh support, VPN Fusion, Triple-level game acceleration and free network security
- World's first quad-band WiFi 6E gaming router – Ultrafast WiFi 6E (802.11ax) quad-band WiFi router boosts speeds up to 16000 Mbps
- New 6 GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference.
- Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage.
- Flexible AiMesh configuration – Dedicated 5 GHz or 6 GHz backhaul using ASUS AiMesh routers for more flexible device options
- Dual 10G ports – Enjoy up to 10X-faster data-transfer speeds for bandwidth-demanding tasks with two 10 Gbps WAN/LAN ports.
- 2.5G WAN port – 2.5 Gbps port prioritizes all network traffic, and unlocks the full potential of WiFi 6.
- Triple-level game acceleration - Accelerate game traffic every step of the way — from device to game server
產品規格
Model Name
Network Standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
Product Segment
- AXE16000 ultimate AX/AXE performance
AX technology
Data Rate
- 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
- 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
- 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
- 6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Antenna
- External antenna x 8 (non-detachable) Internal antenna x 4
Transmit/Receive
- 2.4 GHz 4 x 4
- 5 GHz-1 4 x 4
- 5 GHz-2 4 x 4
- 6 GHz 4 x 4
Processor
- 2.0GHz quad-core processor
Memory
- 256MB NAND flash and 2GB DDR4 RAM
Boosts speed
- OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
- Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz

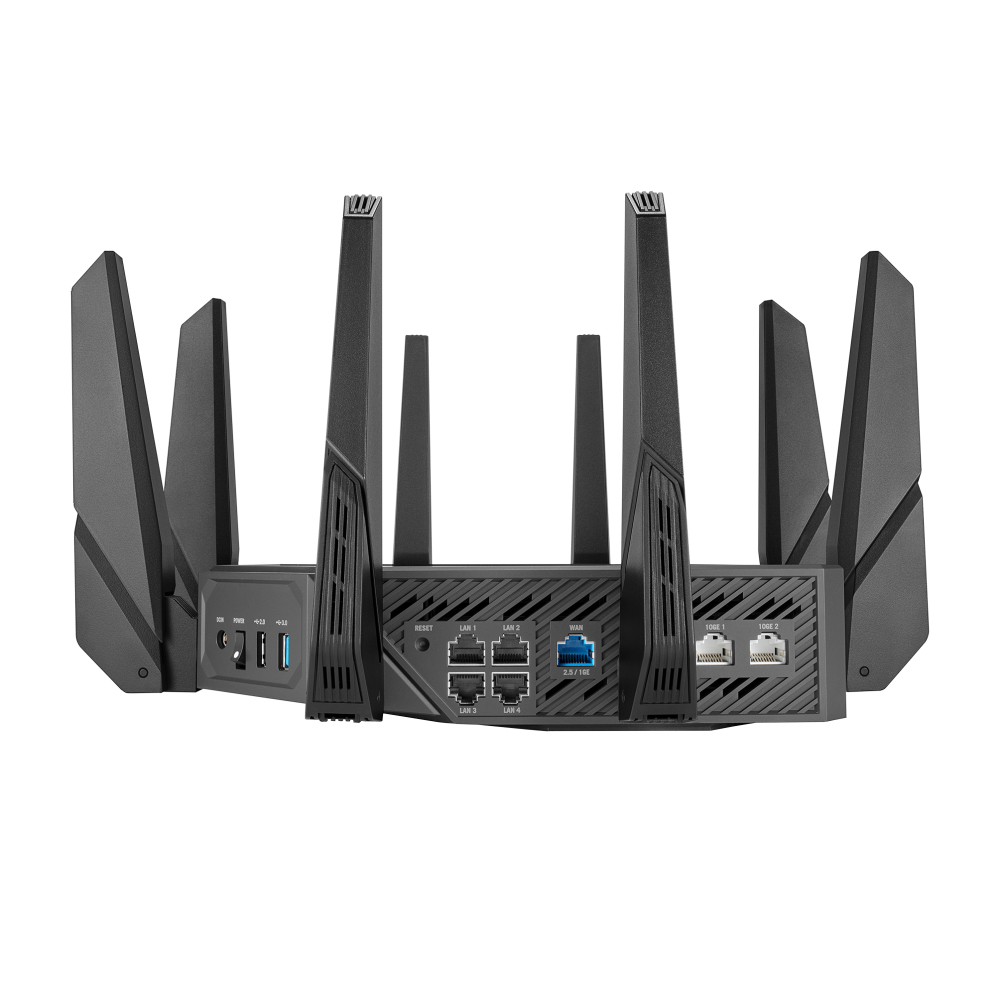

Ports
- 1 x 2.5 Gigabit WAN Port 2 x 10 Gigabit WAN/LAN Ports 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port
Button
- WPS Button, LED Button, Reset Button, Power Switch
LED Indicator
- Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 6G x 1 10GE Port x 1 LAN x 1 WAN x 1
Power Supply
- AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current
Package content
- GT-AXE16000 WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card
Product Weight (g)
AiMesh
- AiMesh
- Primary AiMesh router
- AiMesh node
Router APP
Game
- Game Boost/acceleration
- Game Radar
- WTFast
- ROG_First
- OpenNAT (Game Profile)
Alexa
AiProtection
- AiProtection Pro
- Router Security Assessment
- Malicious site blocking
- Two-Way IPS
- Infected Device Prevention and Blocking
Parental Control
- Parental Control
- Parental Control Customized Internet schedule
- Maximum Parental Control profile : 64
- Maximum Parental Control content filter rule : 64
Traffic Control
- Adaptive QoS
- Bandwidth Monitor
- Bandwidth limiter
- Maximum Bandwidth limiter rule : 32
- Traditional QoS
- Traffic Monitor
- Real-time traffic monitor
- Wired Traffic Monitor
- Wireless Traffic Monitor
- Traffic Analyzer
- Traffic analysis period : Daily, Weekly, Monthly
- Website history
Wireless
- IPv6
- MU-MIMO
- WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE
- UTF-8 SSID
- Guest Network
- Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3
- Guest Network Connection time limit
- Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal
- WPS
- Wi-Fi MAC address filter
- Maximum MAC filters : 64
- Wireless scheduler
- Airtime fairness
- RADIUS Server
- Universal beamforming
WAN
- Explicit beamforming
- Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
- Dual WAN
- WAN Aggregation
- 3G/4G LTE dongle
- Android tethering
- Port forwarding
- Maximum port forwarding rule : 64
- Port triggering
- Maximum port triggering rule : 32
- DMZ
- DDNS
- NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
- Let's Encrypt
LAN
- DHCP Server
- IGMP snooping
- IPTV
- LAN Link Aggregation
- Manually assign IP address
- Maximum manually assign IP address rule : 128
VPN
- VPN Client L2TP
- VPN Client OVPN
- VPN Client PPTP
- VPN Server IPSec
- VPN Server OVPN
- VPN Server PPTP
- VPN Fusion
USB application
- File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
- HDD hibernation
- Safely Remove disk
- AiCloud
- Download master
- AiDisk
- Media Server
- Time Machine
- Samba Server
- FTP Server
- Shared Folder privileges
Administration
- Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
- Operating system : ASUSWRT
- Free OS upgrade
- Firewall
- Maximum Firewall keyword filter : 64
- Maximum Firewall network service filter : 32
- Maximum Firewall URL filter : 64
- Wake on LAN (WOL)
- SSH
- Configuration backup and restore
- Diagnosis tools
- Feedback system
- System log
