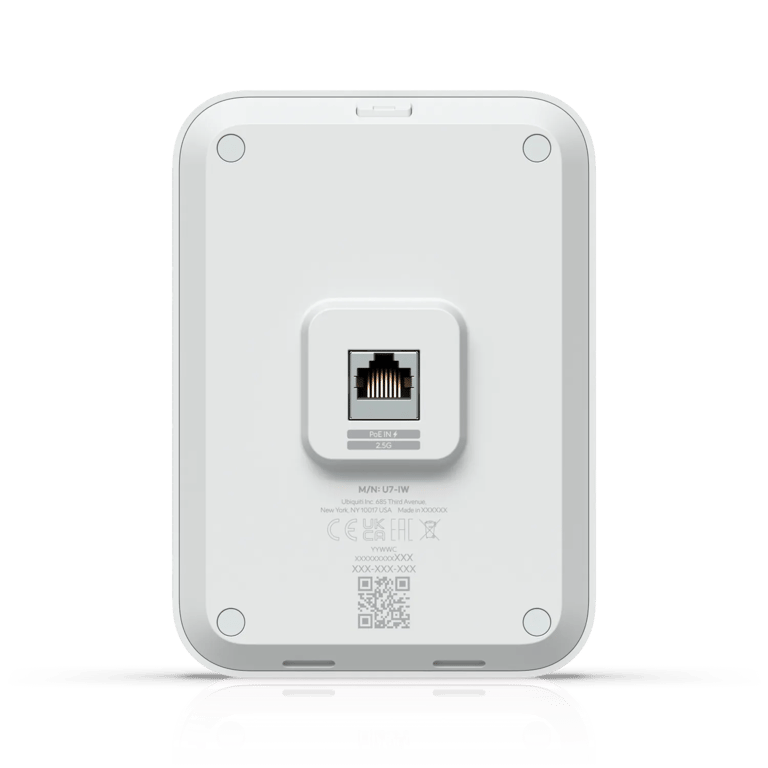

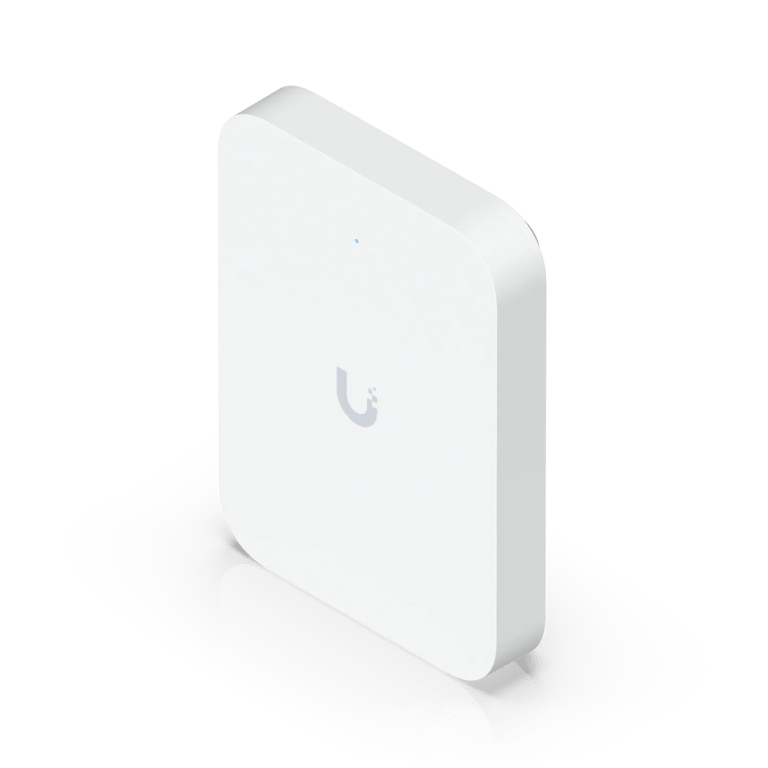

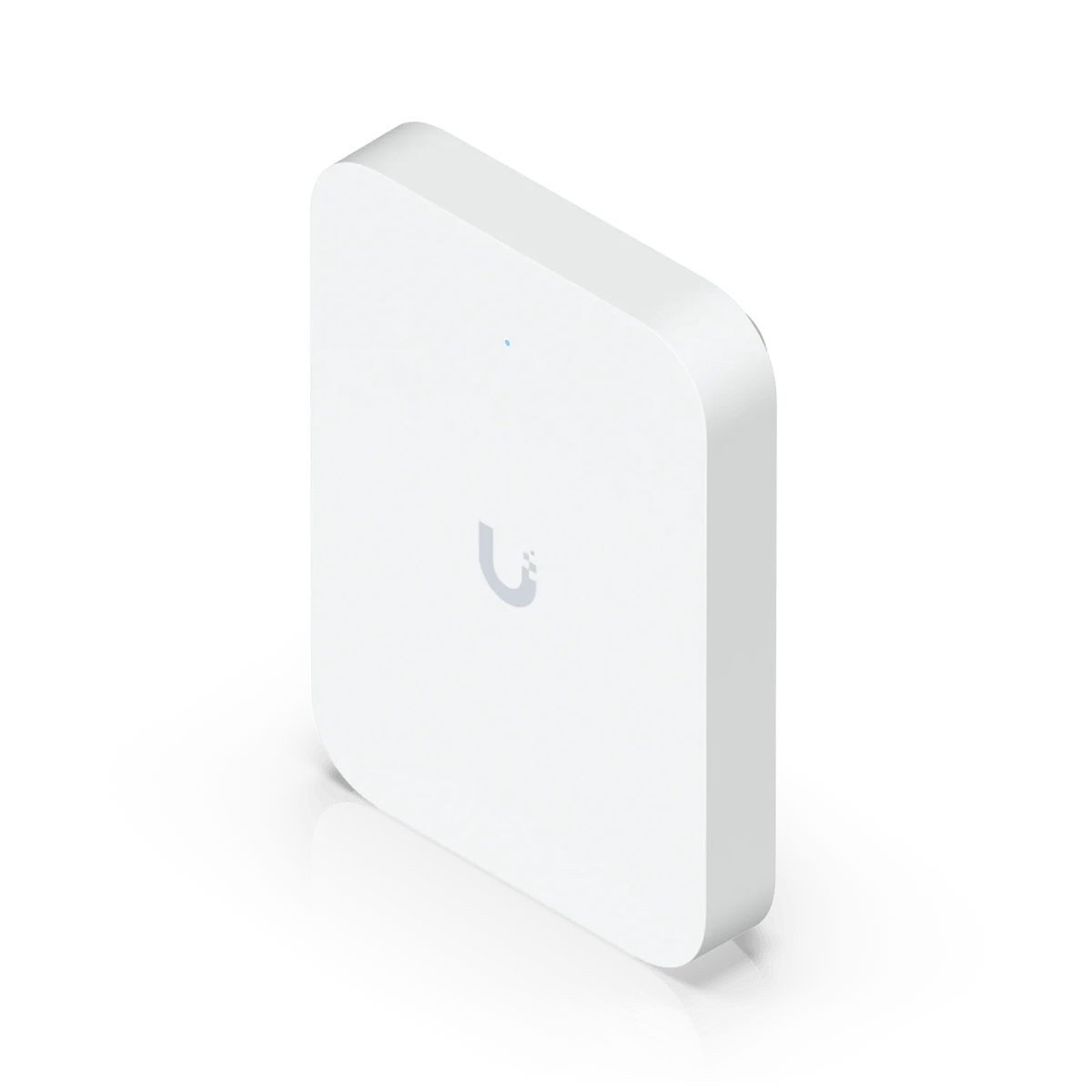

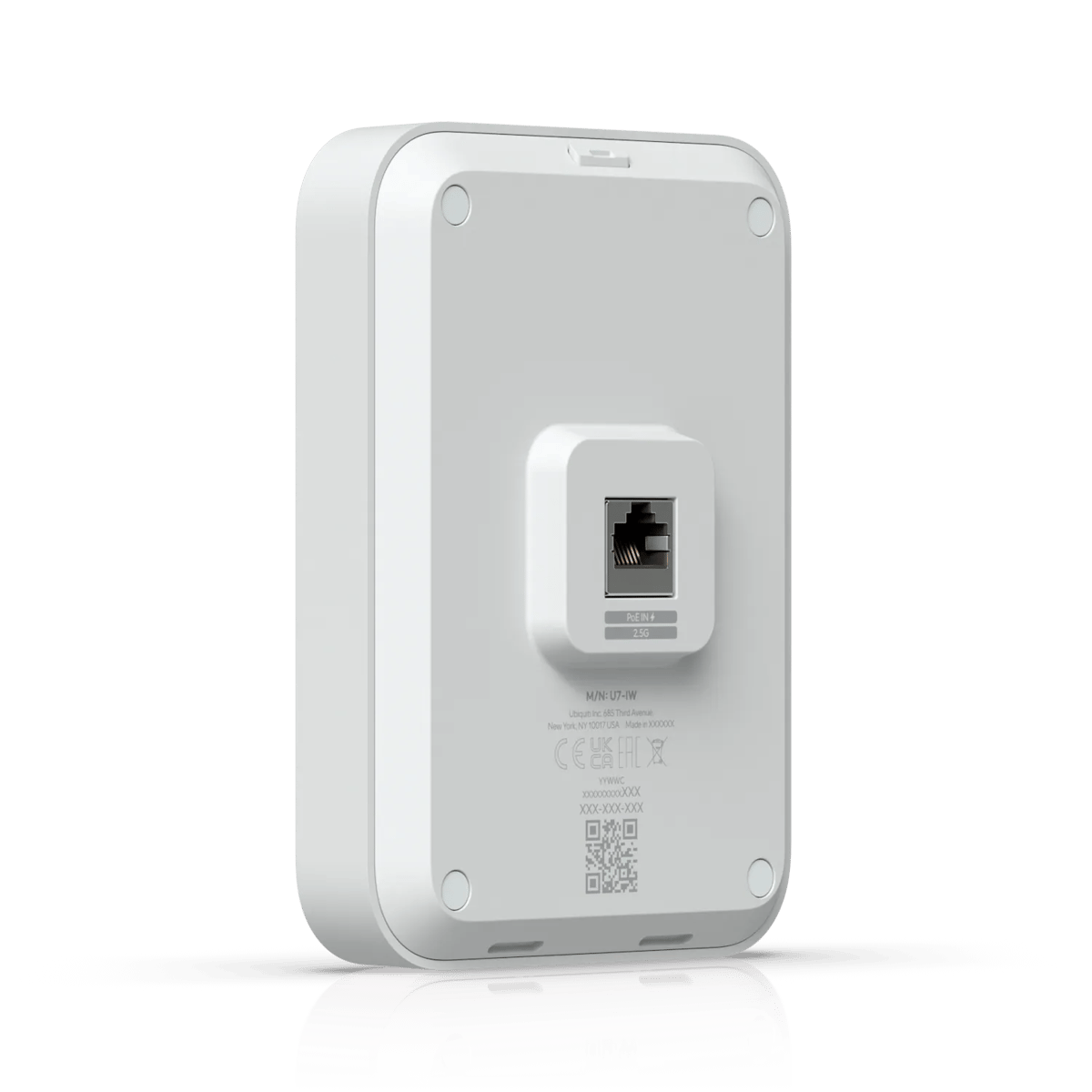

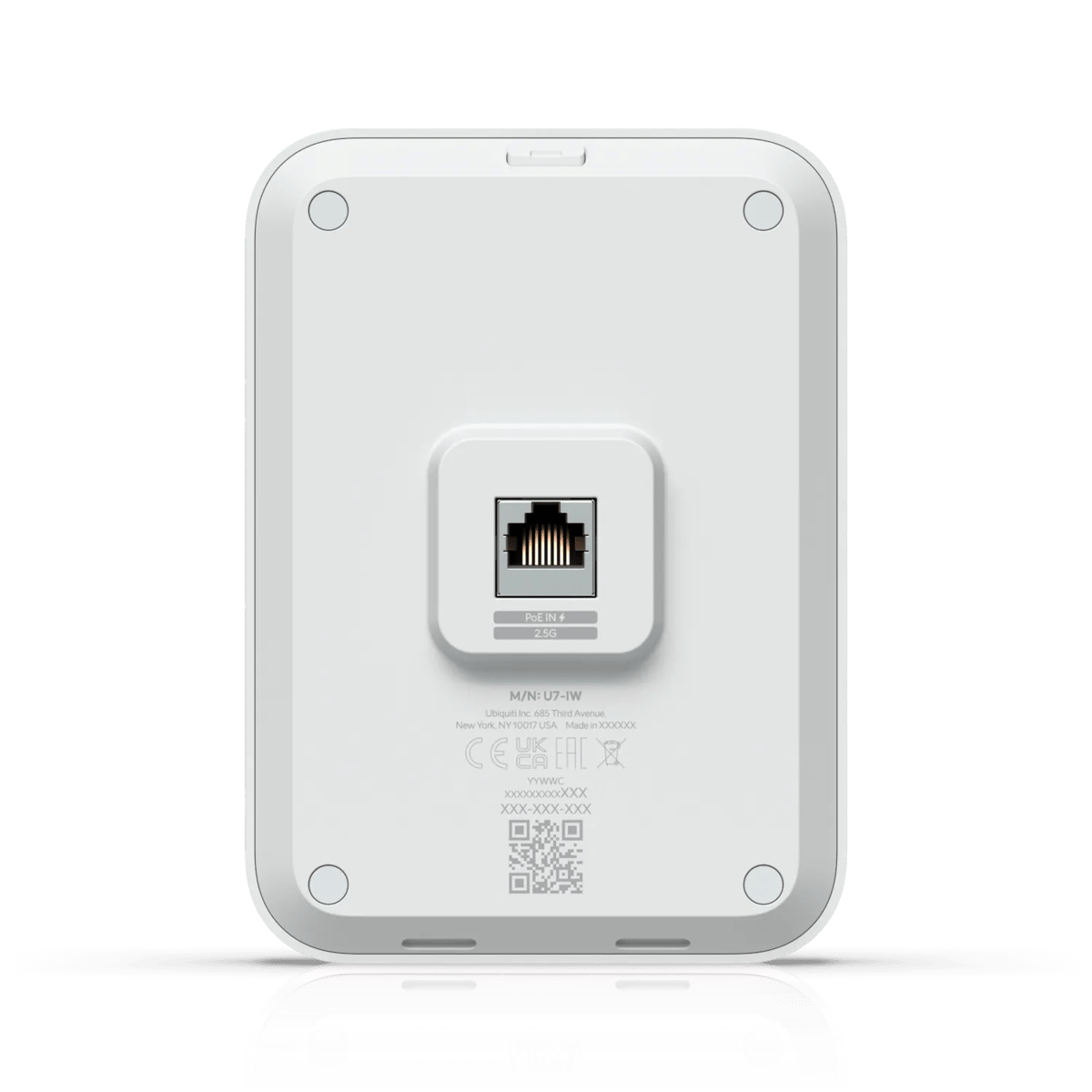

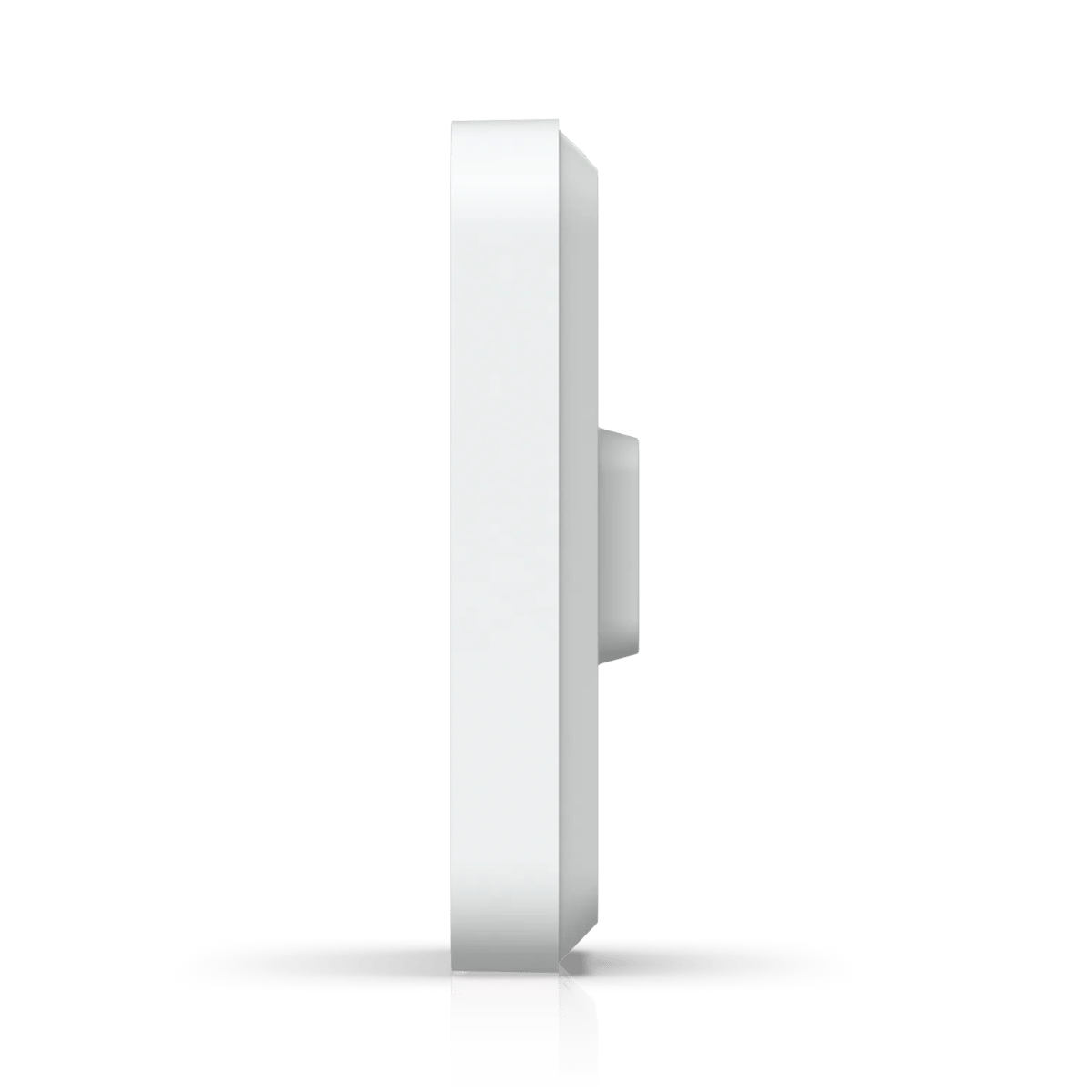

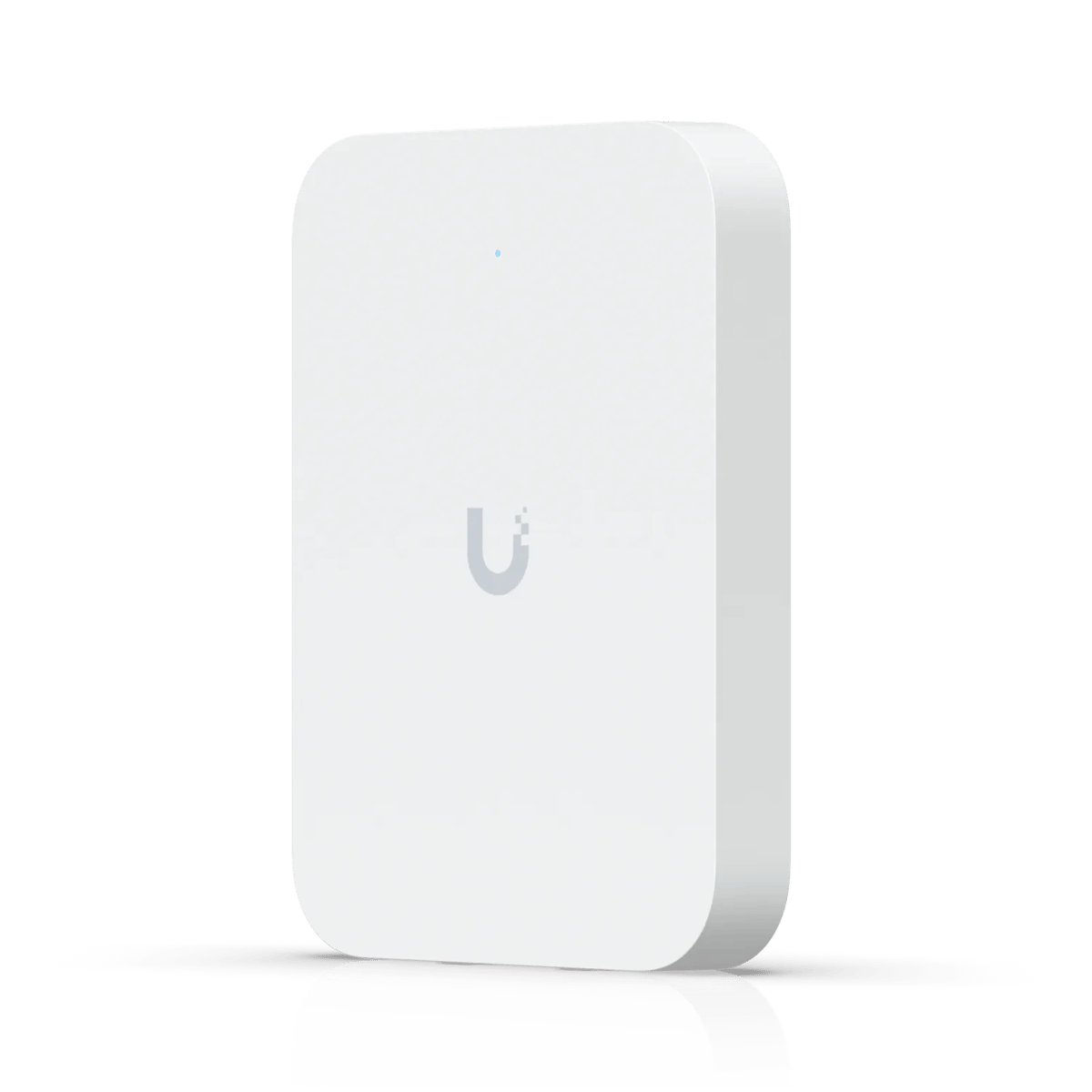

Ubiquiti UniFi U7-In Wall
Upgrade your home or office network with the cutting-edge power of the U7-In Wall. Engineered with the latest WiFi 7 standard, this advanced access point delivers unprecedented speed, reliability, and coverage - redefining what's possible for wireless connectivity.
Whether you're a tech enthusiast, remote worker, or small business owner, the U7-In Wall is the ultimate solution for elevating your wireless experience. Enjoy lightning-fast throughput, seamless roaming, and rock-solid reliability that keeps all your devices, smart home systems, and bandwidth-hungry applications running at peak efficiency. Say goodbye to frustrating dead zones, buffering, and connectivity issues, and hello to a new era of wireless freedom and productivity.
- Dual-band Wi-Fi for simultaneous connections
- In-wall design for discreet installation
- High-speed performance for streaming and gaming
- Easy setup and management through Ubiquiti interface
- Supports multiple devices without signal drop

Specifications :
| Model |
U7 in Wall |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
4 |
| Coverage Area |
115 m² (1,250 ft²) |
| Max. Client Count |
200+ |
| Networking Interface |

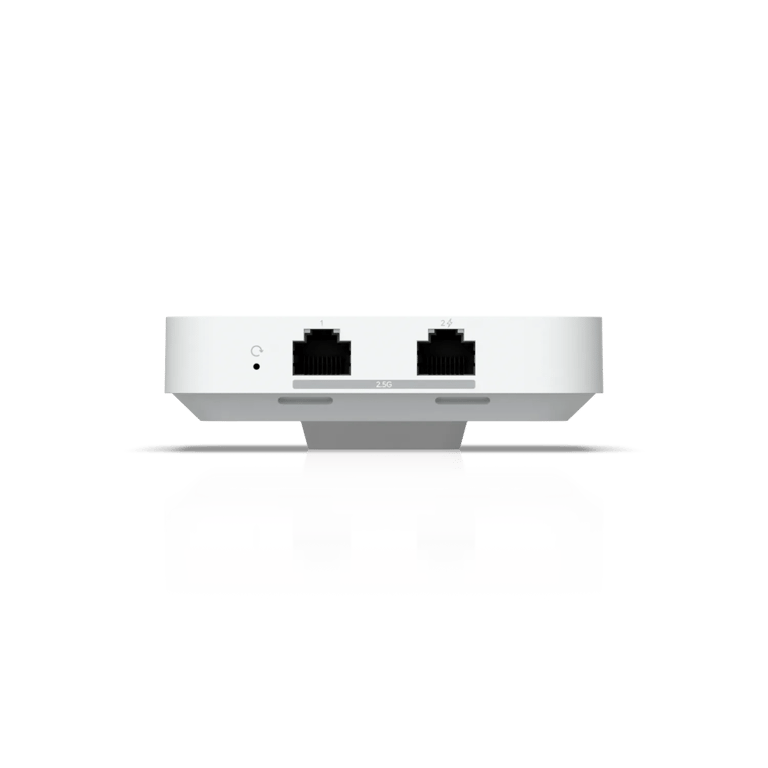

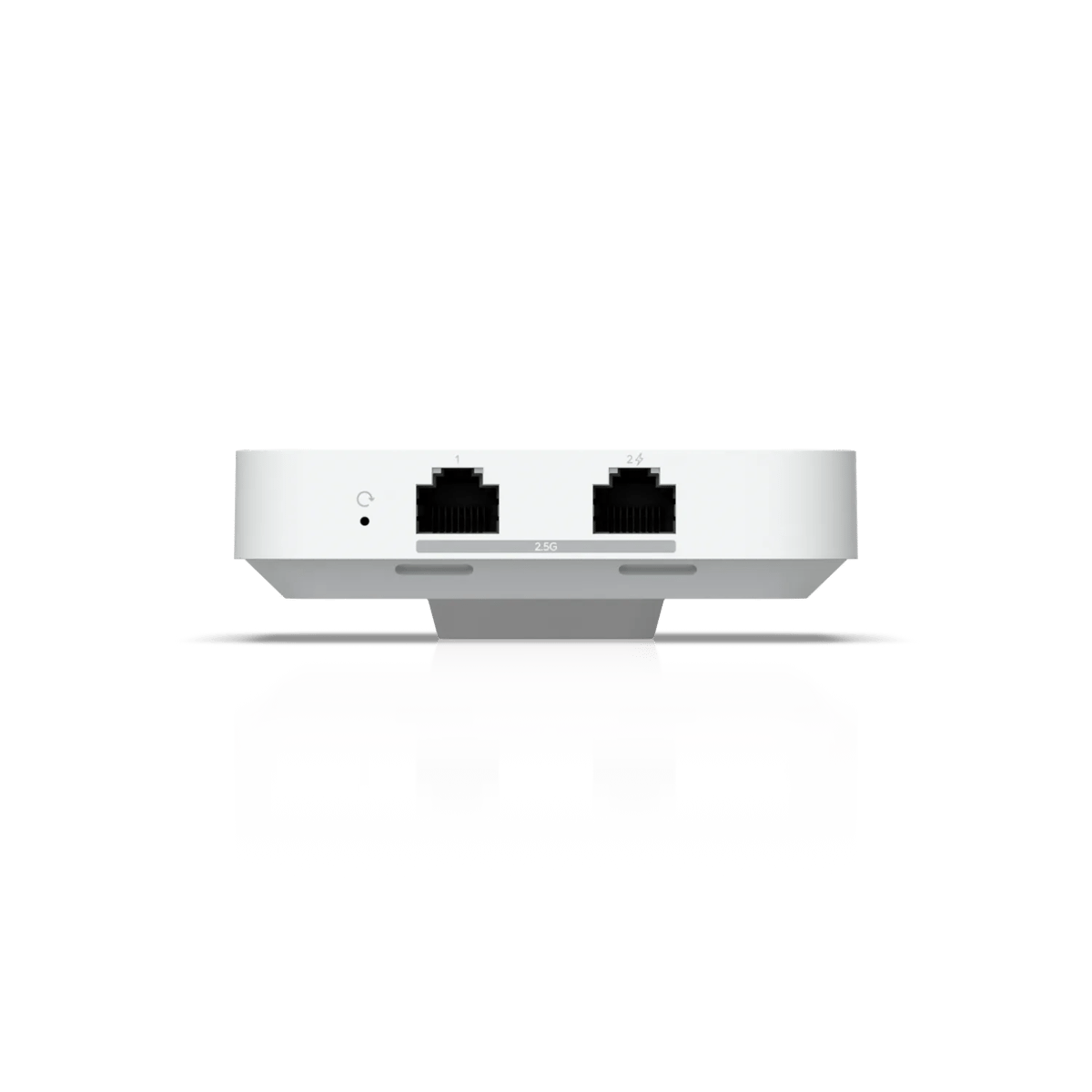

3 x 2.5 GbE RJ-45 ports |
| Uplink |
2.5 GbE |
| Mounting |
Wall(Metal Wall Mount Included) |
| Power Method |
PoE
PoE+ (Required for PoE output) |
| Performance |
|
| MIMO |
5GHz : 2 x 2 (DL/UL MU-MIMO)
2.4GHz : 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
5GHz : 4.3 Gbps (BW240)
2.4GHz : 688 Mbps (BW40) |
| Antenna Gain |
5GHz : 8 dBi
2.4GHz : 4 dBi |
| Max. TX Power |
5GHz : 24 dBm
2.4GHz : 23 dBm |
| Max. BSSIDs |
8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7) : 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6) : 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) : 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n : 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Max. Power Consumption |
13W (Excluding PoE output) |
| Supported Voltage Range |
DC 42.5 ~ 57V |
| Management |
Ethernet |
| LEDs |
System (White / Blue) |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160,
EHT 20/40/80/160/240 (MHz) |
| Material |
Enclosure : Polycarbonate, aluminum alloy
Mount : Aluminum alloy |
| Environment |
Operating Temperature : -30°C ~ 40°C
Operating Humidity : 5% ~ 95% non-condensing |
| Software Application Requirements |
UniFi Network :
Version 9.0.114 and later
Mobile App :
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later |
| Dimensions |
137 x 98.7 x 30.2 mm |
| Weight |
400 g |
保用/保養條款
凡於本店購買 Unifi Dream Router 7 或 Express 7 的顧客,即可免費享有 7 天技術支援服務。
支援內容包括:
路由器初始設定及安裝指導
無線 Mesh 網絡設定
基本使用問題解答
常見故障排除
支援方式:
可直接透過 Instagram 或 Facebook 私訊聯絡腦控(@mindcontrol.hk)
https://www.instagram.com/mindcontrol.hk/
https://www.facebook.com/mindcontrol.hk
如店內客服未能即時解決,亦可轉介給腦控跟進
注意事項:
此服務只限購買收貨後 7 天內有效
只適用於路由器本身的設定及使用問題
2年保用
保用申請流程
- 購買日起計 2 年內如產品出現故障,憑2000Fun收據可攜同產品和配件及購買收據交回2000Fun處理。
