產品特點

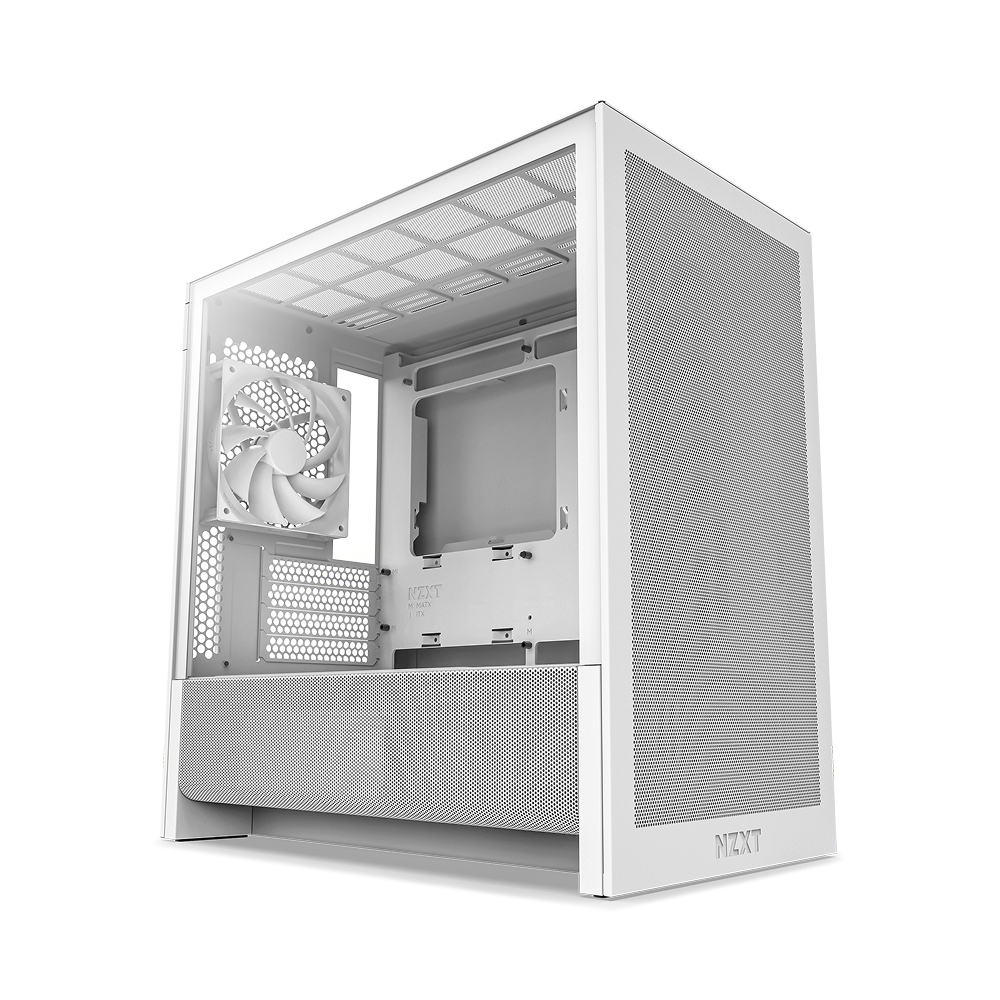

H3 Flow 微型 ATX 機殼結合了節省空間的設計與高效能的支援能力。其設計可容納全尺寸元件,並配備超細網孔面板與通風的電源遮罩,確保整體組裝擁有穩定且最佳化的氣流表現。
- 節省空間的尺寸:精巧的 micro-ATX 機殼設計,能無妥協地容納高效能元件。
- 高氣流設計:超細鋼網面板與通風電源遮罩最大化氣流,同時有效過濾灰塵。
- 廣泛散熱支援:前方可支援最大 280mm 水冷排,上方支援 240mm 水冷排,並可安裝最多七個風扇,提供強勁且可自訂的散熱效能。
- 支援全尺寸顯示卡:可容納長達 377mm 的顯示卡(無前風扇)、352mm(有前風扇)或 317mm(安裝前水冷排與風扇)。
- 預裝後方風扇:出廠即配備一個 F120Q(CV)風扇於後方,提供高效排氣氣流。CV = 機殼版本(3-pin DC)。
- 簡化理線管理:內建理線通道與多個固定點,輕鬆整理線材,打造整潔組裝。
- 支援背接主機板:相容如 ASUS BTF 與 MSI Project Zero 等背接主機板,實現無線材外露的俐落美感。
- 免工具拆裝:可拆式頂部、前方與側面面板,方便升級與清潔,無需工具。
產品規格
Dimensions
Height
400 mm (15.75 in)
Width
225 mm (8.86 in)
Depth
389 mm (15.31 in)
Volume
35.0 L
Weight
4.8 kg (10.58 lb)
General
Enclosure Type
Micro-ATX Case
Motherboard Compatibility
Micro-ATX, Mini-ITX
Rear-Connecting Motherboard Support (BTF, Project Zero)
Yes (Micro-ATX)
Materials
SGCC steel, clear tempered glass (white), tinted tempered glass (black)
Clearance
CPU Cooler Height
170 mm
GPU Length
Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans)
PSU Length
Up to 185 mm
Cable Routing Space
Up to 31.5 mm
Front Radiator & Fan Thickness
Up to 63 mm
Top Radiator & Fan Thickness
Up to 70 mm
Front I/O Ports
USB 3.2 Type-A
1
USB 3.2 Gen2x2 Type-C
1
Expansion Slots
Standard
4
Vertical
0
Drive Bays
2.5"
1+2
3.5"
1
Fan Support
Front
2 x 120 mm / 2 x 140 mm
Top
2 x 120 mm / 2 x 140 mm
Bottom
2 x 120 mm
Rear
1 x 120 mm (1 x F120Q (CV) included)
Radiator Support
Front
Up to 280 mm
Top
Up to 240 mm
Fan Specs
Model
F120Q (CV)
Speed
1,350 ± 150 RPM
Airflow
60.2 CFM
Static Pressure
1.05 mmH2O
Noise
24.1 dBA
Fan Connector
3-pin
Warranty
Warranty
2 years
