產品特點

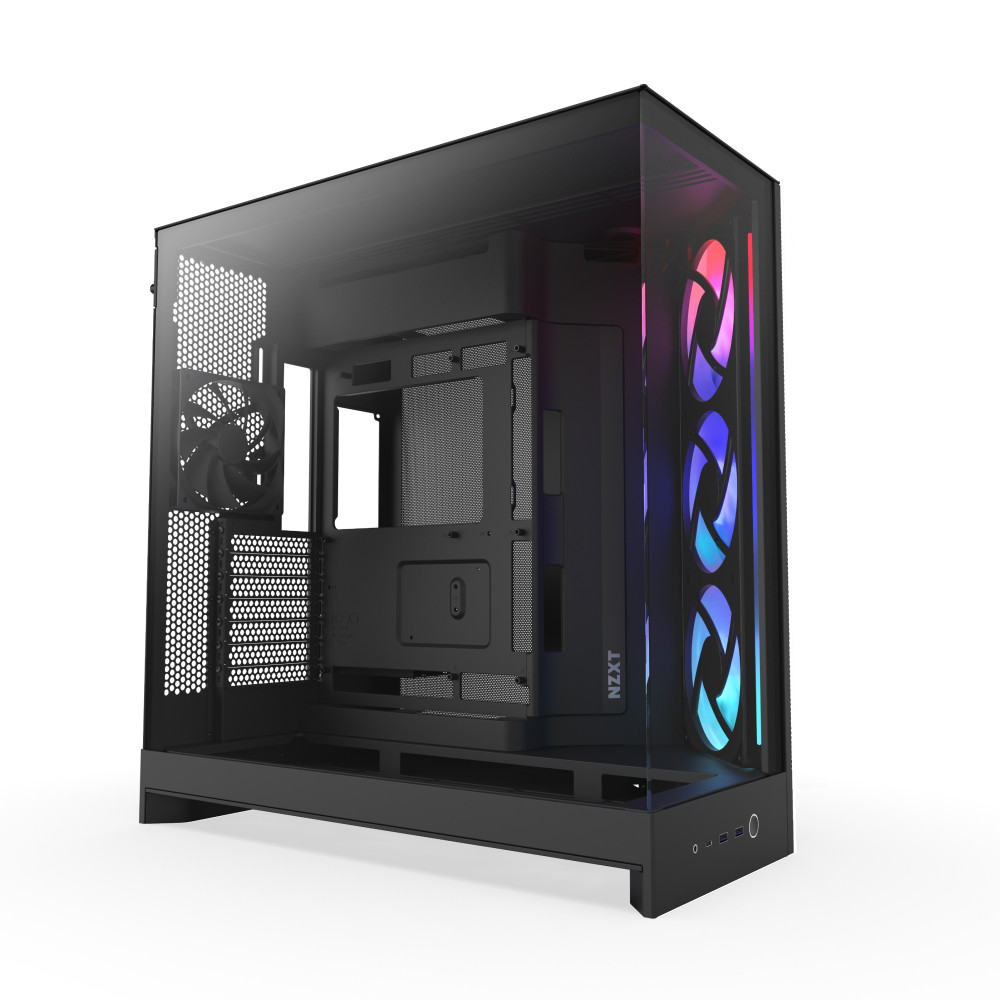

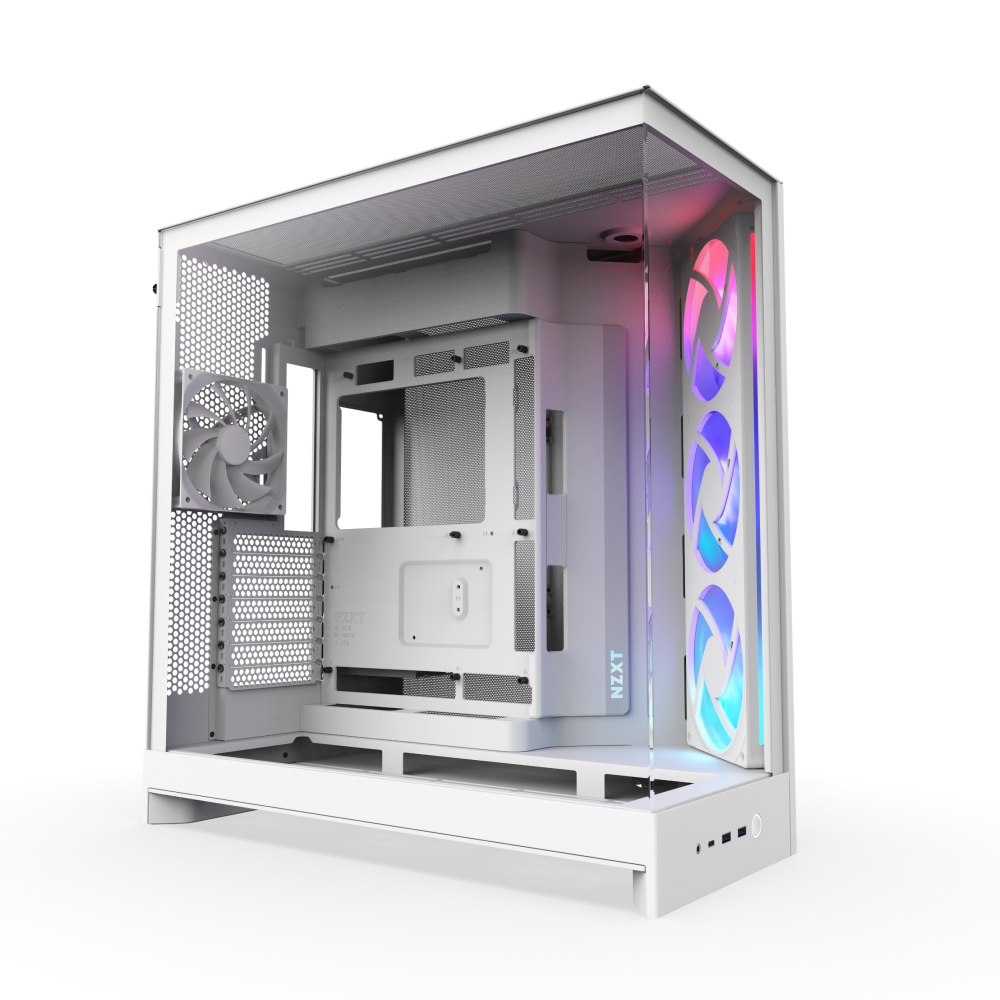

H9 Flow 是一款寬敞的中塔式 ATX 機殼,專為高效能組裝而設計,兼顧散熱效能與美學。其雙艙設計提升了散熱與理線效率,並透過打孔面板、傾斜風扇及充足的風扇與水冷排支援,提供卓越的散熱表現。
- 雙艙設計:將主要元件與電源供應器及硬碟分離,提升散熱效能與理線便利性。
- 優化氣流:打孔鋼板與前右側傾斜風扇確保高效散熱,適合高效能組裝。
- 預裝風扇:前右側配有一個 F420 RGB Core 單框風扇,後方配有一個 F120Q(CV)風扇。CV = 機殼版本(3-pin DC)。
- 十風扇容量:可支援最多九個 140mm 風扇(上方、前右側與底部),以及一個 120mm 後方風扇。
- 全景視角:無縫環繞式強化玻璃面板,完美展示您的組裝細節。
- 大型水冷排與顯示卡:上方與前右側可容納最大 420mm 的水冷排,並保留充足空間以安裝高階顯示卡。
- 理線輕鬆:超寬理線通道、內建魔鬼氈束帶與固定點,讓線材整理更輕鬆。
- 支援背接主機板:相容於如 ASUS BTF 與 MSI Project Zero 等背接主機板,打造無線材外露的整潔外觀。
產品規格
Dimensions
Height
506 mm (19.9 in)
Width
315 mm (12.4 in)
Depth
481 mm (18.9 in)
Volume
76.7 L
Weight
12.6 kg (27.78 lb)
General
Enclosure Type
Mid-tower
Motherboard Compatibility
E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
Rear-Connecting Motherboard Support (BTF, Project Zero)
Yes (ATX)
Materials
SGCC steel, clear tempered glass (white), tinted tempered glass (black)
Clearance
CPU Cooler Height
165 mm
GPU Length
Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length
200 mm
Top Radiator & Fan Thickness
Up to 80 mm (360 mm) Up to 62 mm (420 mm)
Front I/O Ports
USB 3.2 Type-A
2
USB 3.2 Gen2x2 Type-C
1
Headset Jack
1
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
4+2
3.5"
2
Fan Support
Front-Right
3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
Top
3 x 120 mm / 3 x 140 mm
Bottom
3 x 120 mm / 3 x 140 mm
Rear
1 x 120 mm (1 x F120Q (CV) included)
Radiator Support
Front-Right
Up to 420 mm
Top
Up to 420 mm
Bottom
Up to 360 mm
Rear
Up to 120 mm
Fan Specs - F420 RGB Core
Model
F420 RGB Core
Speed
2,000 ± 200 RPM
Airflow
98.61 CFM
Static Pressure
3.2 mmH2O
Noise
34.5 dBA
Fan Connector
8-pin w/ splitter
Fan Specs - F120Q (CV)
Model
F120Q (CV)
Speed
1,350 ± 150 RPM
Airflow
60.2 CFM
Static Pressure
1.05 mmH2O
Noise
24.1 dBA
Fan Connector
3-pin
Warranty
Warranty
2 years
