LX Pro 延續經典 LX 設計,並融入最新技術,讓安裝更簡單,人體工學更佳,成為升級工作站的首選。結合流暢動作、靈活架構及整潔美觀,提升你的工作環境與效率!
主要特色
提升舒適度:更輕鬆調整角度與位置,提供業界最佳的人體工學體驗。
提高生產力:升降、傾斜及旋轉螢幕,打造完美視角,提升專注力。
模組化架構:靈活設計,適用各種配置,並支援額外配件擴充。
最大化工作空間:將螢幕提升至桌面上方,讓空間更整潔。
極簡美觀:改良線材管理系統,提升外觀與工作環境質感。
簡易安裝:零件更少、調整直覺化,讓組裝變得輕而易舉。
產品規格
GTIN: 00698833091656
Part Number: 45-684-293
Product Weight: 5.2 kg
Shipping Weight: 7.3 kg
Shipping Dimensions: 34.8" x 10.2" x 6.5" (88.5 x 26 x 16.5 cm)

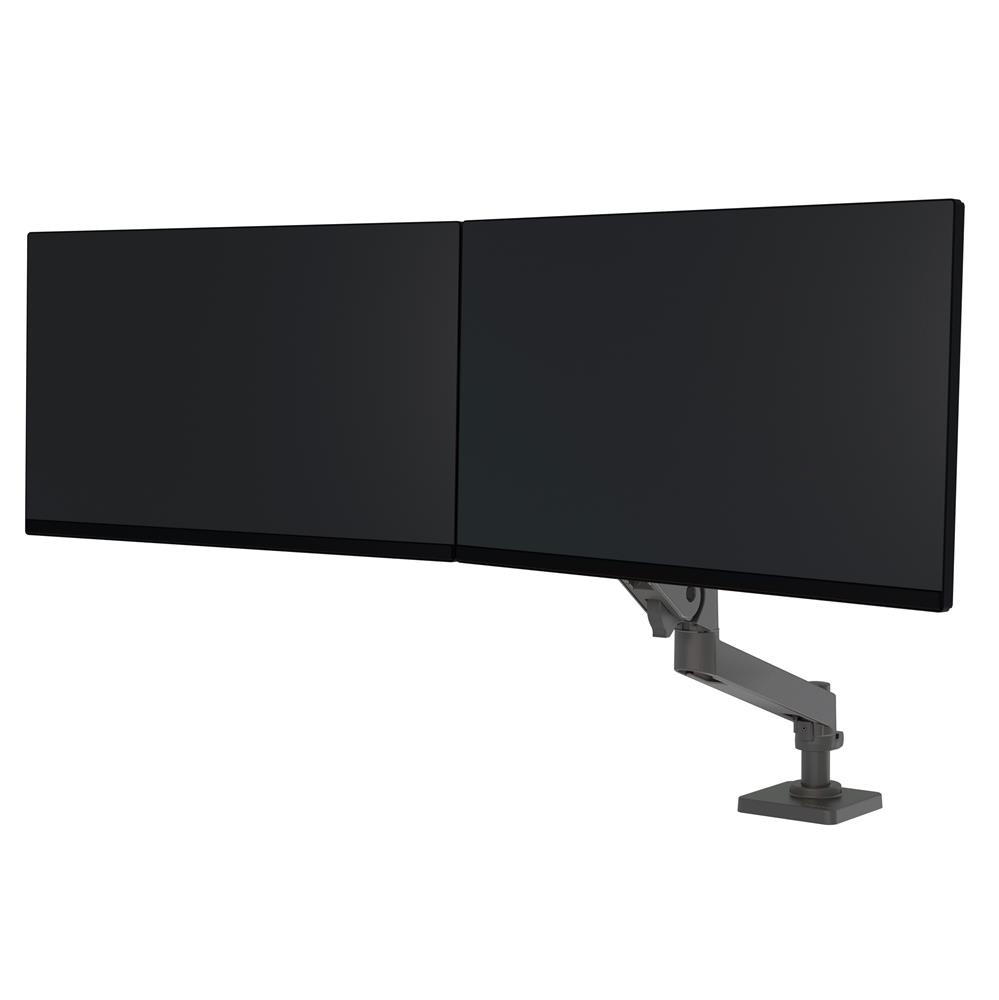

Description: LX Pro Desk Mount Dual-Direct Monitor Arm

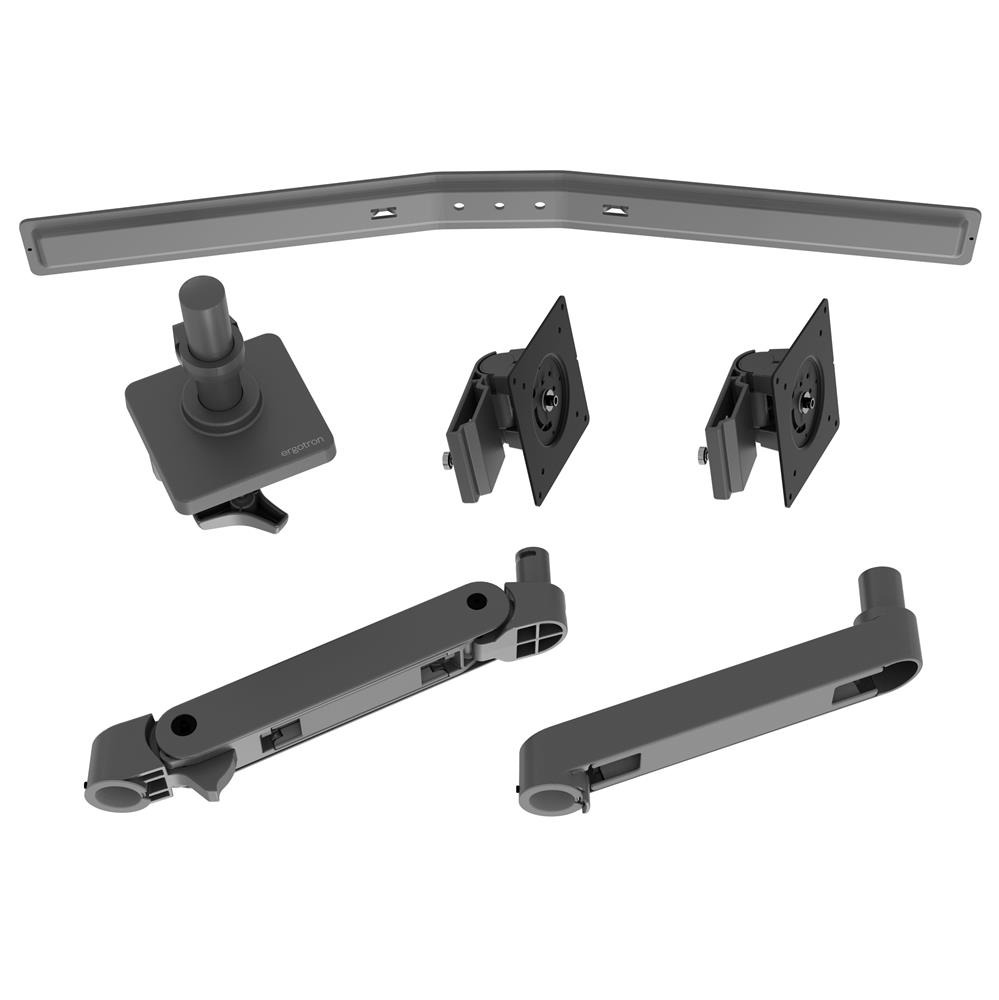

Includes arm, extension, dual bow, two monitor pivots, 2-piece desk clamp, standard base, 5" pole, pole collar, attachment hardware

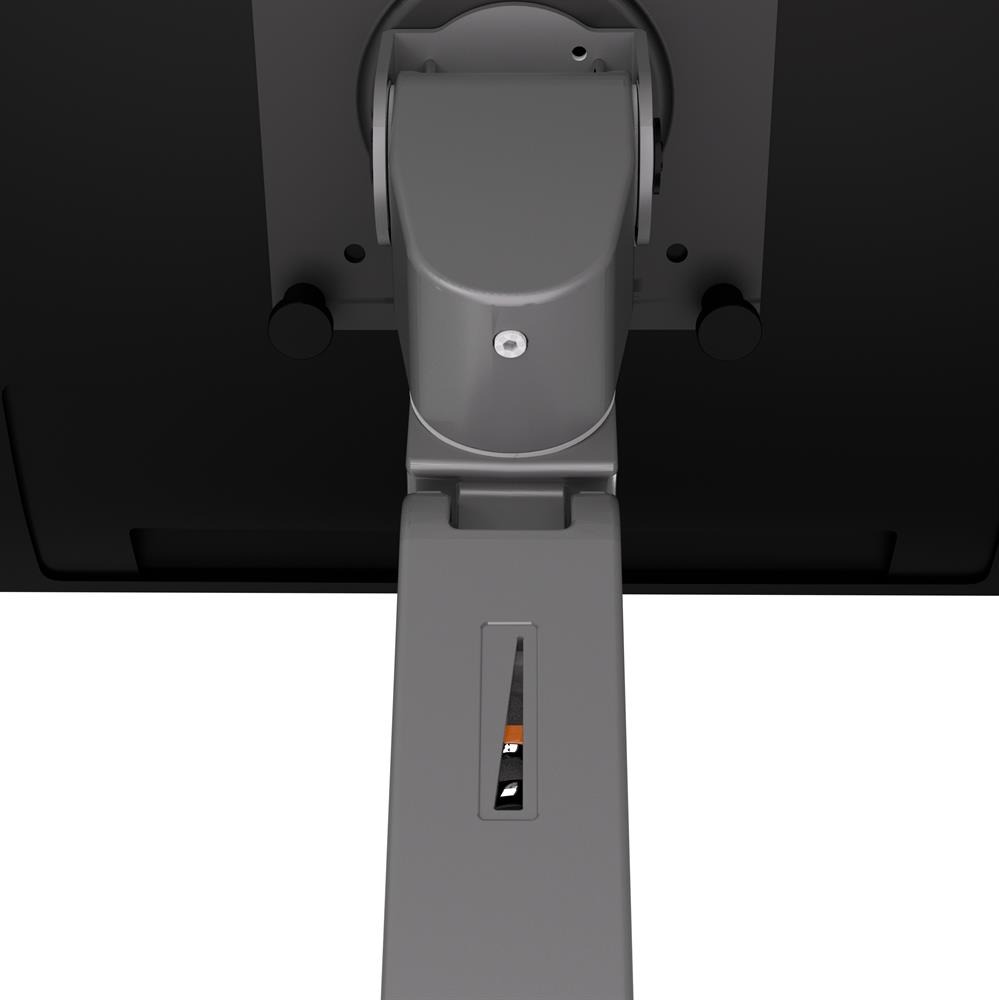

A tension-level indicator provides a visual reference when counterbalancing an arm with its device; when installing multiple arms, note the first arm’s setting for quicker adjustment
Built-in rotation-stop on the extension can be engaged to limit side-to-side motion to deter impacts with wall
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Aluminum construction offers greater durability and enhanced aesthetics
Can be configured to hold a laptop instead of a display; also order the accessory Laptop Tray (50-193-200)
† Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when displays are 2.6" (6.6 cm) thick. This accommodates most displays with screens ≤ 27" diagonal
* Weight Capacity: Maximum individual monitor weight = 9.4 lbs (4.25 kg). Total weight capacity ≤ 18.8 lbs (8.5 kg). Display depth greater than 3" (7.5 cm) may affect weight capacity

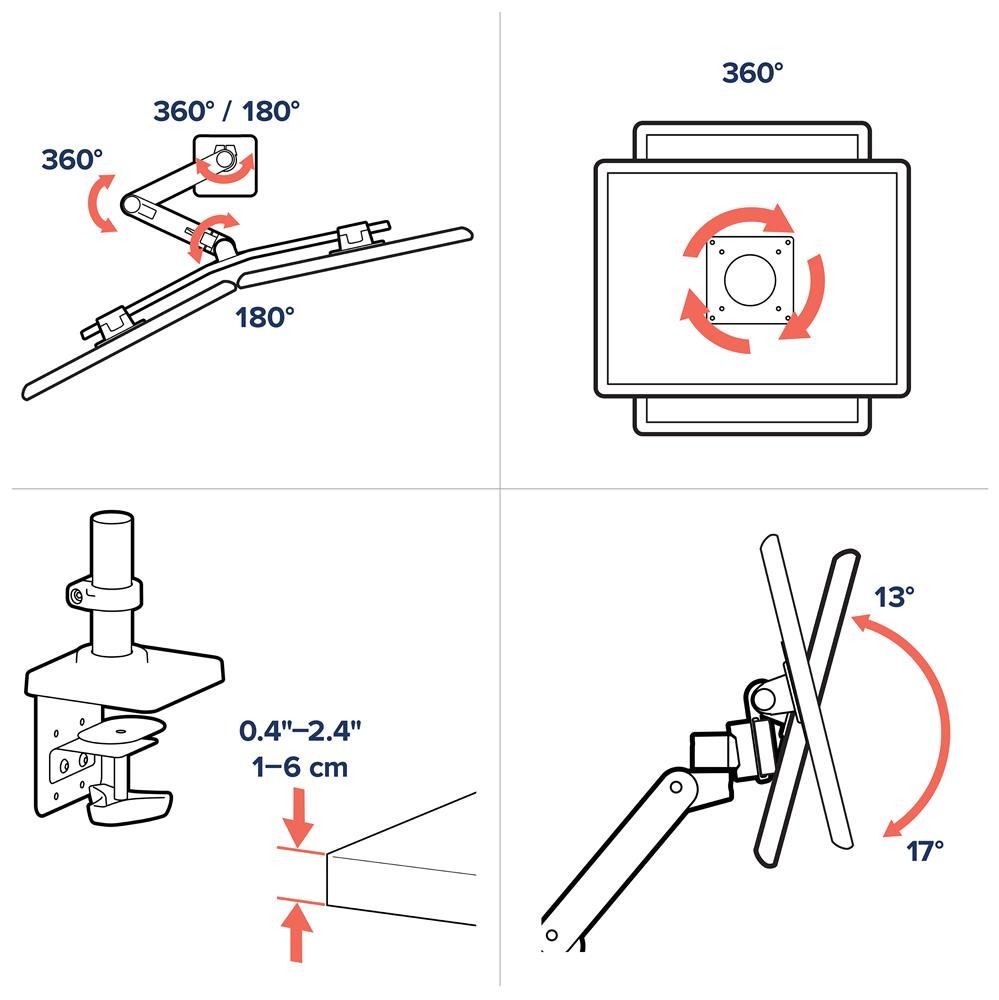

‡ Tilt Range: 13° backward, 17° forward. Each monitor tilts individually
§ Overall side-to-side panning motion is 360°, with 3 turning points at base/extension (360°), extension/arm (360°), and arm/bow (180°). Motion at the base/extension point can be restricted to 180° by engaging the built-in rotation stop

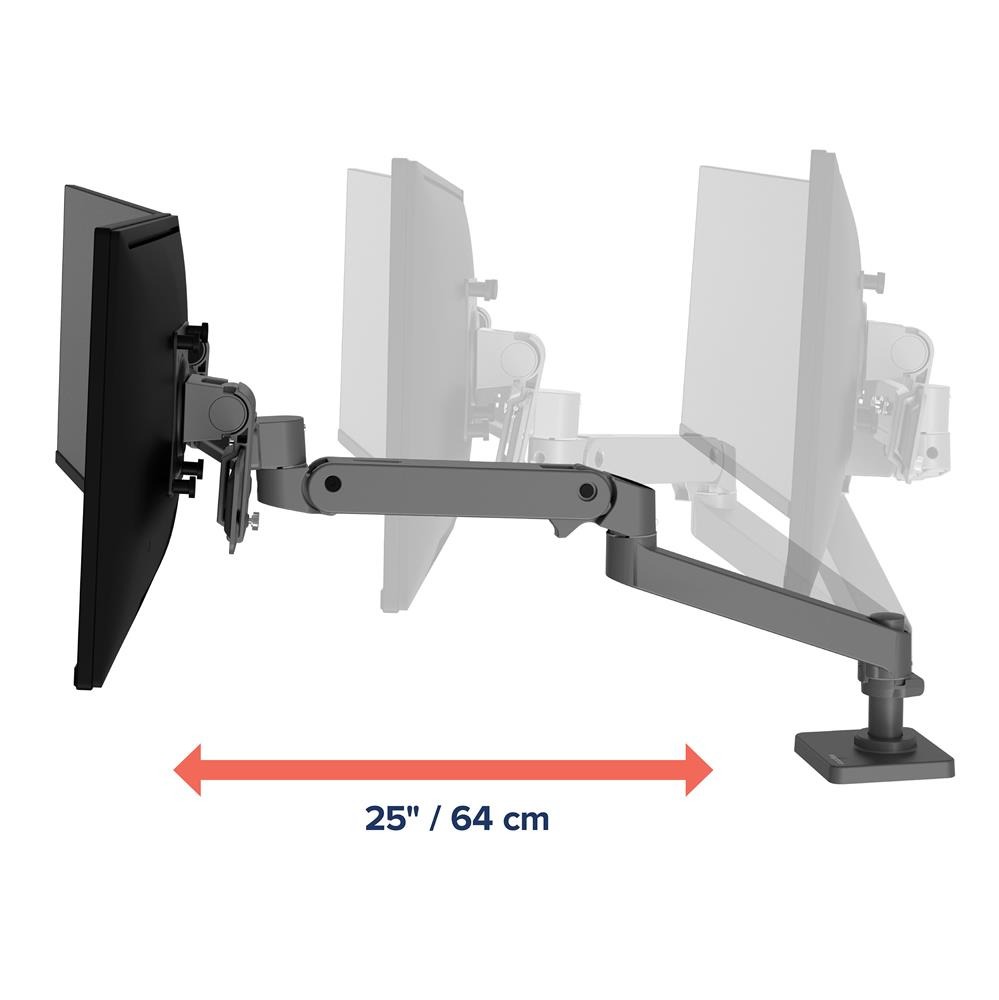

Extension Range: ≤ 25" (64 cm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Desk clamp attaches to surface edge 0.4" to 2.4" (10 to 60 mm) thick
