官方產品文件
產品介紹

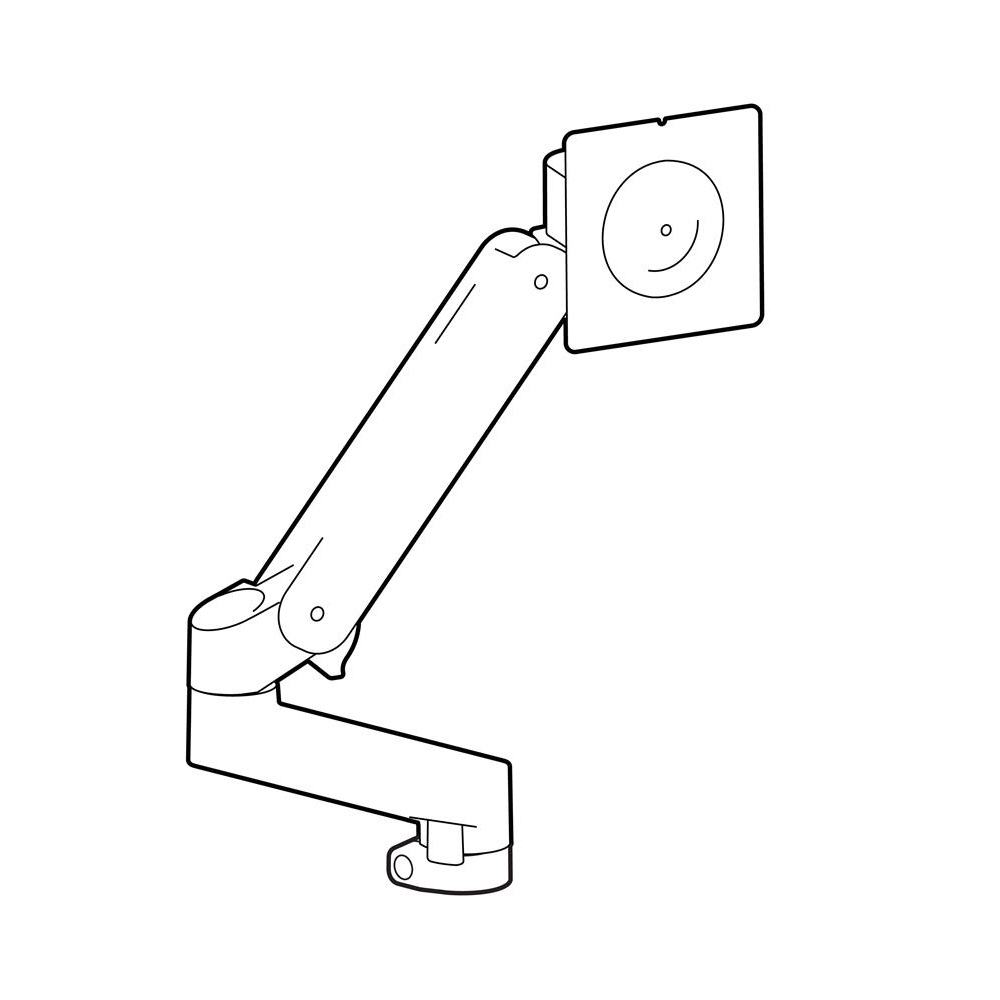

LX Pro — 擴充多螢幕套組
透過加裝額外的螢幕支臂,升級您的 LX Pro,輕鬆打造雙螢幕、三螢幕甚至四螢幕的多螢幕解決方案。
擴充套件可直接安裝於 LX Pro 主柱或搭配雙螢幕並列配件使用、靈活擴充,滿足您的進階工作需求。
主要特色
- 單支架最高耐重1.8–10kg
- 可在高度範圍33cm內輕鬆上下升降螢幕
- 螢幕可360°旋轉、上下傾斜角度85°、左右擺動幅度360°
- 通過 10,000 次循環質量測試,產品保固10年
產品規格
![]()
- GTIN: 00698833092783
- Part Number: 98-734-293
- Product Weight: 2.2 kg
- Shipping Weight: 3.2 kg
- Shipping Dimensions: 16.3" x 13.8" x 6.5" (41.5 x 35 x 16.5 cm)
- Description: LX Pro Monitor Arm, Extension and Collar Expansion Kit
- Includes arm, extension, monitor pivot, pole collar, attachment hardware
- A tension-level indicator provides a visual reference when counterbalancing an arm with its device; when installing multiple arms, note the first arm’s setting for quicker adjustment
- To install arms alongside each other, use this kit with the LX Pro Dual Side-by-Side Collar accessory, which is compatible with all LX Pro desk and wall mount bases
- To stack arms one above the other, a tall pole is necessary, making the LX Pro Large Base required. Triple or quadruple monitor configurations require stacking while also incorporating one or two Dual Side-by-Side Collar accessories
- Can be configured to hold a laptop instead of a display; also order the accessory Laptop Tray (50-193-200)
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
- Aluminum construction offers greater durability and enhanced aesthetics
- † LCD screen size is approximate. This size may be exceeded if display does not surpass weight capacity
- * Weight Capacity: 4 to 22 lbs (1.8 to 10 kg). Display depth greater than 3.6" (9 cm) may affect weight capacity
- ‡ Tilt Range: 70° backward, 15° forward
- § Overall side-to-side panning motion is 360°, with 3 turning points at base/extension (360°), extension/arm (360°), and arm/pivot (180°). Motion at the base/extension point can be restricted to 180° by engaging the built-in rotation stop
- Extension Range: ≤ 25" (64 cm)
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- LX Pro components are not compatible with the legacy LX or other product lines
- Warranty: Ten years
