產品特色
- 1 x USB-C (PD 30W), 3 x USB 3.0(5Gb/s), 1 x USB 3.1(10Gb/s), 1 x Type-C (host; PD 100W), 4 x DisplayPort & 4 x HDMI, RJ45 2.5G Ethernet, 3.5mm “two in one” audio/mic port, SD/TF card slot, DC 20V/9A 180Watt Power Supply, Power button
- Security lock to protect docking safety
- Microsoft Windows and Mac OS X compatible
- The new generation 2.5G Ethernet port supports 2.5Gbps
- Integrated SD V4.0 Card Reader with SD/Micro SD slot supportsUHS-ll theoretical bus speed up to 312MB/s
- Single & Dual display 5K@60Hz: Supports resolutions up to 5120 x 2880@60Hz when connecting dual DP ports simultaneously to a 5K monitor
- Quad display 4K@60Hz/5120x1440@60hz: Four sets of HDMI/DP ports support quad-display up to 4K@60Hz/5120x1440@60hz
- The USB-C (host) charges your laptop with max. 100W power, and the USB-C port on the front supports 30W PD charging for any device that complies with USB PD charging
產品介紹
All-in-One Dock for Pros
Enjoy a neat workstation

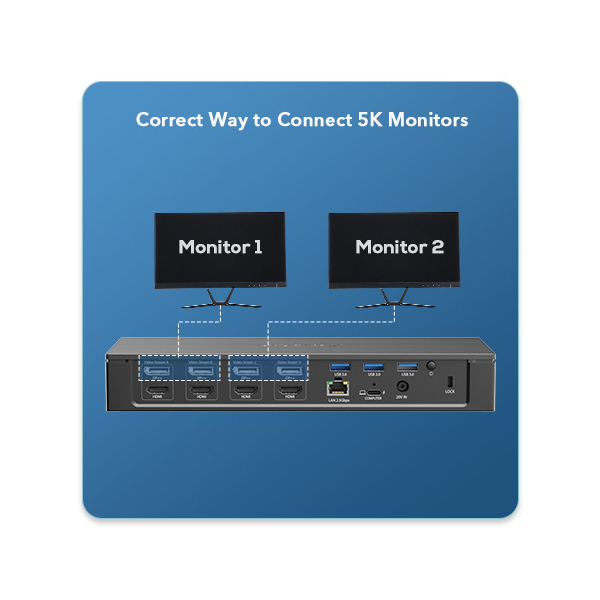

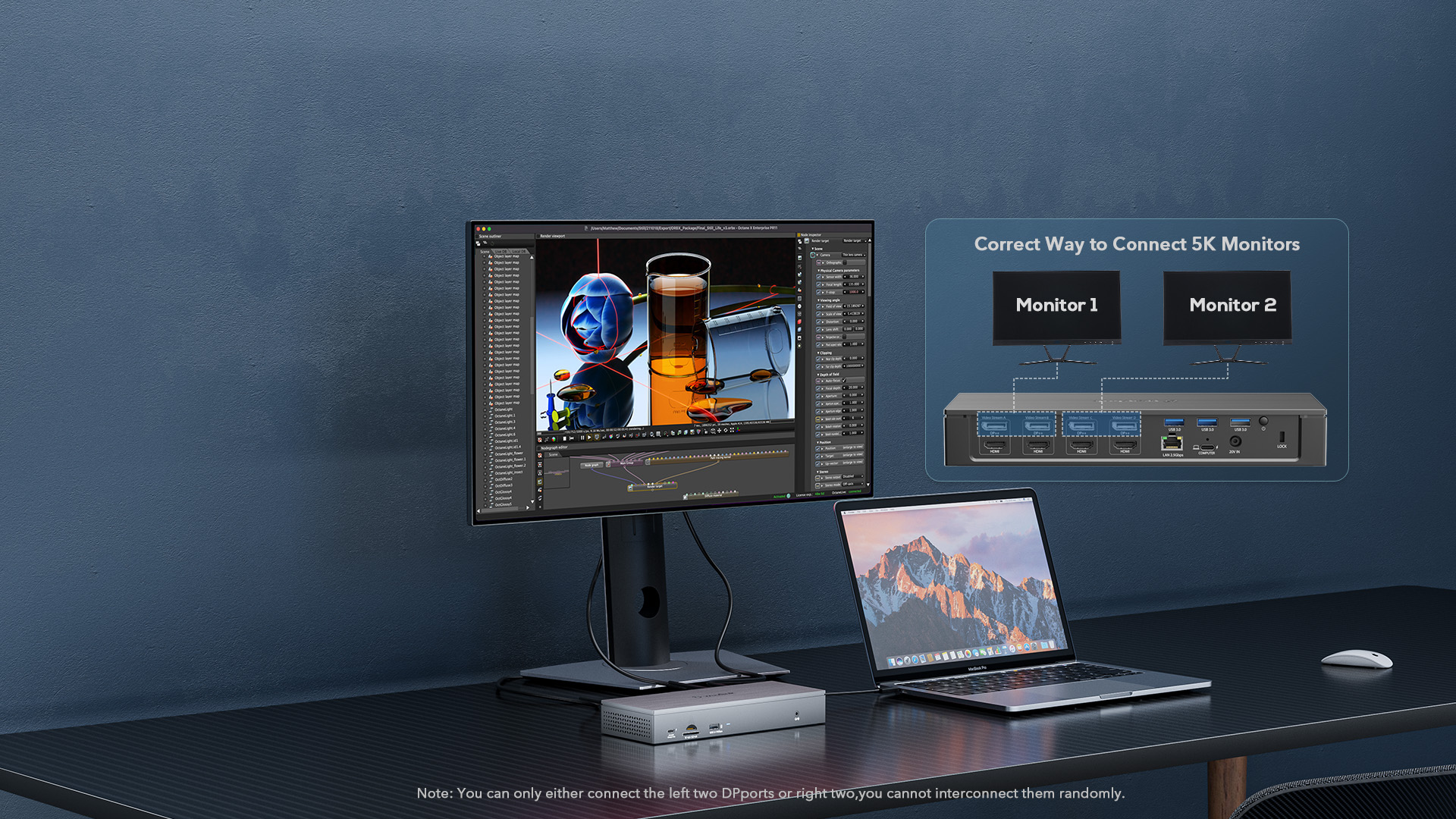

Single & Dual display 5K@60Hz
Supports resolutions up to 5120 x 2880@60Hz when connecting dual DP ports simultaneously to a 5K monitor

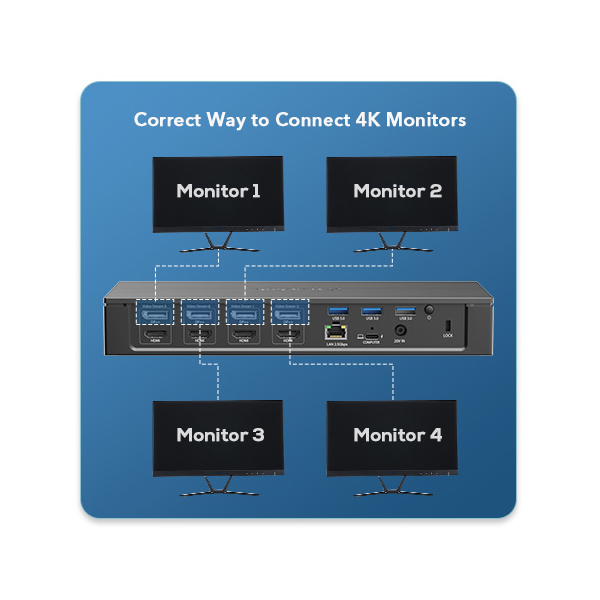

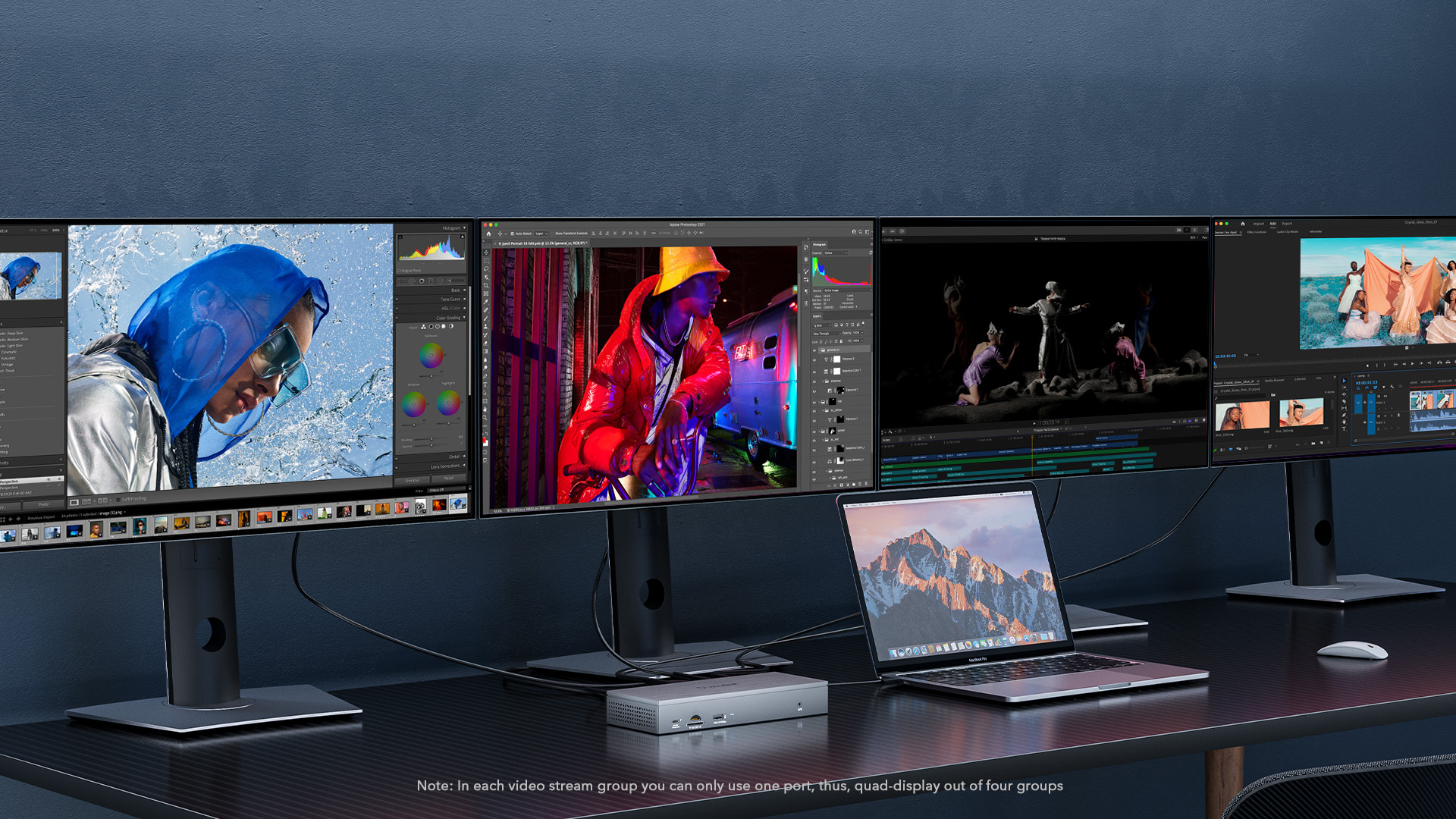

Quad Display 4K@60Hz
Support quad display, max. resolution up to 3840x2160@60Hz

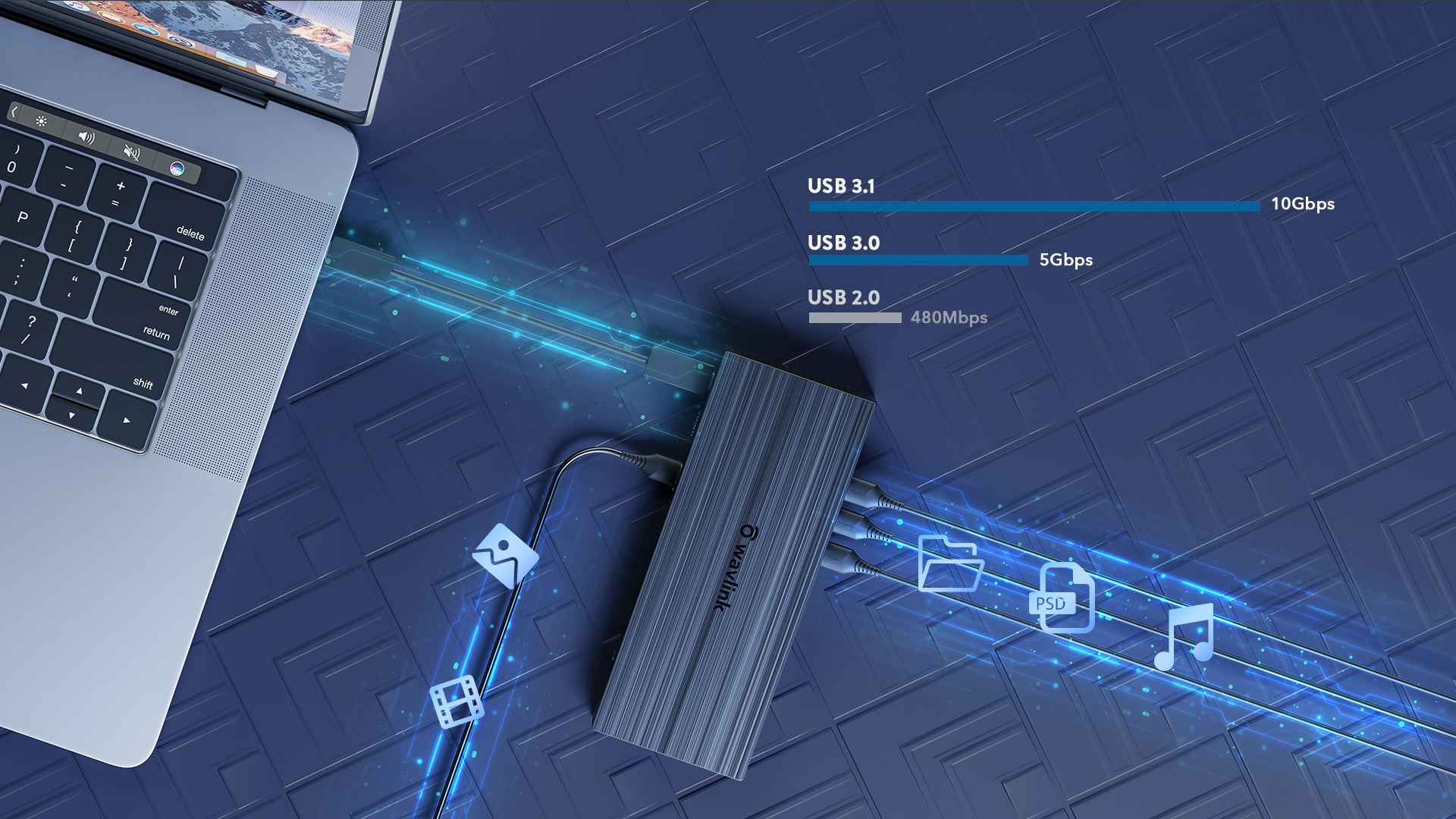

Super-Speed USB 3.0
3 x USB3.0(5Gbps) & 1 x USB3.1(10Gbps) for different needs

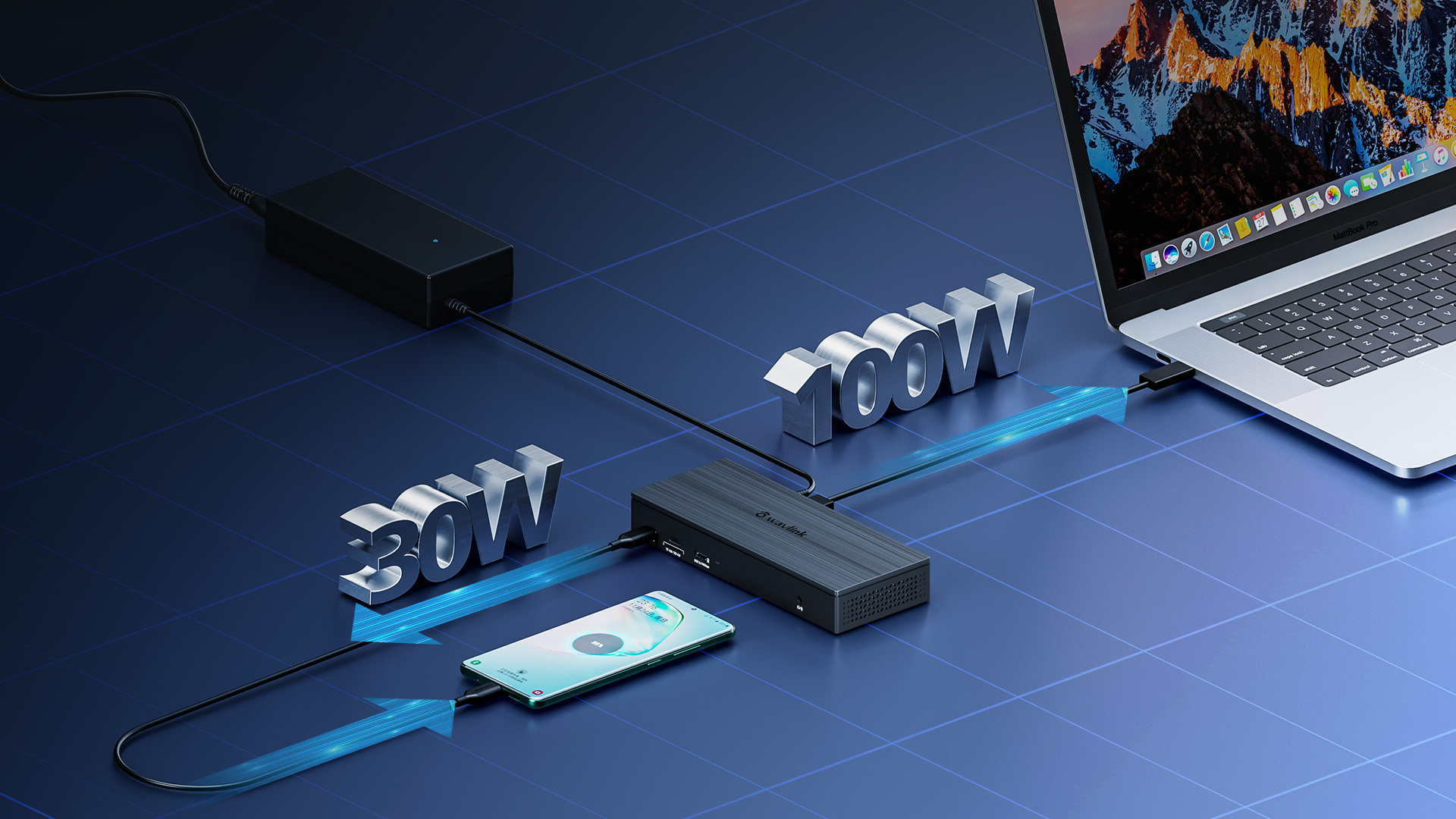

Dual PD Quick Charging
The USB-C (host) charges your laptop with max. 100W power, and the USB-C port on the front supports 30W PD charging for any device that complies with USB PD charging

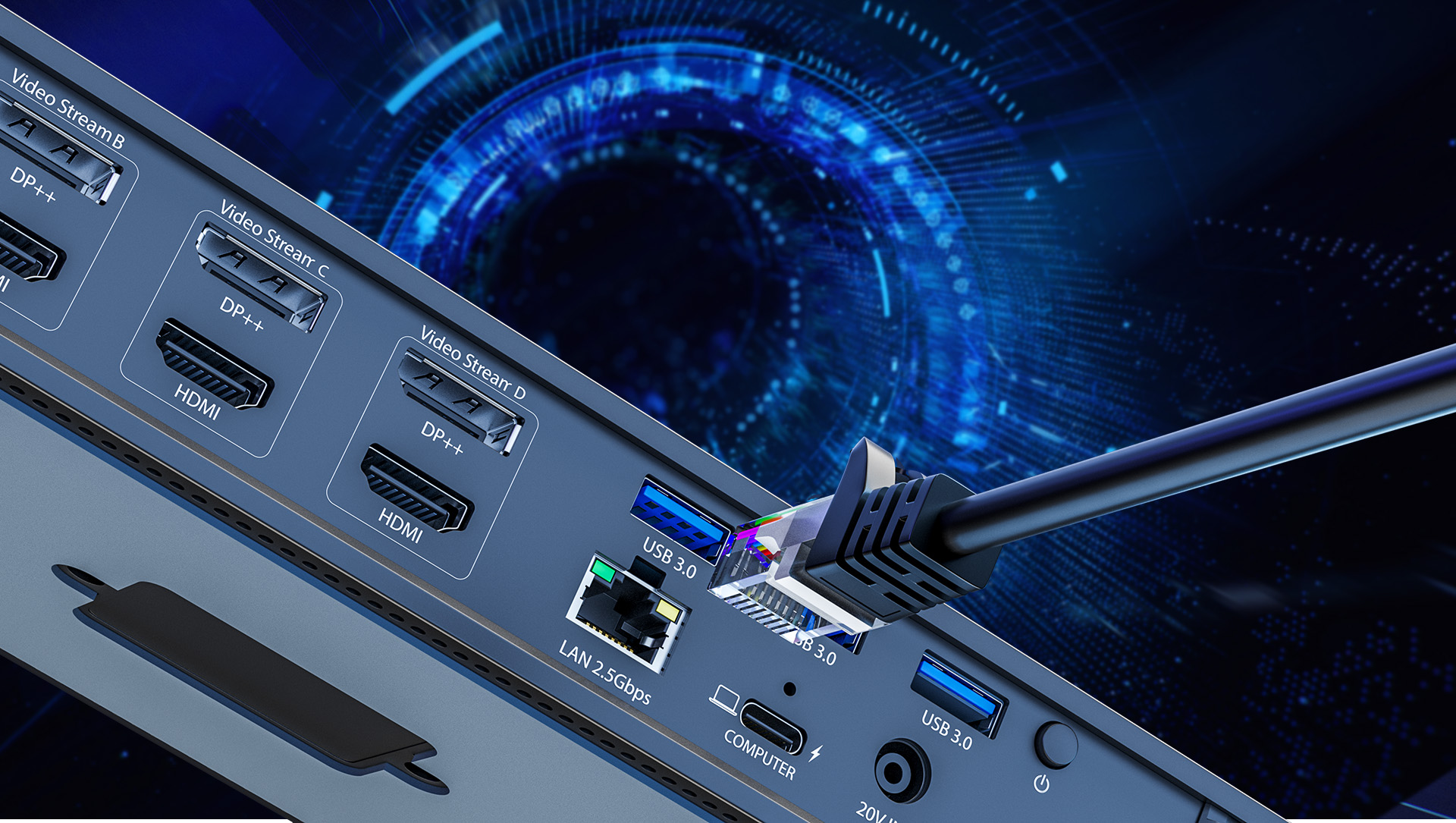

2.5G Ethernet Port
2.5G Ethernet port provides stable full network performance in wired connection, enhancing your use experience.

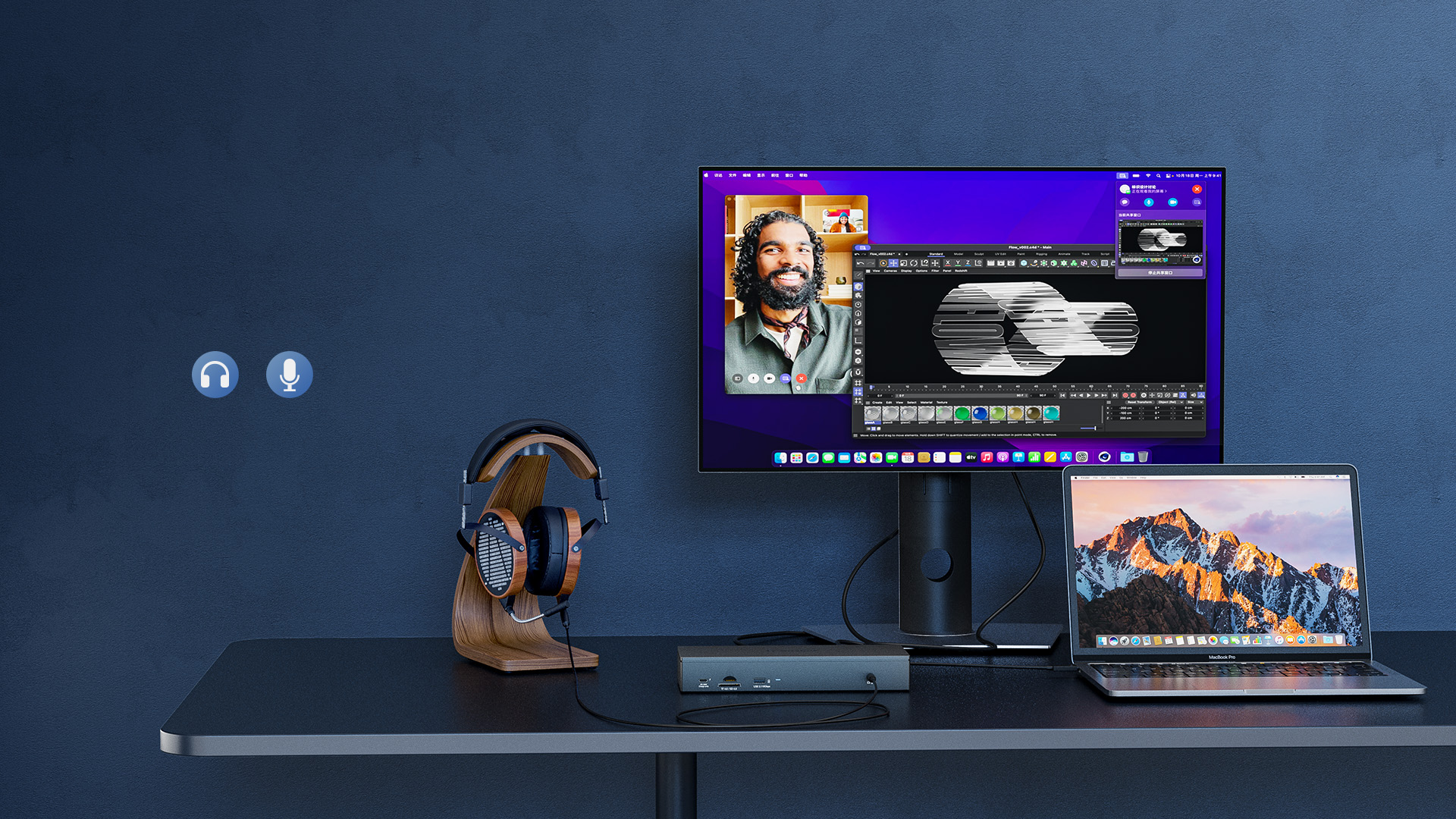

Two in One
Audio Out & Mic in Port
Integrated combo audio headset and microphone port can connect microphones, headphones or mini stereos, improving the access experience qualitatively and efficiently.

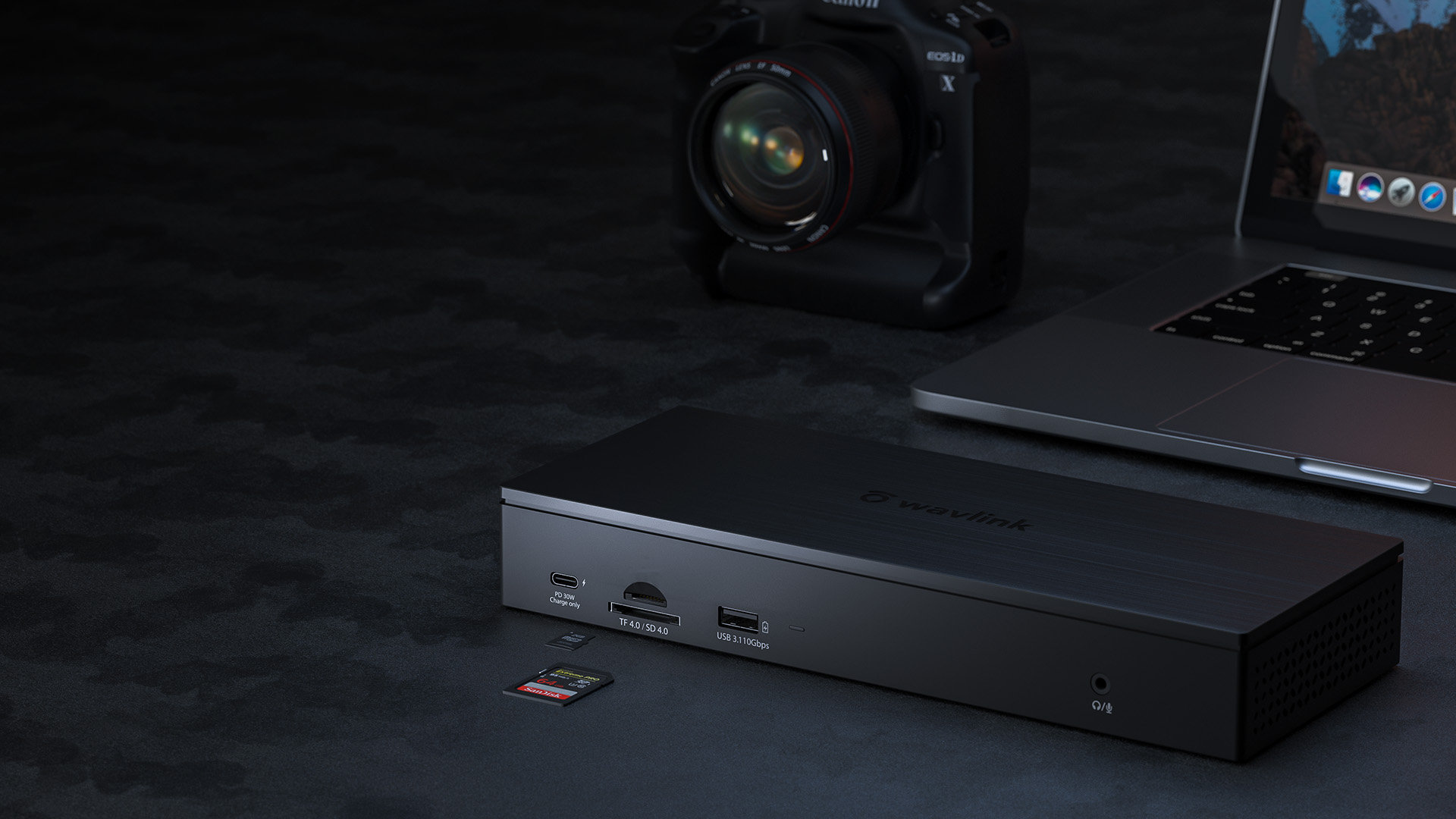

SD/Micro SD V4.0
Reading Simultaneously
Integrated SD V4.0 Card Reader with SD/Micro SD slot supports UHS-II theoretical bus speed up to 312MB/s

Built-in-Heat sink
76252mm² heat dissipation area enables stable operation even in 60 ° high temperature environment

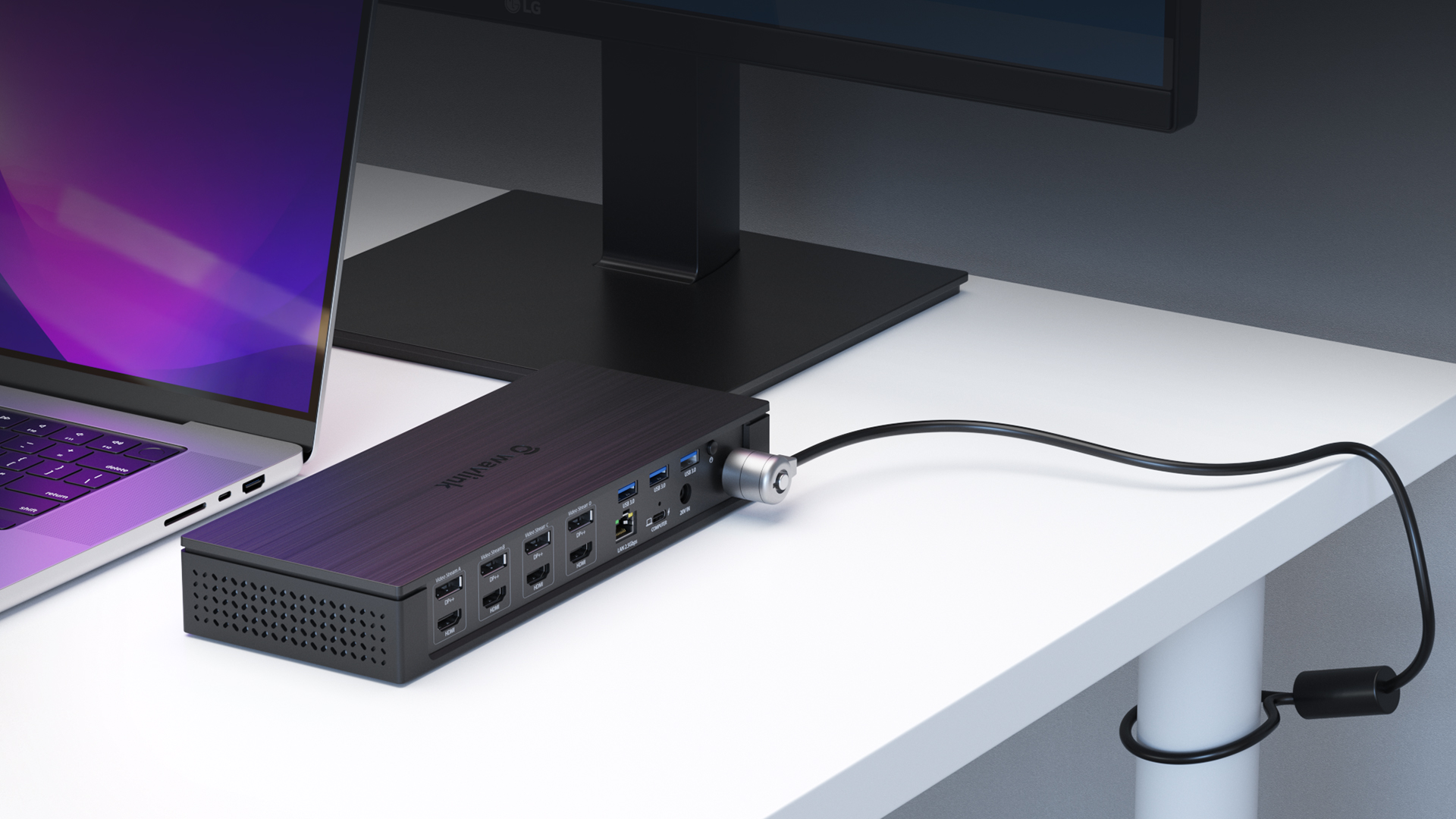

Supporting Kensington Lock
This docking station supports Kensington lock for security, which can save your device and important data from theft.

產品規格
- Model
WL-UG69PD8 Pro

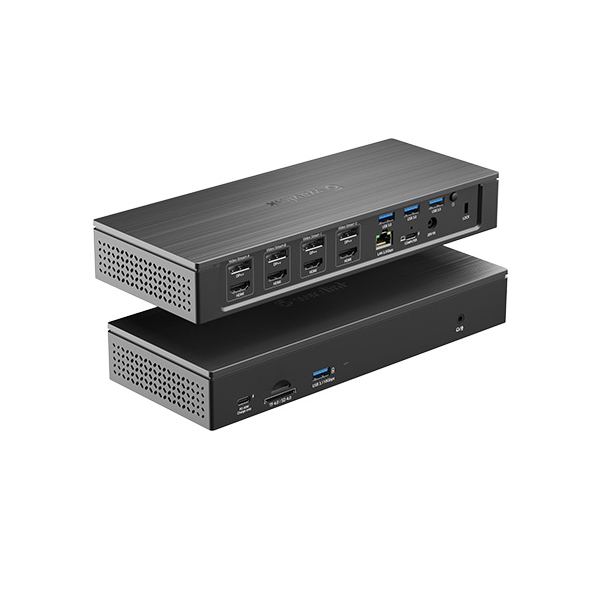

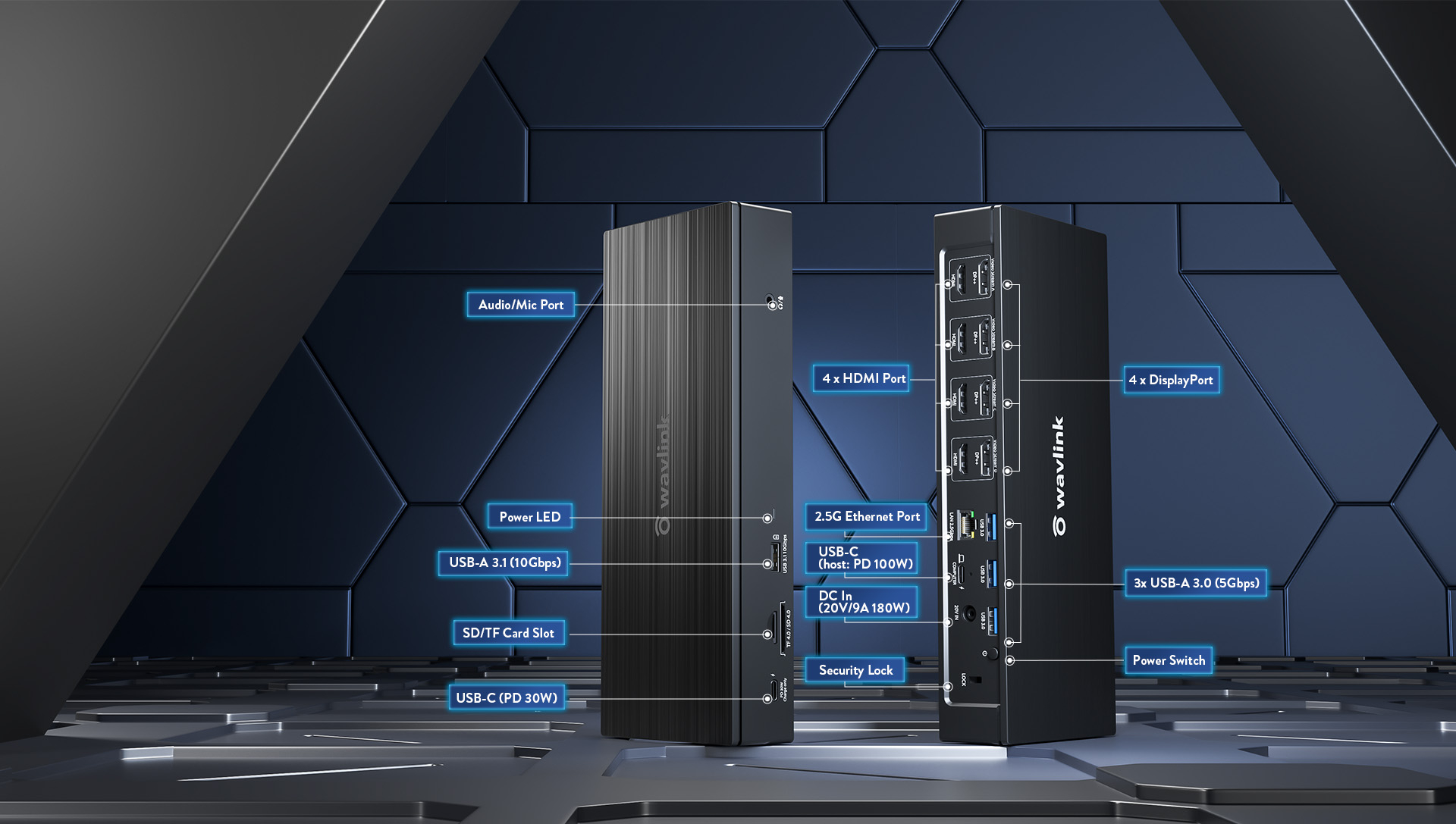

- Ports
1 x USB-C(PD 30W)
1 x USB-C(host: PD 100W)
4 x DisplayPort
4 x HDMI
1 x USB-A 3.1(10Gbps)
3 x USB-A 3.0(5Gbps)
1 x 2.5G Ethernet Port
1 x DC In(20V/9A 180W)
1 x Security lock
1 x Audio/Mic Port
1 x SD/TF Card Slot
- Buttons
1 x Power Switch
- LED
1 x Power LED
- Power Supply
DC20V/9A 180W
DIMENSIONS
FUNCTIONS
- Working Standards
USB-C upstream: USB3.1 Gen2 (10G Data and PD3.0 Charging)
DP/HDMI: 4K/60Hz
USB3.1 Type-A : 10Gbps
USB3.0 Type-A : 5Gbps
RJ45: 2.5Gbps Ethernet
4-pole Phone Jack: TRRS / Stereo
SD / TF: SD V4.0
USB-C downstream: PD3.0 30W
- Operating System Support
Microsoft Windows 7 / 8 / 10
Apple Mac OS 10.8 or later

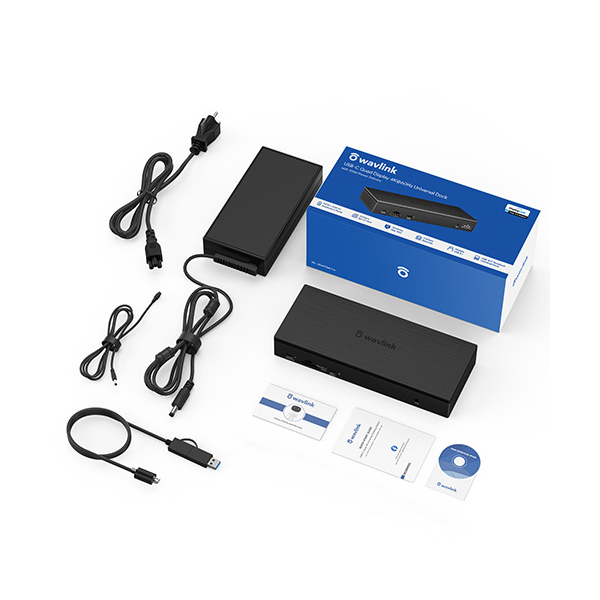

PACKAGE
- 1 x WL-UG69PD8 Pro Dual 5K Universal Docking Station
- 1 × 2-in-1 USB-C to USB-C cable with USB-A connector
- 1 x DC20V/9A 180W power adapter
- 1 x AC power cable
- 1 x Cable holder
- 1 x Quick start guide
