LX Pro 在經典 LX 設計的基礎上進行升級,結合流暢動作、靈活架構與精簡外觀,確保工作環境更加舒適與高效。
主要特色
提升舒適度:更流暢的移動方式,減少調整阻力,提供最佳的人體工學定位。
提高生產力:可升降、傾斜和旋轉鍵盤,找到最適合的輸入角度,自由打字。
模組化架構:靈活的設計與配件擴充能力,適用於各種工作站配置。
最大化工作空間:可將鍵盤定位於所需位置,並可折疊收納,距離牆面僅 4 英吋(10 公分)。
保護周圍表面:內建旋轉限制機制,避免支架碰撞牆面。
簡易安裝:零件更少、調整直覺化,讓組裝變得輕鬆無比。
產品規格
GTIN: 00698833091717
Part Number: 45-690-290
Product Weight: 7.3 kg
Shipping Weight: 9.9 kg
Shipping Dimensions: 22.8" x 18.6" x 6.5" (60 x 47 x 17 cm)

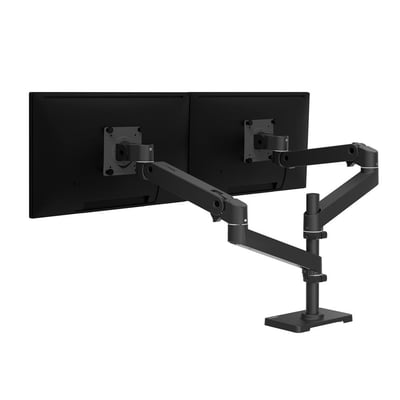

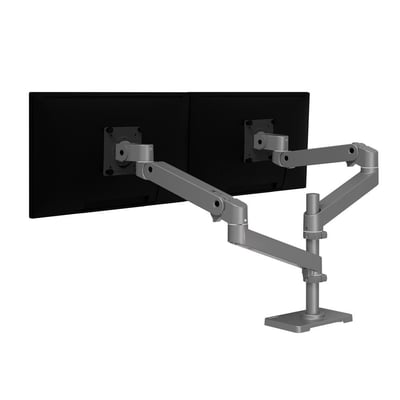

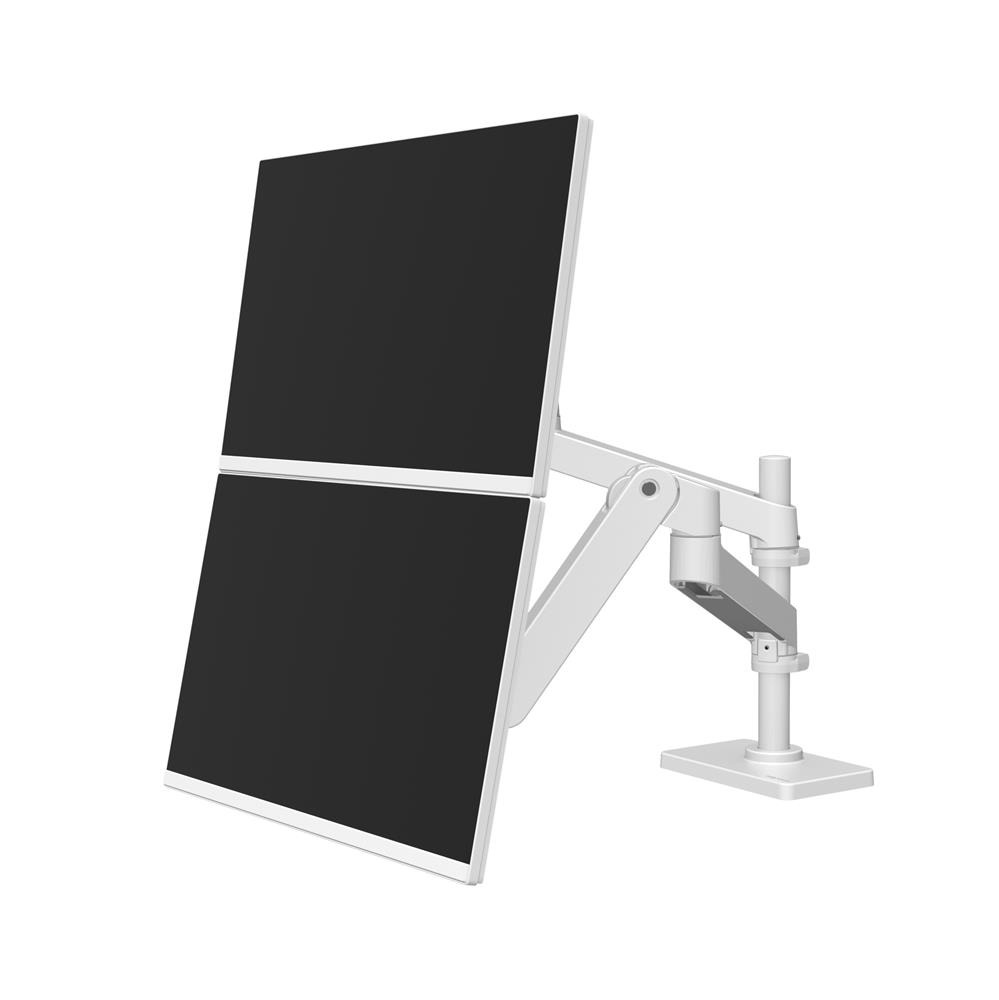

Description: LX Pro Dual Monitor Arm, Stacking

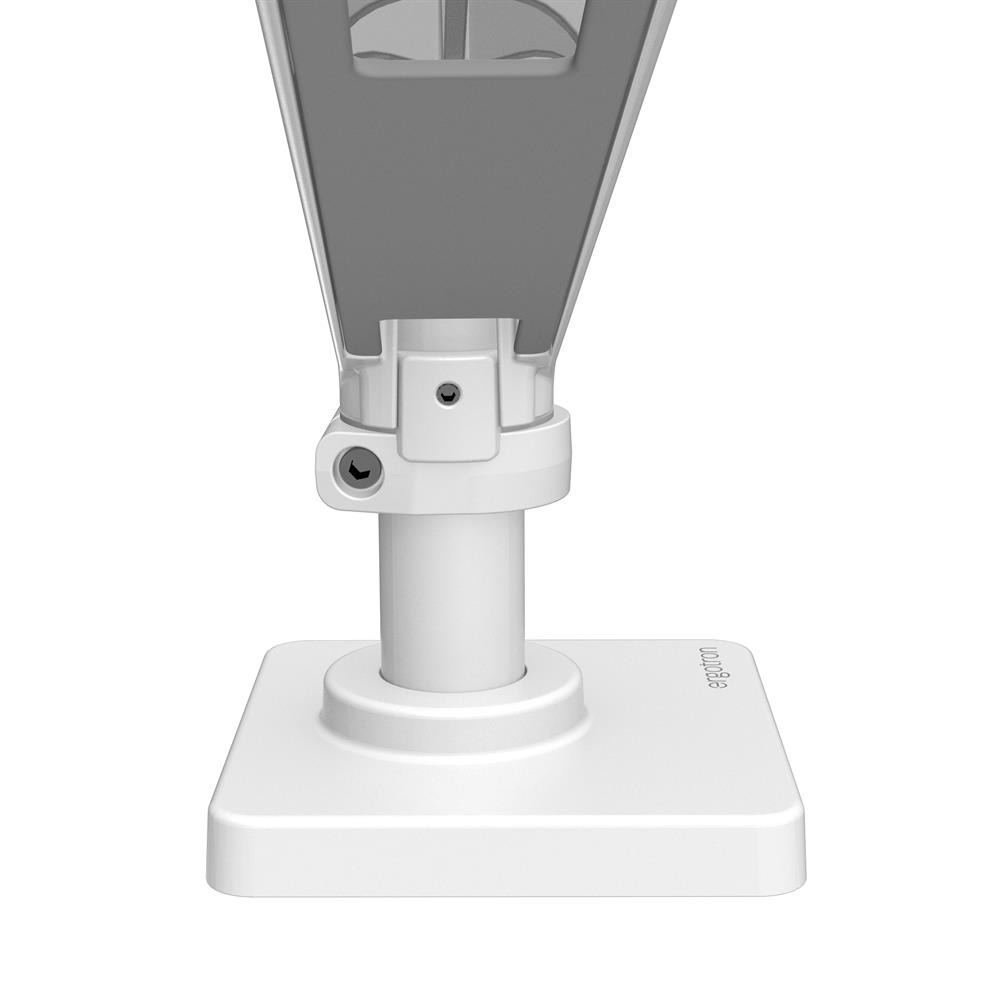

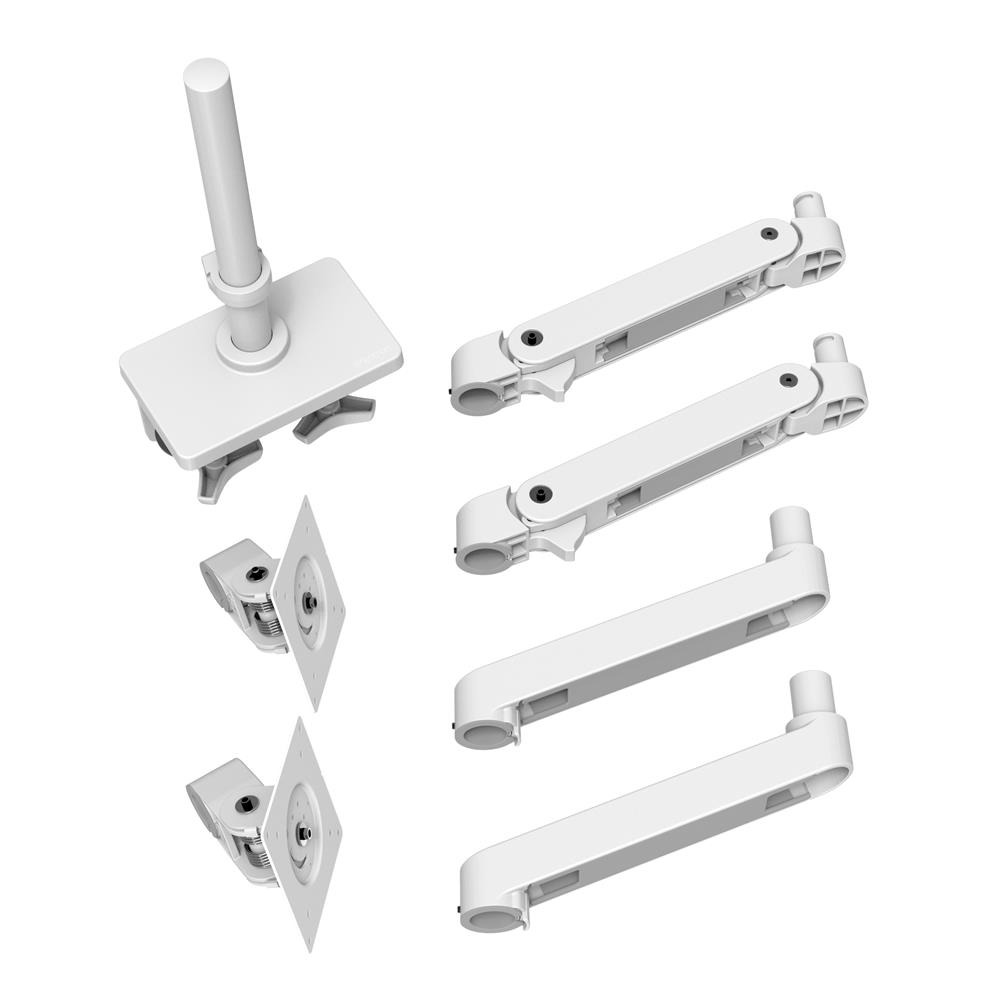

Includes two arms, two extensions, two monitor pivots, 2-piece desk clamp, large base, 12" pole, two pole collars, attachment hardware

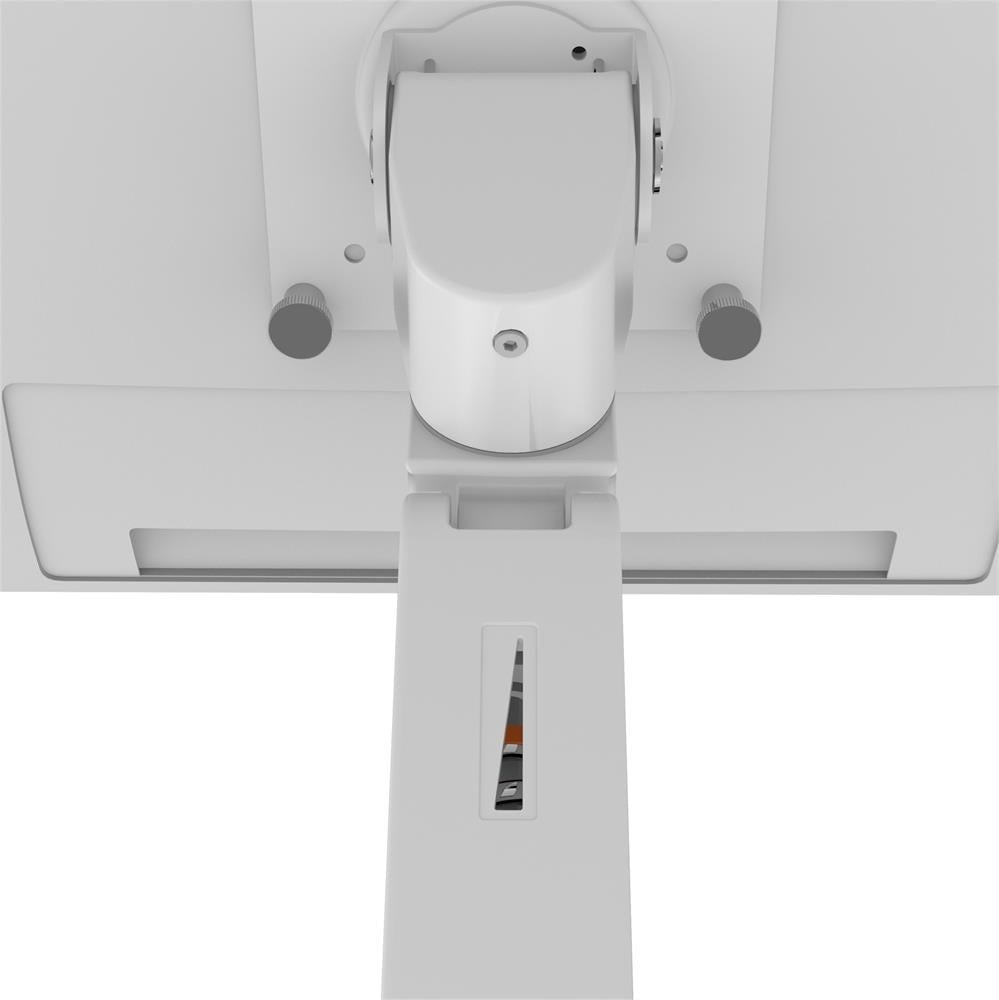

A tension-level indicator provides a visual reference when counterbalancing an arm with its device; when installing multiple arms, note the first arm’s setting for quicker adjustment
Built-in rotation-stop on the extension can be engaged to limit side-to-side motion to deter impacts with wall
Can be configured to hold a laptop instead of a display; also order the accessory Laptop Tray (50-193-200)
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Aluminum construction offers greater durability and enhanced aesthetics
† LCD screen size is approximate. This size may be exceeded if display does not surpass weight capacity. Larger displays’ motion range may be limited. To facilitate stacking of monitors, maximum outside height of display can be no more than 14" (35 cm)

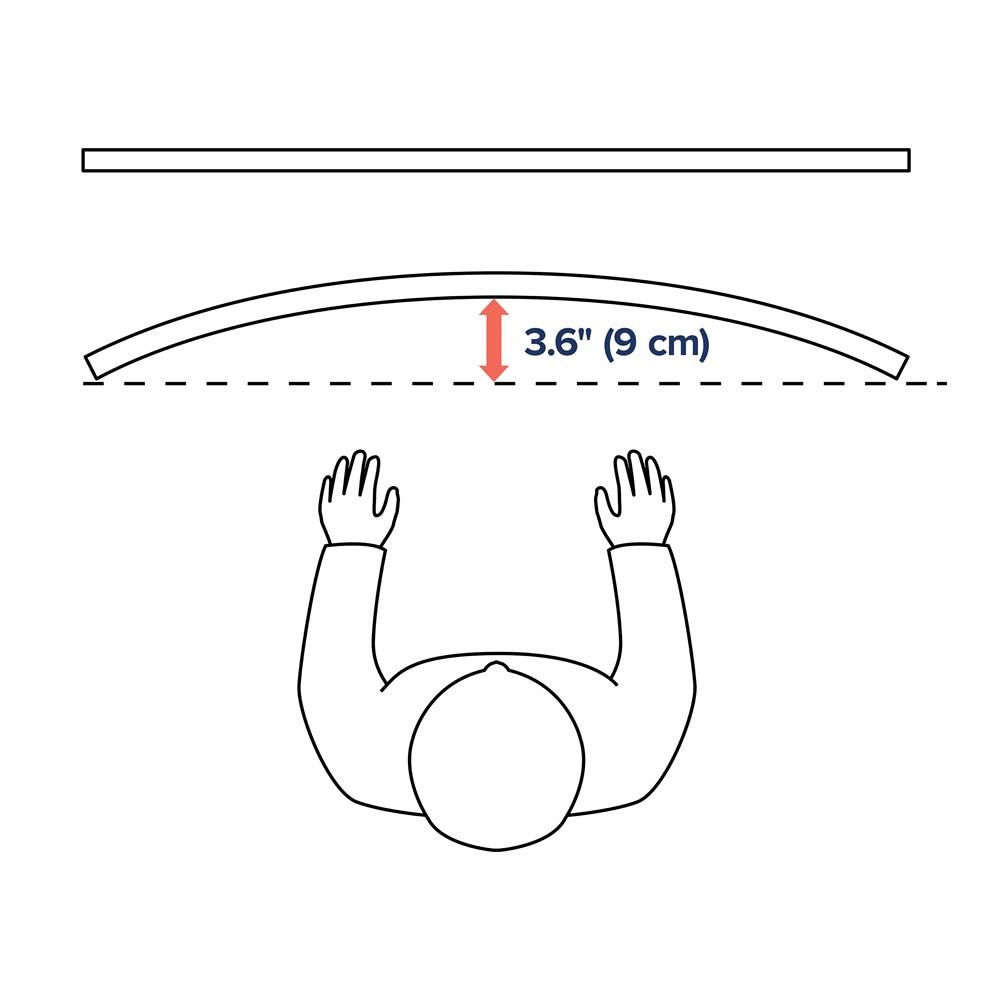

* Weight Capacity: Individual monitor weight = 4–22 lbs (1.8–10 kg). Total weight capacity = 8–44 lbs (3.6–20 kg). Monitor depth greater than 3.6" (9 cm) may diminish capacity

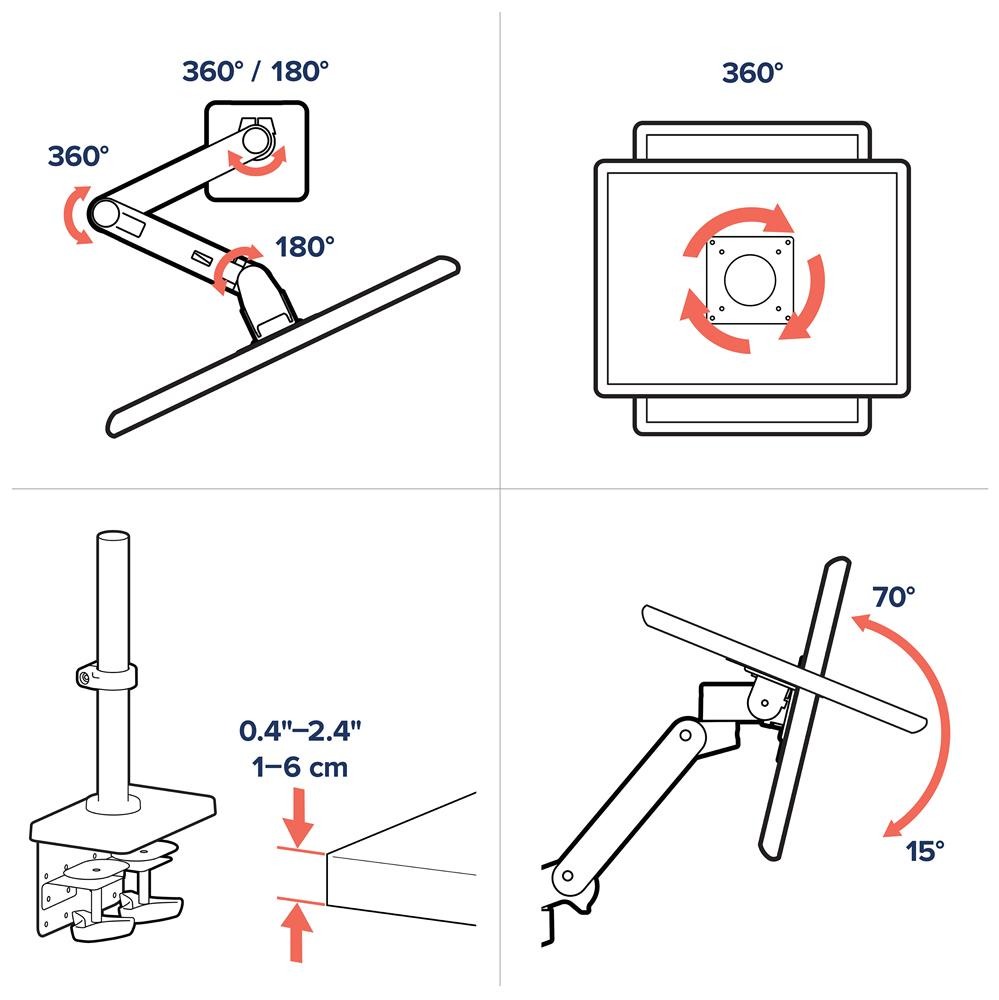

‡ Tilt Range: 70° backward, 15° forward
§ Overall side-to-side panning motion is 360°, with 3 turning points at base/extension (360°), extension/arm (360°), and arm/pivot (180°). Motion at the base/extension point can be restricted to 180° by engaging the built-in rotation stop

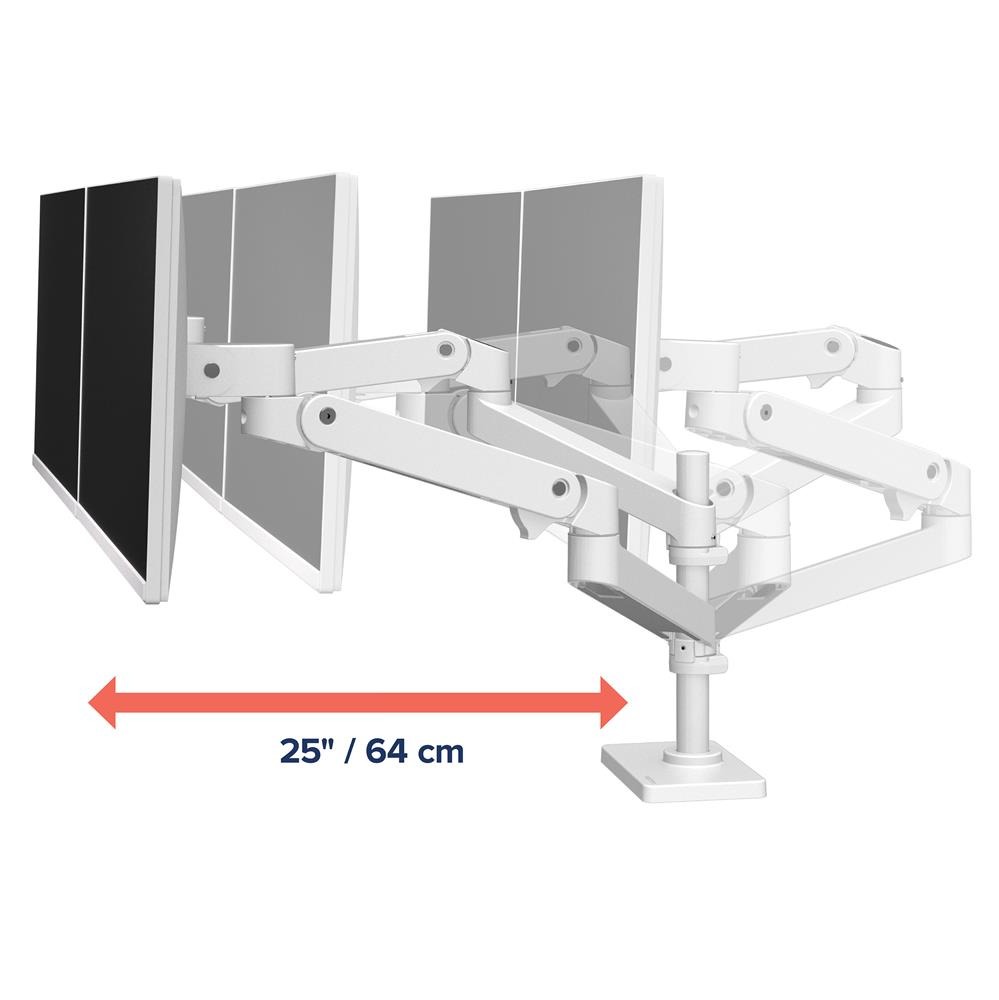

Extension Range: ≤ 25" (64 cm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Desk clamp attaches to surface edge 0.4" to 2.4" (10 to 60 mm) thick
