LX Pro 在經典 LX 設計的基礎上進行升級,結合流暢動作、靈活架構與精簡外觀,確保工作環境更加舒適與高效。
主要特色
提升舒適度:更流暢的移動方式,減少調整阻力,提供最佳的人體工學定位。
提高生產力:可升降、傾斜和旋轉鍵盤,找到最適合的輸入角度,自由打字。
模組化架構:靈活的設計與配件擴充能力,適用於各種工作站配置。
最大化工作空間:可將鍵盤定位於所需位置,並可折疊收納,距離牆面僅 4 英吋(10 公分)。
保護周圍表面:內建旋轉限制機制,避免支架碰撞牆面。
簡易安裝:零件更少、調整直覺化,讓組裝變得輕鬆無比。
產品規格
GTIN: 00698833091694
Part Number: 45-686-290
Product Weight: 6.3 kg
Shipping Weight: 8.9 kg
Shipping Dimensions: 27.2" x 13.5" x 6.5" (69 x 34 x 17 cm)

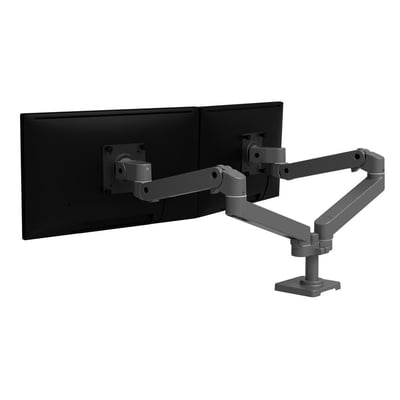

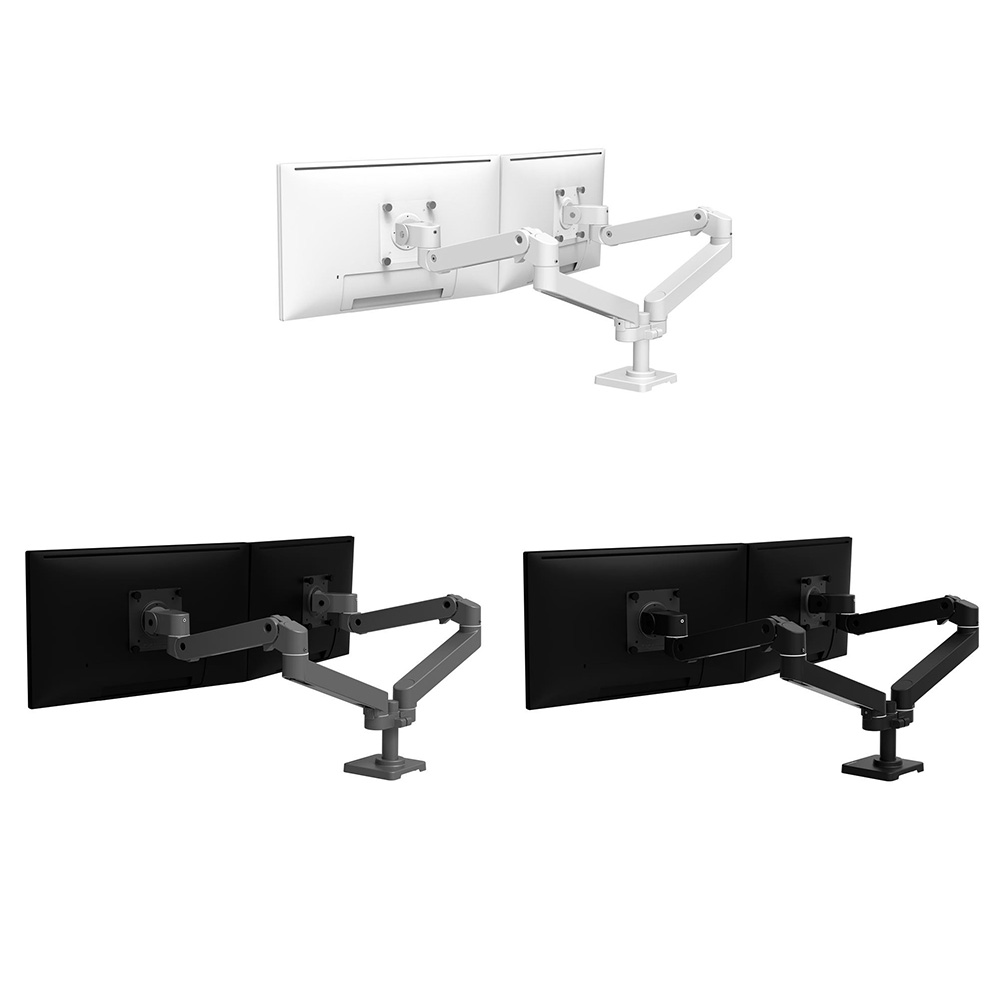

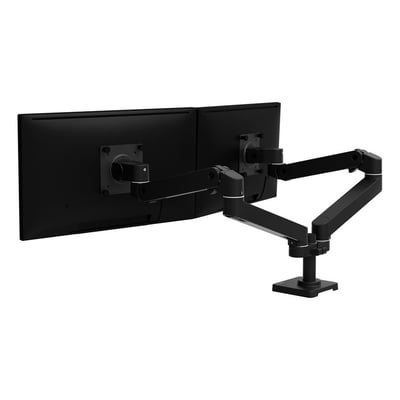

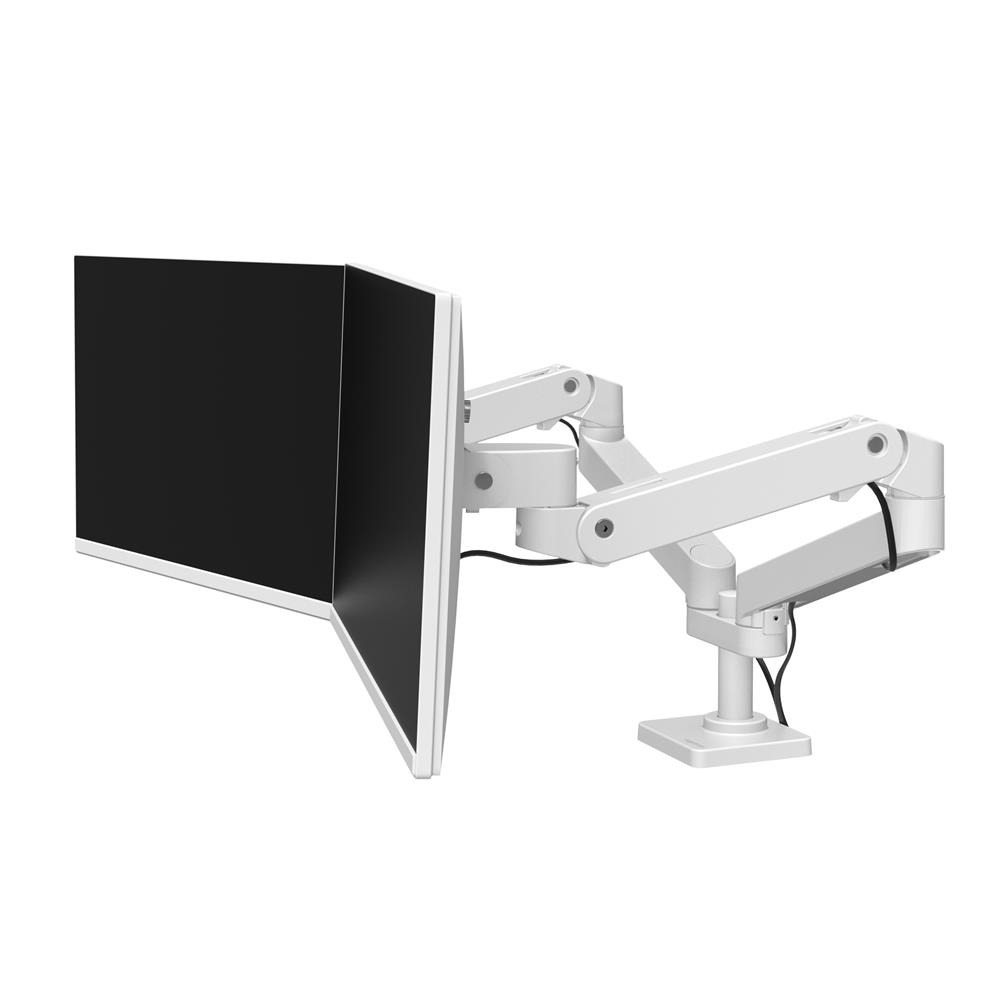

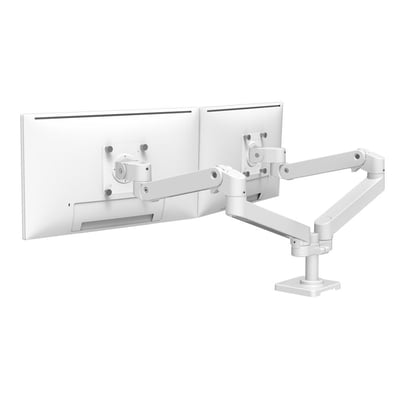

Description: LX Pro Dual Monitor Arm, Side-by-Side

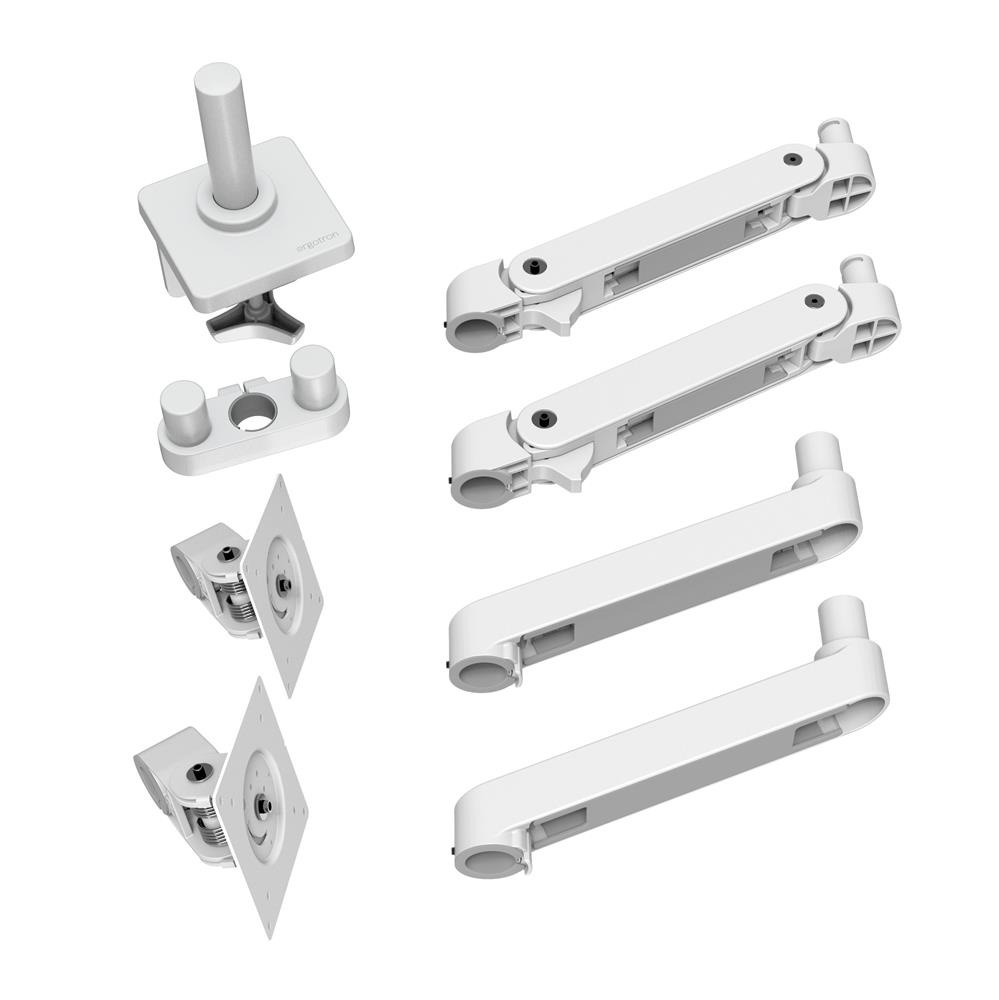

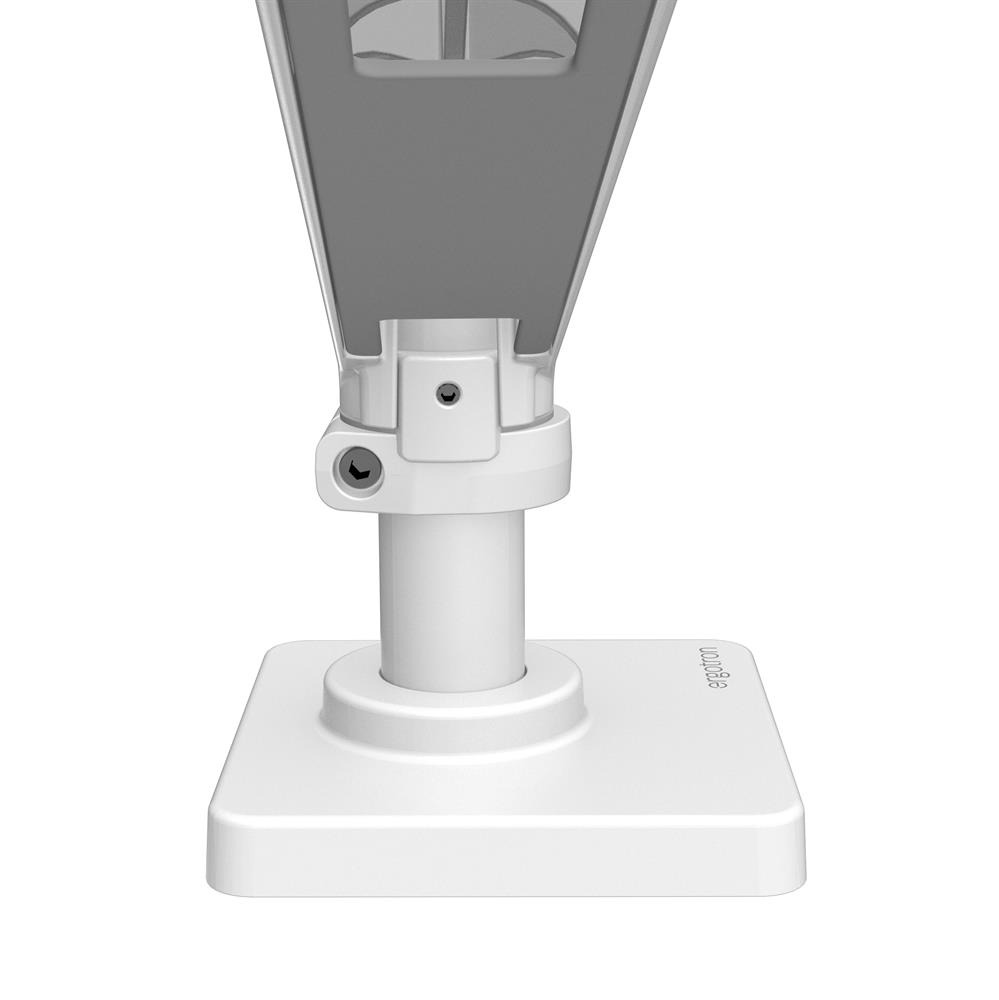

Includes two arms, two extensions, two monitor pivots, 2-piece desk clamp, standard base, 5" pole, side-by-side T-bracket, attachment hardware

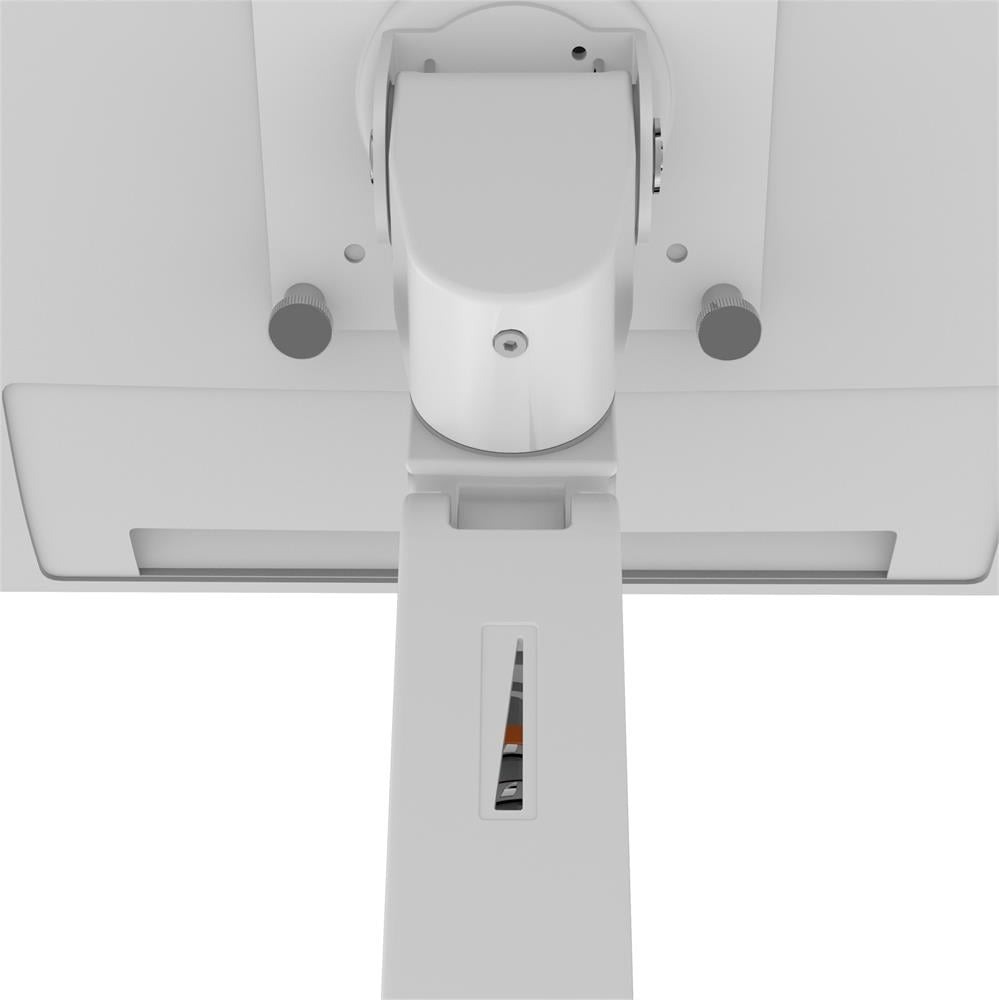

A tension-level indicator provides a visual reference when counterbalancing an arm with its device; when installing multiple arms, note the first arm’s setting for quicker adjustment
Built-in rotation-stop on the extension can be engaged to limit side-to-side motion to deter impacts with wall
Can be configured to hold a laptop instead of a display; also order the accessory Laptop Tray (50-193-200)
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Aluminum construction offers greater durability and enhanced aesthetics
† LCD screen size is approximate. This size may be exceeded if display does not surpass weight capacity. Larger displays’ motion range may be limited

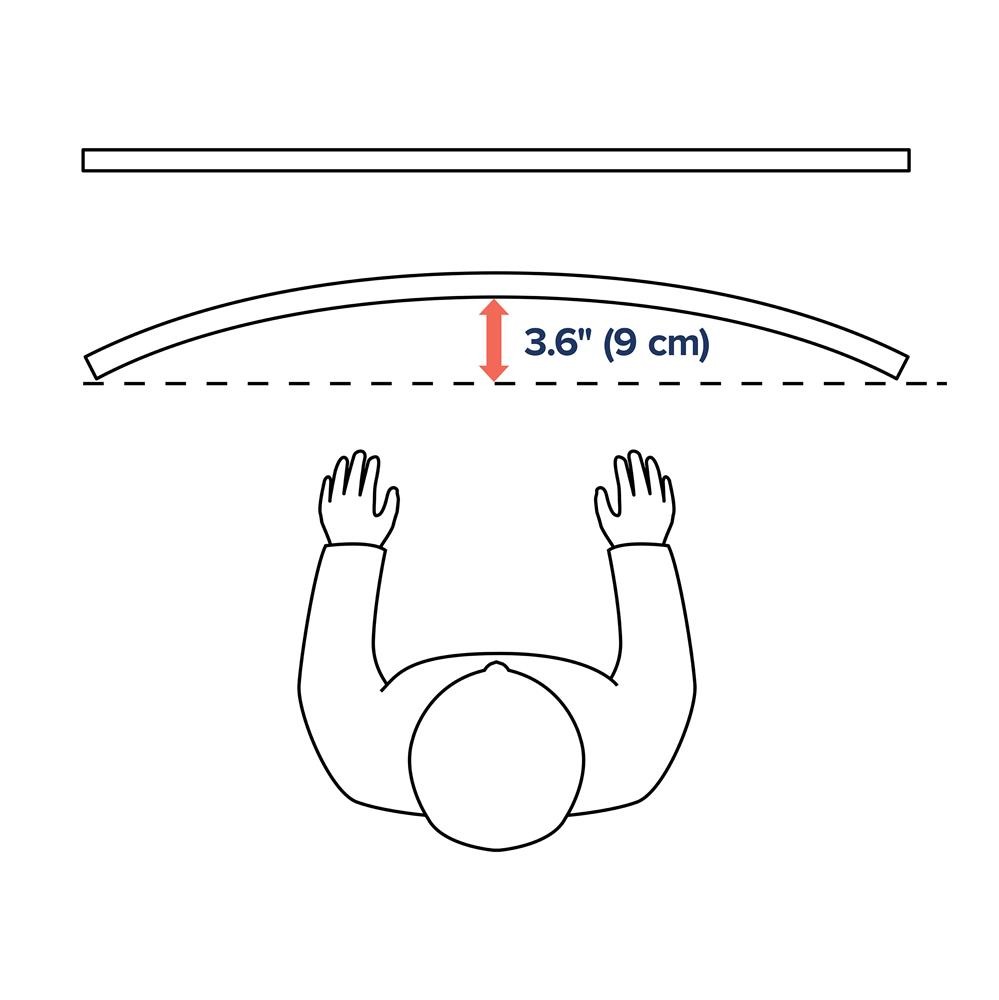

* Weight Capacity: Individual monitor weight = 4–20 lbs (1.8–9 kg). Total weight capacity = 8–40 lbs (3.6–18.1 kg). Monitor depth greater than 3.6" (9 cm) may diminish capacity

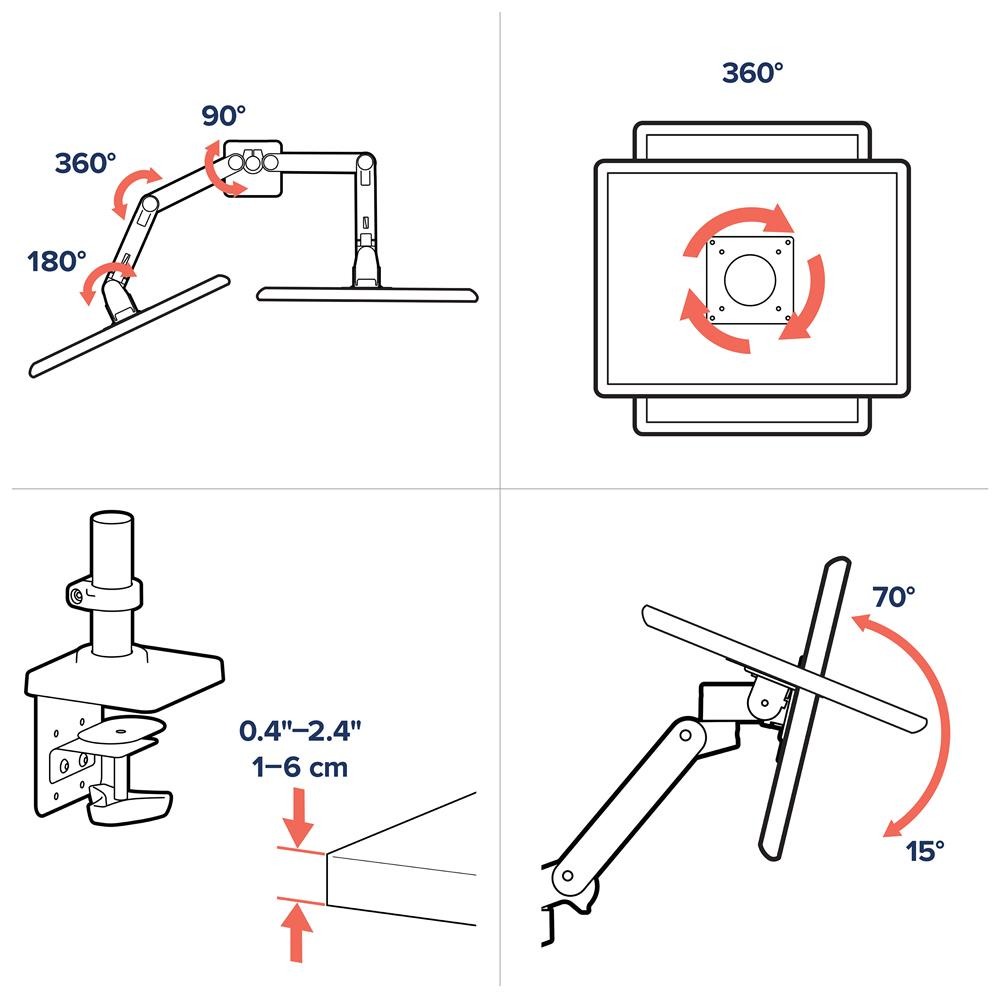

‡ Tilt Range: 70° backward, 15° forward
§ Overall side-to-side panning motion is 360°, with 3 turning points at base/extension (360°), extension/arm (360°), and arm/pivot (180°). Motion at the base/extension point can be restricted to 180° by engaging the built-in rotation stop

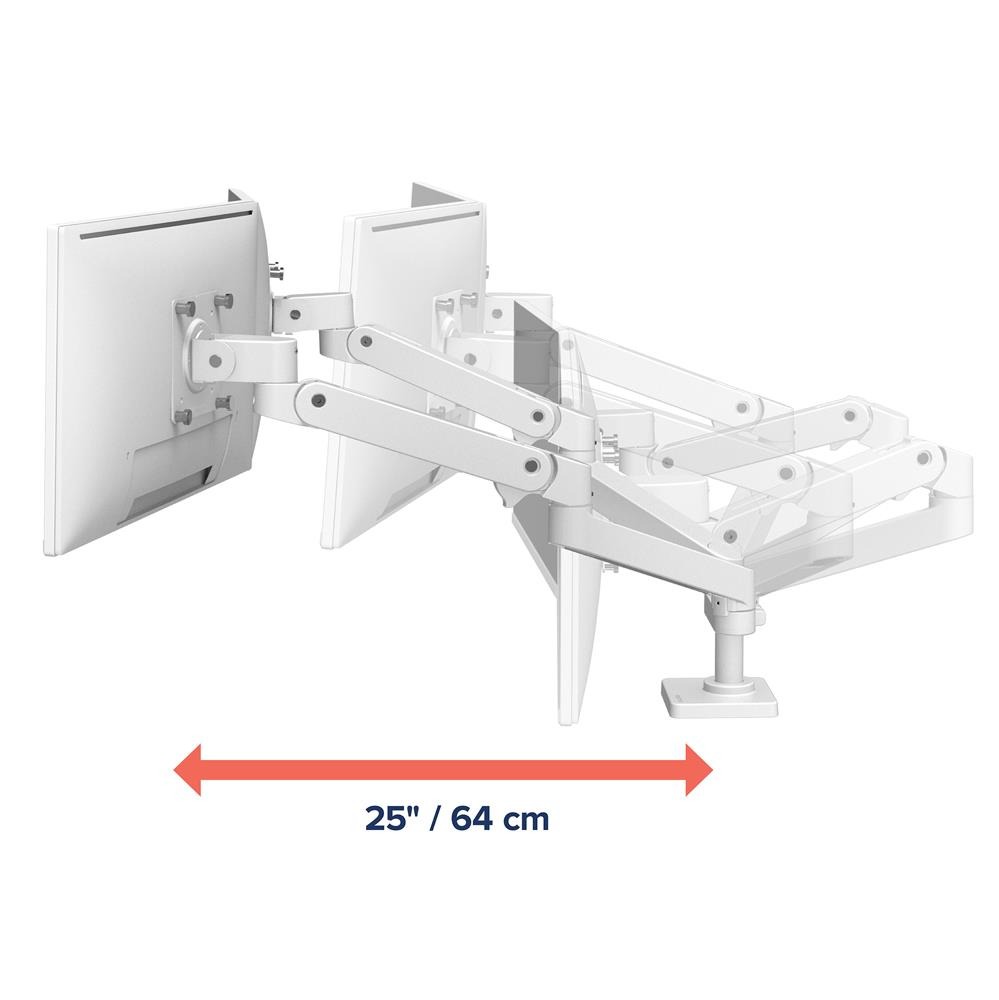

Extension Range: ≤ 25" (64 cm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Desk clamp attaches to surface edge 0.4" to 2.4" (10 to 60 mm) thick
