Fractal-Design Terra 機箱

產品介紹

Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.

• • Install your choice of powerful GPU up to 322 mm in length, in a space-saving 10.4 L case
• • Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
• • Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front

Elegantly crafted

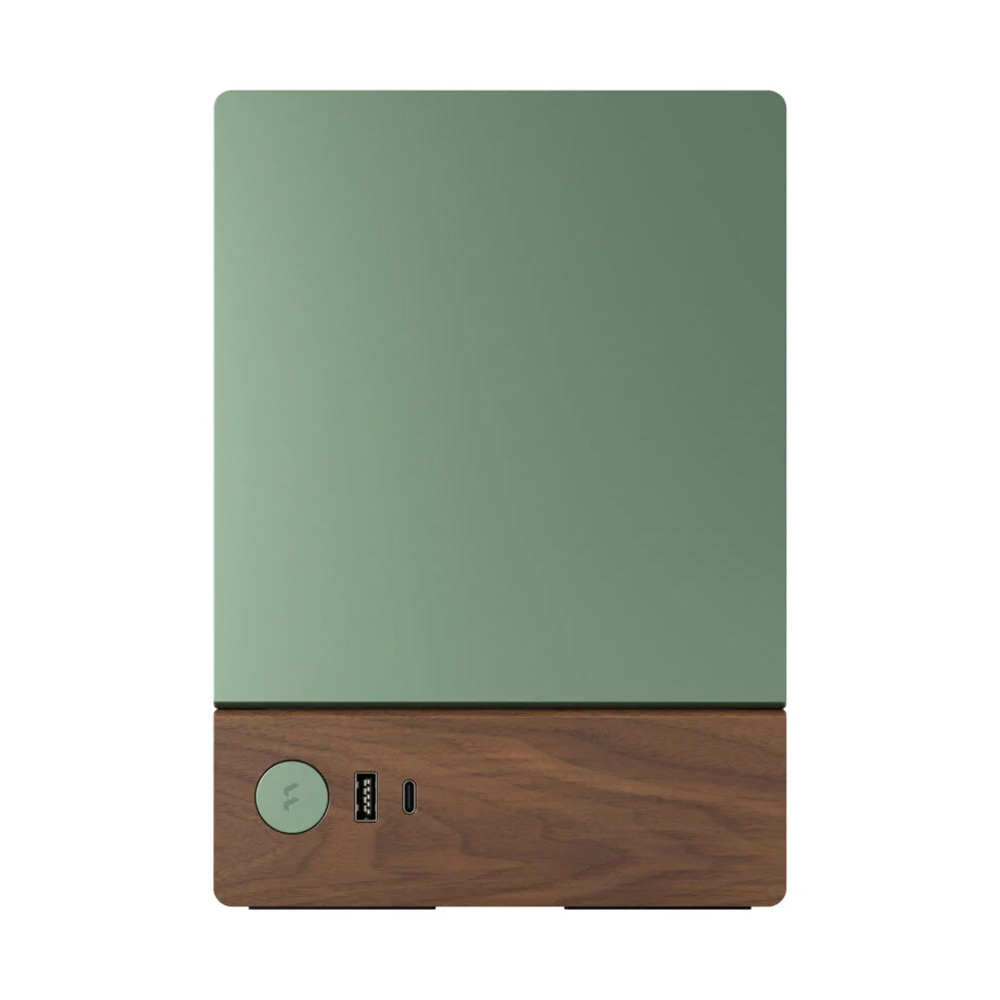

Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut

Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front

Make the most of natural airflow through the ventilated top, side and bottom panels

Engineered for SFF gaming

Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case

Get a head start on your build with the included PCIe 4.0 riser cable

Store up to two SSDs in the dedicated 2.5” drive mounts

Choose your accent

The Terra is available in your choice of three distinct anodized aluminum versions to perfectly complement and elevate your gaming space

Adjustable motherboard plate

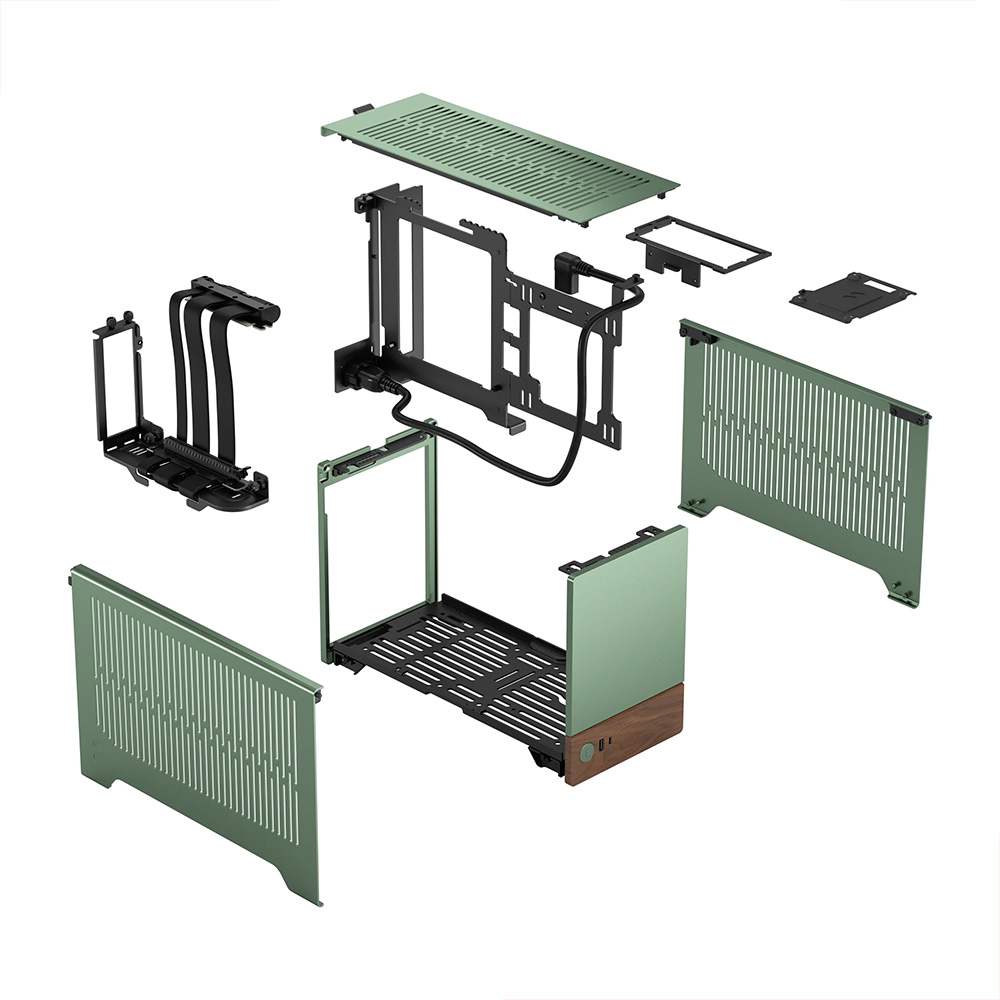

Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall

Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other

Natural material

Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.

產品規格

Dedicated 2.5" drive mounts 2 (included)

Expansion slots 3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)

Front interface 1x USB Type-C 20Gbps (USB 3.2 Gen 2x2), 1x USB Type-A 5Gbps (USB 3.0), Power Button

Total fan mounts 1x 120 mm

Bottom fan 1x 120 mm

Tool-less push-to-lock Both side panels and top panel (can also be locked with screws)

Compatibility

Motherboard compatibility mITX

Power supply type SFX-L/ SFX

PSU max length 130 mm

Side radiator 1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)

GPU max length 322 mm

GPU max width (if GPU height is lower than 131 mm)

72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)

GPU max width (if GPU height 131-145mm)

62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)

GPU max height

145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)

*CPU cooler max height

48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)

*Additional comment

Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.

Dimensions

Case dimensions (LxWxH) 343 x 153 x 218 mm

Package dimensions (LxWxH) 394 x 215 x 292 mm

Net weight 3.1 kg

Gross weight 4.0 kg

Volume 10.4 liter

Other

Package Contents Case, Accessory box, Manual

Warranty 2 Years
